VLAN 8 ports poe switch 2 Uplink 1 SFP 100Mbps

Home / Products / IP Transmission / 100Mbps POE Ethernet Switch / Detail

..
..
  • ..
  • ..
  • ..
  • ..

VLAN 8 ports poe switch 2 Uplink 1 SFP 100Mbps

.11 port switch with 8 port 100Mbit PoE Ports,2 Gigabit Uplink Port,1 Port Gigabit SFP Port
.PoE data & power transmission distance 100meters(100Mbps),250meters(10Mbps)
.15.4 watts power for each PoE port,PoE Standard: IEEE 802.3af
.Uplink port: 2 Gigabit Ethernet port,Transmission up to 100m,1 Gigabit Fiber Ports,Data transmission:depends on the optical module
.PoE Pin: 1/2+,3/6-
.Total Power:52V2.3A 120W
Description of this VLAN 8 ports poe switch 2 Uplink 1 SFP 100Mbps
8 ports PoE Ethernet Switch is a security surveillance Ethernet Switch which aims at Ethernet high definition surveillance and security system. The product fully combines the characteristics of security surveillance,provides fast packet forwarding ability and abundant backplane bandwidth,which ensures clear image and fluent transmission.ESD and surge protection circuit can improve product stability.
The product supports one key Extend mode,with VLAN function can restrain the network storm, protect the information security, prevent the viral transmission and cyber attack, fully satisfy the Ethernet video security surveillance system and Ethernet project needs.

Specification of this Each port 100 Mbit PoE Switch with 8+2+1 port


Item:10803EXPOE-BP120

Description

Power

Power Adapter Voltage

110-240V AC

Consumption

120W

Network Connector

Network Port

POE Ethernet Port

1~8 Port:10/100Mbps

Ethernet port

Uplink Port:10/100/1000Mbps
SFP Port:10/100/1000Mbps

Transmission Distance

1~8Port:

100Mbps:0~100m,10Mbps:250m

Uplink port:0~100m,

Transmission Medium

Cat5/5e/6 standard network cable

Network Switch

Network Standard

IEEE 802.3/802.3u, IEEE 802.3x,IEEE 802.1d

Switching Capacity

7.6Gbps

Packet Forwarding Rate

5.65Mpps

MAC Table

2K

Power Over Ethernet

POE Standard

IEEE 802.3af/at

POE Power Supply Type

End-Span(1/2+;3/6-)

PoE Power Consumption

af≤15.4W/30W (every port)

LED Status Indicator

VLAN/Extend

POE Ethernet LED Indicator

Power: 1 red light indicates that the power normal work

POE:8 yellow lights indicate that the POE is power on

Ethernet:10 green lights indicate that the Ethernet link and act;

Environmental

Working temperature

0℃~55℃

Relative Humidity

20~95%

Storage temperature

-20℃~70℃

Mechanical

Dimension (L×W×H)

210 mm *120 mm *41mm

Color

Black

Weight

723g

Stability

MTBF

>30000h

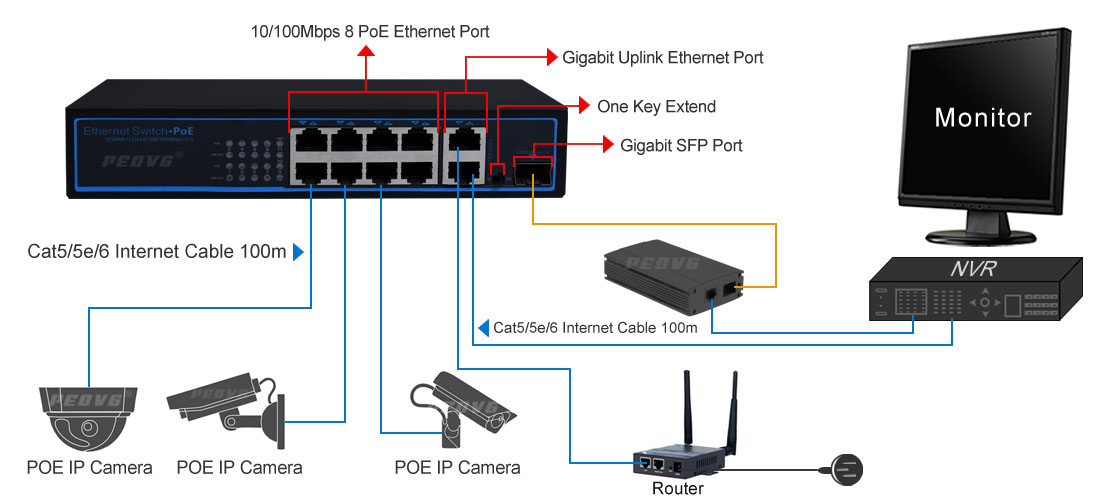

Application of this PoE Switch with 8+2+1 port

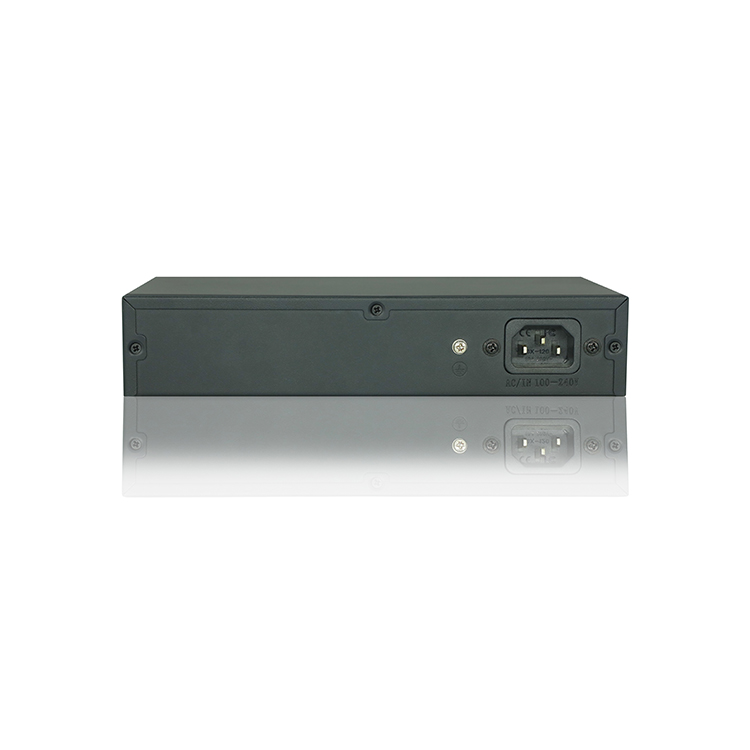

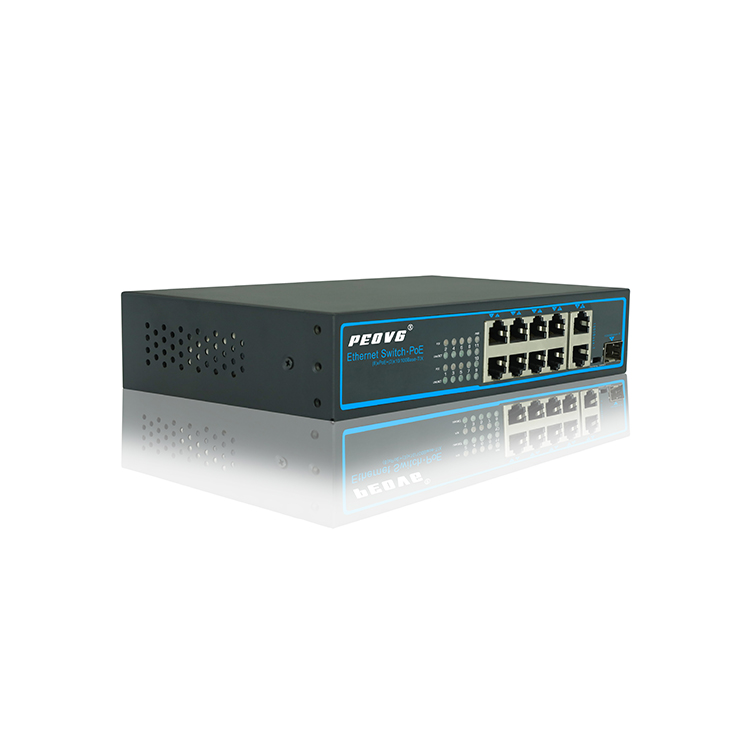

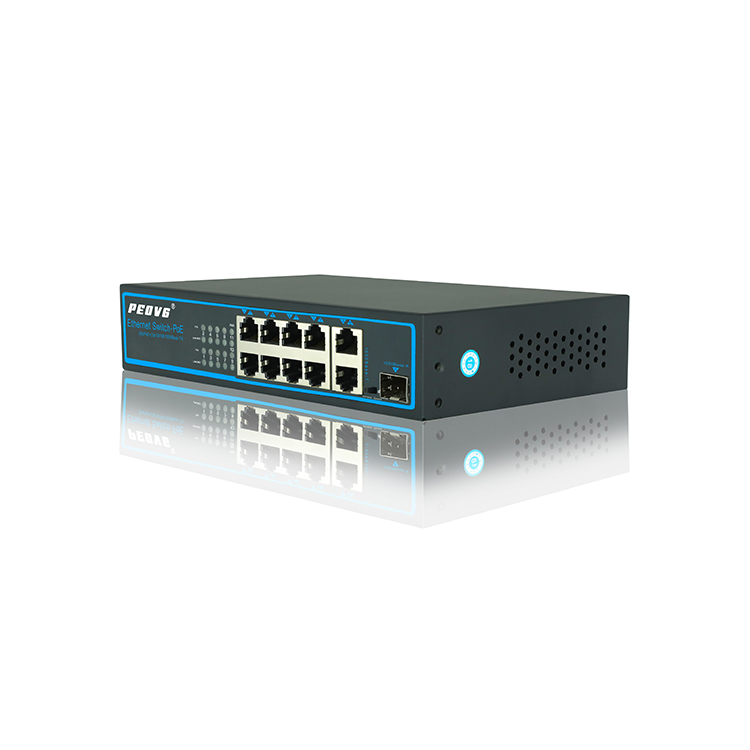

Pictures of this Each port 100 Mbit PoE Switch with 8 POE +2 Uplink+1 SFP port
