Unmanage 4 port POE Switch Hi PoE 120W

Home / Products / IP Transmission / 100Mbps POE Ethernet Switch / Detail

..
..
  • ..
  • ..
  • ..
  • ..

Unmanage 4 port POE Switch Hi PoE 120W

 .4 PoE ports,2 uplink port;10/100Mbps POE switch
.Supports port auto-flip (Auto MDI/ MDIX);
.Adopts store and forward architecture;
.IEEE 802.3af/at,total power:120 watts
.With anti theft lock;
.Protection:Excellent anti thunder,anti static and anti-interference;
.PoE data & power transmission distance 100meters(100Mbps),250meters(10Mbps)
.External power adaptor, fanless, natural cooling, small, compact and quiet design, suitable for desktop or wall
Description of this 4 POE 2 Uplink 4 POE 2 Uplink Unmanage POE Switch Desktop VLAN
10402POE is unmanage mini POE Ethernet switch for CCTV/CFTV security HD / IP / IT system.Total power 65W / 120W are vailable,it is fully combines the characteristics,provides fast packet forwarding ability and abundant backplane bandwidth,which make sure clear image and good transmission.It supports one key Camera model,with VLAN function can restrain the network storm,protect the information security,avoid the viral transmmission and cyber attack.

What other advantages of our poe switch?:

All POE Ports are 100% full power.

All RJ45 Ports is pure copper with shield.

First-class SMT raw materials.

Wide Voltage: 110V~200V (Auto-ID)


Specification of this 4 POE 2 Uplink Unmanage Desktop POE Switch VLAN


Item:10402POE/10402POE-AT

Description

Power

Power Adapter Voltage

48-57V DC

Consumption

65W/120W

Network

Connector

Network Port

POE Ethernet Port

1-4 port :10/100Mbps (0-100Meters)

10Mbps:0-250Meters

Ethernet Port

2*Uplink port:10/100Mbps

Transmission Distance

1~4 Port : 100Mbps:0 ~ 100m

5-6 Uplink Port : 0 ~ 100m

Transmission Medium

Cat5/5e/6 standard network cable

Network

Switch

Network Standard

IEEE 802.3/802.3u, IEEE 802.3x,

IEEE 802.1p, IEEE 802.3az

Switching Capacity

1Gbps

Packet Forwarding Rate

0.74Mpps

MAC Table

2K

Power Over

Ethernet

PoE Standard

IEEE 802.3af/at

PoE Power Supply Type

End-Span(1/2+;3/6-)

PoE Power Consumption

af≤15.4W/30W(every port)

LED Status

Indicator

VLAN/Extend

PoE Ethernet

LED Indicator

Indicator

Power: 1 red light indicates that the

power normal work;

POE: 4 yellow lights indicate that the

POE is power on;

Ethernet: 5 green lights indicate that

the Ethernet link and act;

Surveillance Module Light

1pcs(Green), green indicates Camera

Environmental

Working temperature

0℃~55℃

Relative Humidity

20~95%

Storage temperature

-20℃~70℃

Mechanical

Dimension (L×W×H)

135mm*89mm*27mm

Color

Black

Weight

762g

Stability

MTBF

>30000h



Application of this 4 POE 2 Uplink Unmanage Desktop POE Switch VLAN One Key CCTV

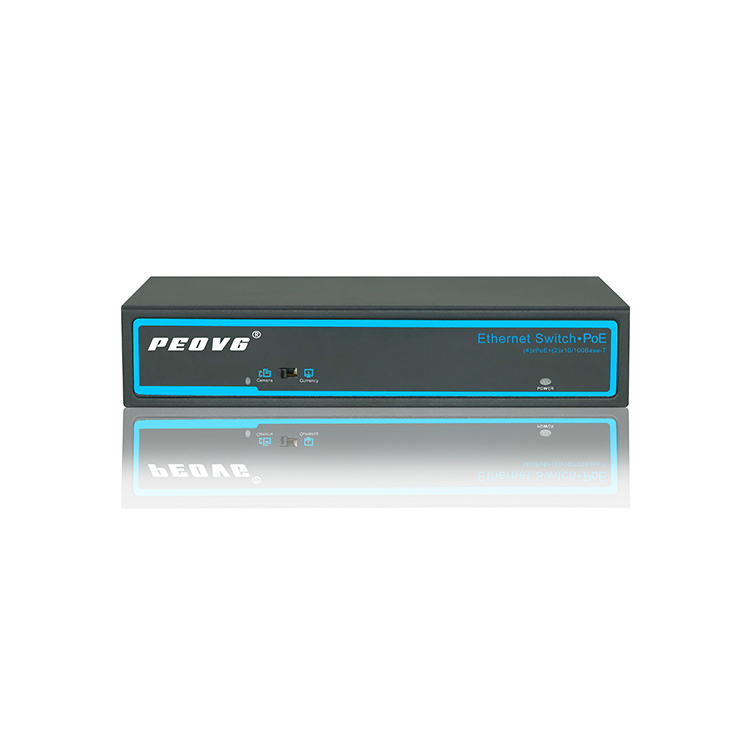

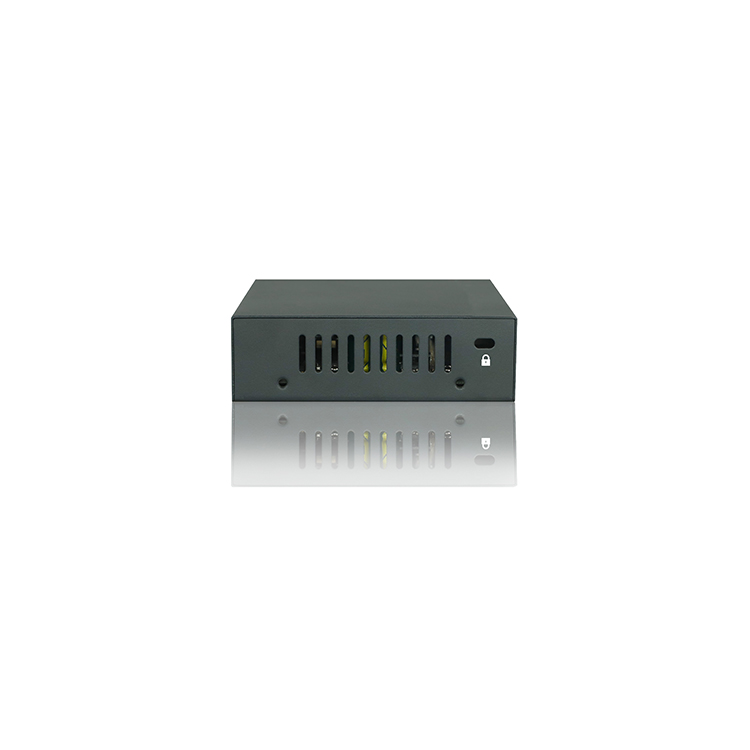

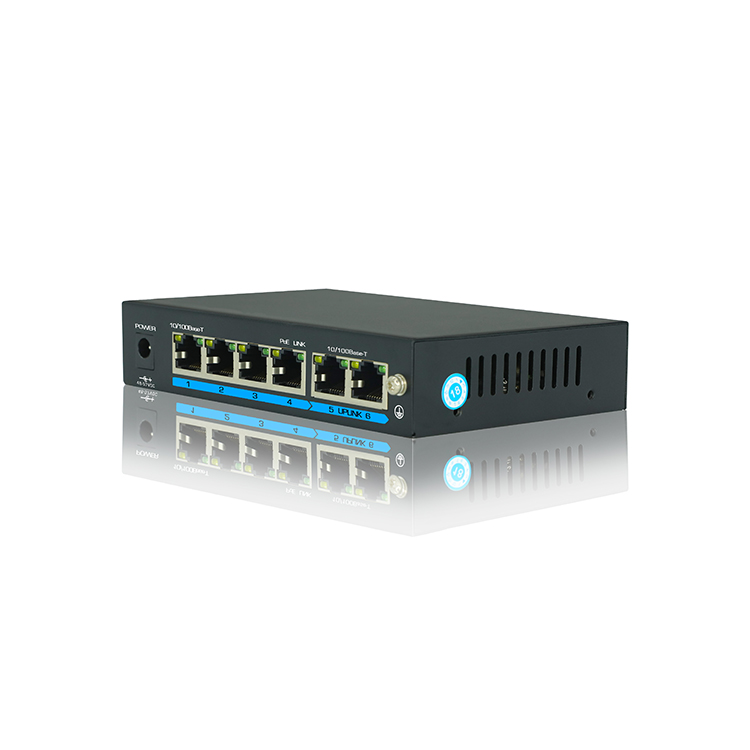

Pictures of this 4 POE 2 Uplink Unmanage Desktop POE Switch VLAN One Key CCTV
