100Mbps 4 port POE switch 30w IEEE802.at

.4 PoE ports,1 uplink port;10/100Mbps POE switch
.Supports port auto-flip (Auto MDI/ MDIX);
.Adopts store and forward architecture;
.IEEE 802.3af/at,Maximum 30 watts power for each PoE port;

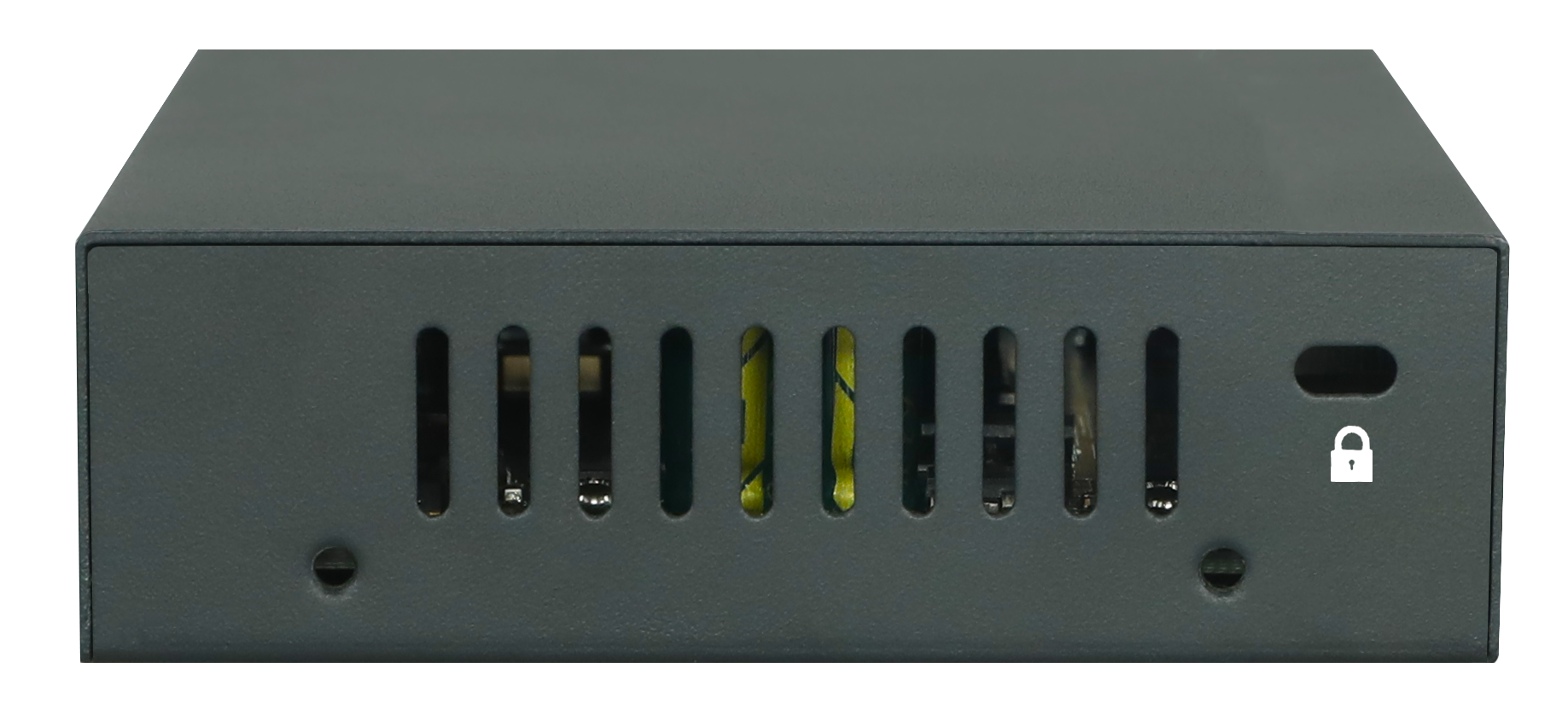

.With anti theft lock;
.Protection:Excellent anti thunder,anti static and anti-interference;
.External power adaptor, fanless, natural cooling, small, compact and quiet design, suitable for desktop or wall;
Description of this Unmanaged 100Mbps 4 Ports PoE Switch 120 Watts IEEE802.3AT

10401POE-AT is specialized unmanaged POE switch designed for CCTV video surveillance and network IP project system.It provides 100Mbps Ethernet ports and 1 Uplink port,support VLAN function,which it can prevent whole system from broadcast storm so that make the data transfer safer.

10401POE-AT can meet customer's general demands,with POE function,suitable for high-definition IPC's internet access,complies with IEEE802.3af/at standards,simpliefy wiring,saving installing cost.


What other advantages of our poe switch?:

All POE Ports are 100% full power.

All RJ45 Ports is pure copper with shield,ROHS processing

First-class SMT raw materials.

Wide Voltage: 110V~200V (Auto-ID)


Specification of this Unmanaged 100Mbps 4 Ports PoE Switch 120 Watts IEEE802.3AT


Item:10401POE-AT

Description

Power

Power Adapter Voltage

48-57V DC

Consumption

120W

Network

Connector

Network Port

POE Ethernet Port

1-4 port:10/100Mbps

Ethernet Port

Uplink port:10/100Mbps

Transmission Distance

1~4 Port : 100Mbps:0 ~ 100m

Uplink Port : 0 ~ 100m

Transmission Medium

Cat5/5e/6 standard network cable

Network

Switch

Network Standard

IEEE 802.3/802.3u, IEEE 802.3x,

IEEE 802.1p, IEEE 802.3az

Switching Capacity

1Gbps

Packet Forwarding Rate

0.74Mpps

MAC Table

1K

Power Over

Ethernet

PoE Standard

IEEE 802.3af,IEEEE802.3at

PoE Power Supply Type

End-Span(1/2+;3/6-) (Standard)

PoE Power Consumption

At≤30W(Max every port)

LED Status

Indicator

VLAN/Extend

PoE Ethernet

LED Indicator

Indicator

Power: 1 red light indicates that the

power normal work;

POE: 4 yellow lights indicate that the

POE is power on;

Ethernet: 5 green lights indicate that

the Ethernet link and act;

Surveillance Module Light

1pcs(Green), green indicates Camera

Environmental

Working temperature

0℃~55℃

Relative Humidity

20~95%

Storage temperature

-20℃~70℃

Mechanical

Dimension (L×W×H)

135mm*89mm*27mm

Color

Black

Weight

255g

Stability

MTBF

>30000h

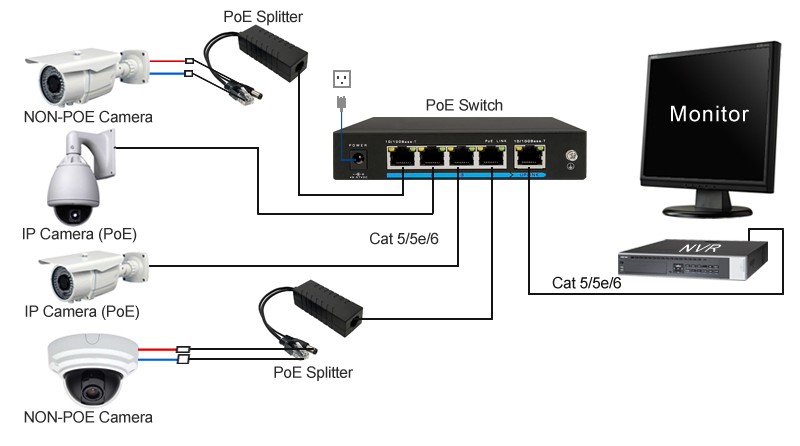

Application of this Unmanaged 100Mbps 4 Ports PoE Switch 120 Watts IEEE802.3AT

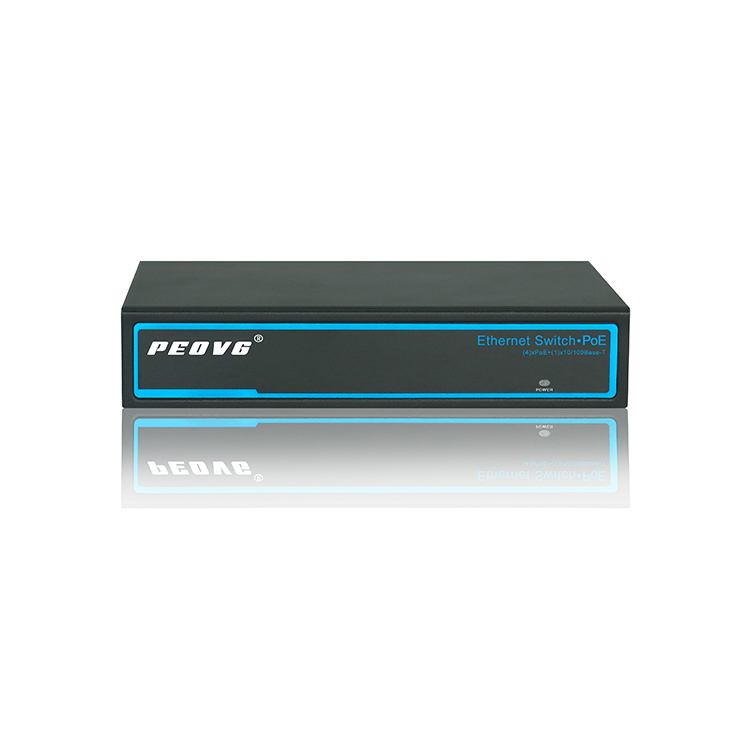

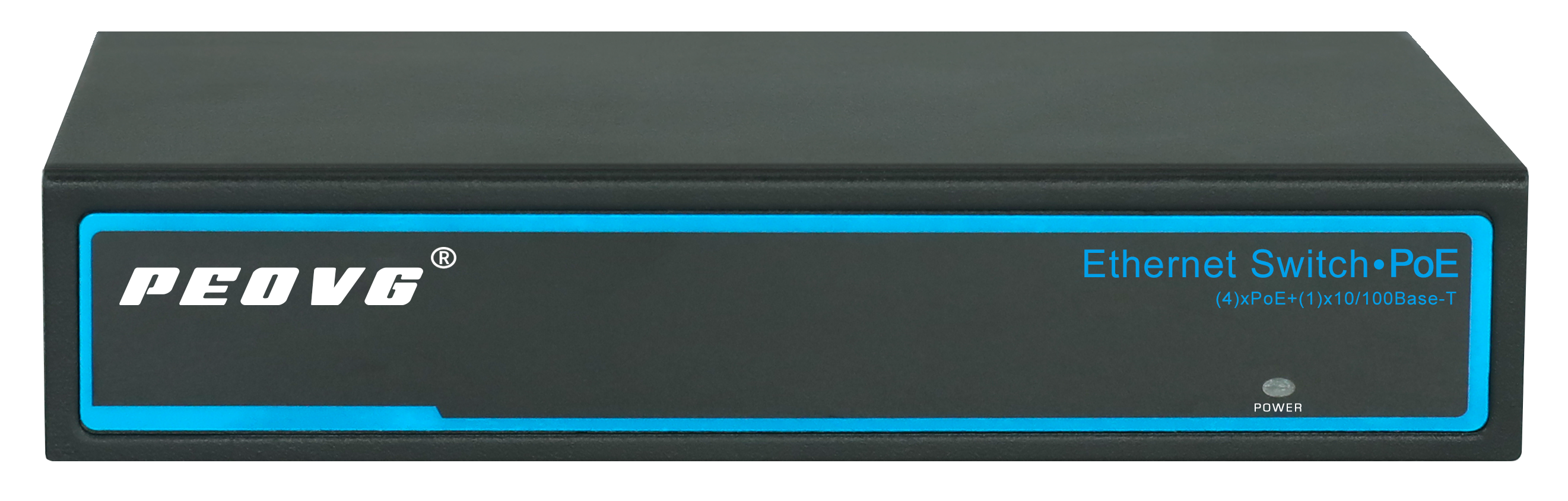

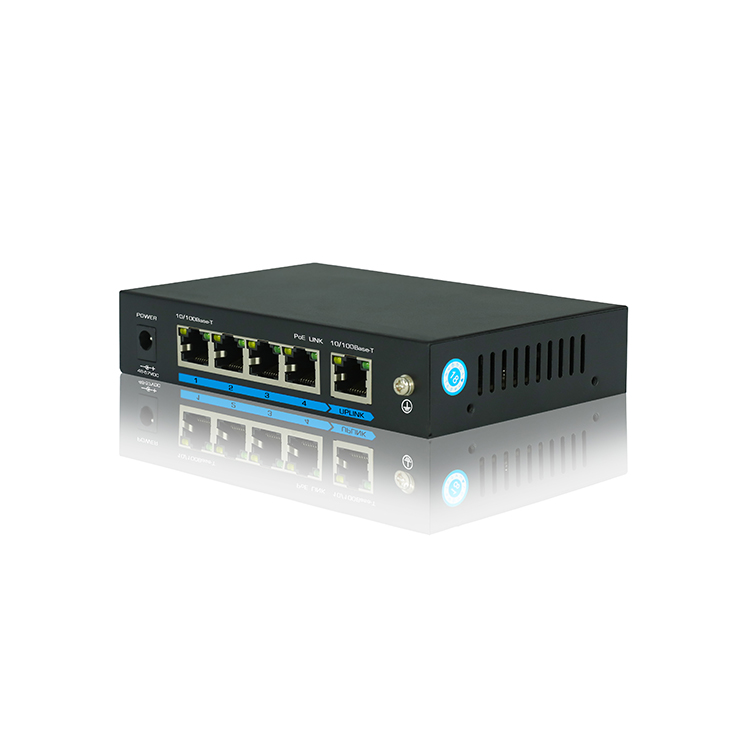

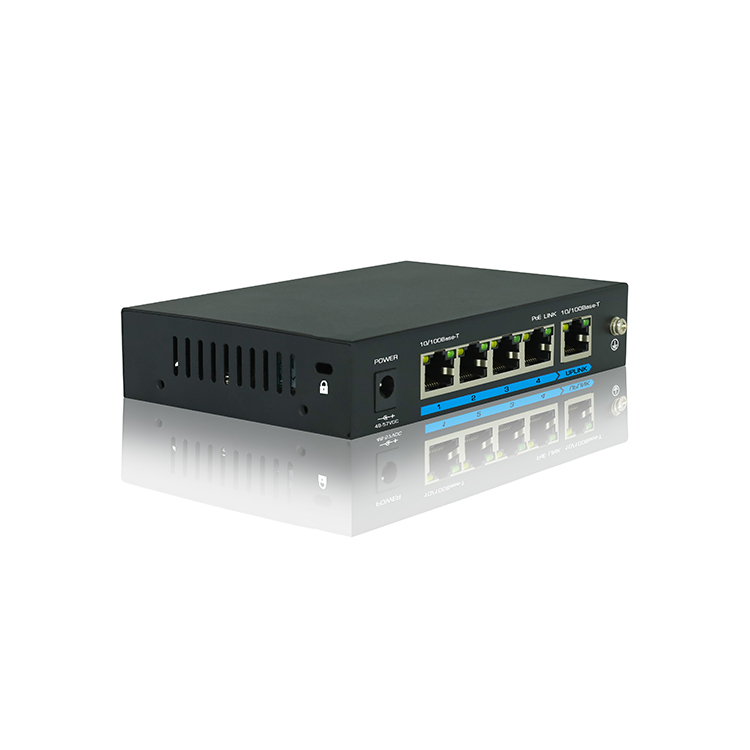

Pictures of this Unmanaged 100Mbps 4 Ports PoE Switch 120 Watts IEEE802.3AT
