6 Port PoE Switch 2 Uplink Ports 75W 100Mbps

Home / Products / IP Transmission / 100Mbps POE Ethernet Switch / Detail

..
..
  • ..
  • ..
  • ..
  • ..

6 Port PoE Switch 2 Uplink Ports 75W 100Mbps

.10/1000Mbps 4 port POE ports,2 Uplink Port
.Standard:IEEE802.3af,total Power 75W
.PoE data & power transmission distance 100meters(100Mbps),250meters(10Mbps)
.VLAN,suppressing network storms,which protects information security, prevents virus propagation and network attacks.
.Fanless,Natural Cooling,Small,compact and quiet design
.OEM/ODM supported
 Description of this 10 100Mbps 6 Port 75W PoE Switch With 2 Uplink Ports:

The 10402POE-BP75 is security monitoring dedicated transmission switch, the distance is up to 250M.And is unmanaged Ethernet switch with PoE capability. The product adopts four 100M PoE network ports, two 100M electrical ports,and supports IEEE802.3 af power supply standard. Strong lightning protection and electrostatic protection to improve product stability.


What other advantages of our poe switch?:

All POE Ports are 100% full power.

All RJ45 Ports is pure copper with shield,ROHS processing

First-class SMT raw materials.

Wide Voltage: 110V~200V (Auto-ID)

Specification of this 10 100Mbps 6 Port 75W PoE Switch With 2 Uplink Ports


Item

Description

Power

Power Adapter Voltage

110-240V AC

Consumption

75W

Network Connector

Network Port

POE Ethernet Port

1~4 Port:10/100Mbps

Ethernet port

Uplink Port:10/100Mbps

Transmission Distance

1~4Port:

100Mbps:0~100m  10Mbps:0~250m

Uplink port:0~100m

Transmission Medium

Cat5/5e/6 standard network cable

Network Switch

Network Standard

IEEE 802.3/802.3u, IEEE 802.3x,IEEE 802.1d

Switching Capacity

1Gbps

Packet Forwarding Rate

0.74Mpps

MAC Table

2K

Power Over Ethernet

POE Standard

IEEE 802.3af

POE Power Supply Type

End-Span(1/2+;3/6-)

PoE Power Consumption

af≤15.4W(every port)

LED Status Indicator

VLAN/Extend

POE Ethernet LED

 Indicator

Power: 1 red light indicates that the power normal work

POE: 4 yellow lights indicate that the POE is power on

Ethernet: 6 green lights indicate that the Ethernet link and act;

Environmental

Working temperature

0℃~55℃

Relative Humidity

20~95%

Storage temperature

-20℃~70℃

Mechanical

Dimension (L×W×H)

201 mm *120 mm *41mm

Color

Black

Weight

605g

Stability

MTBF

>30000h

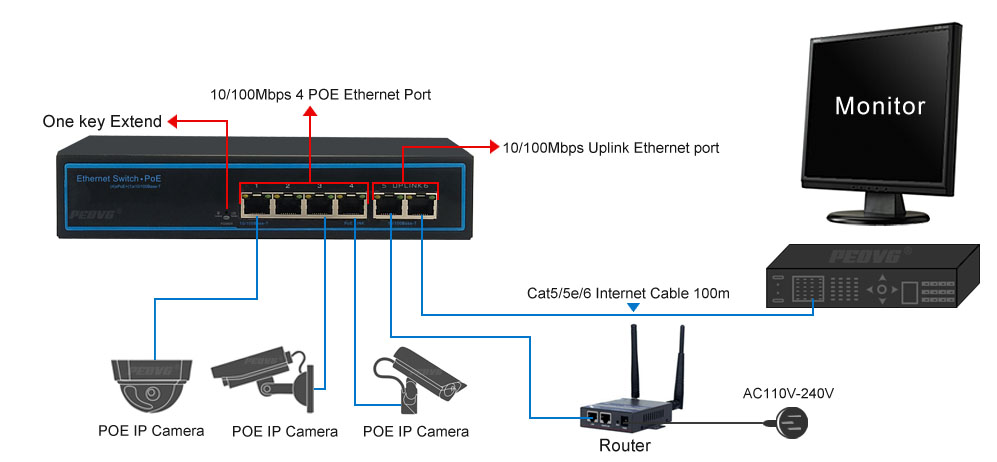

Application of this 10 100Mbps 6 Port 75W PoE Switch With 2 Uplink Ports

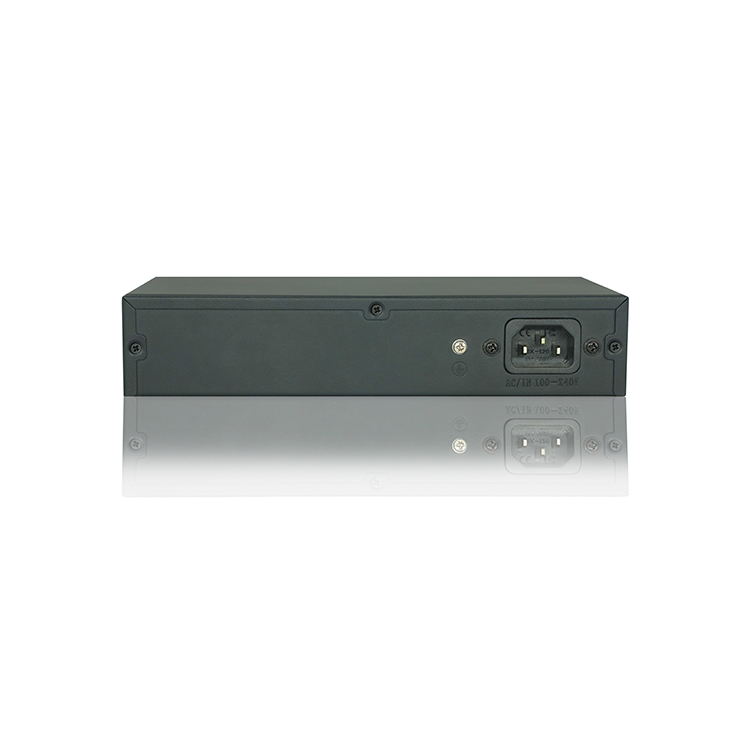

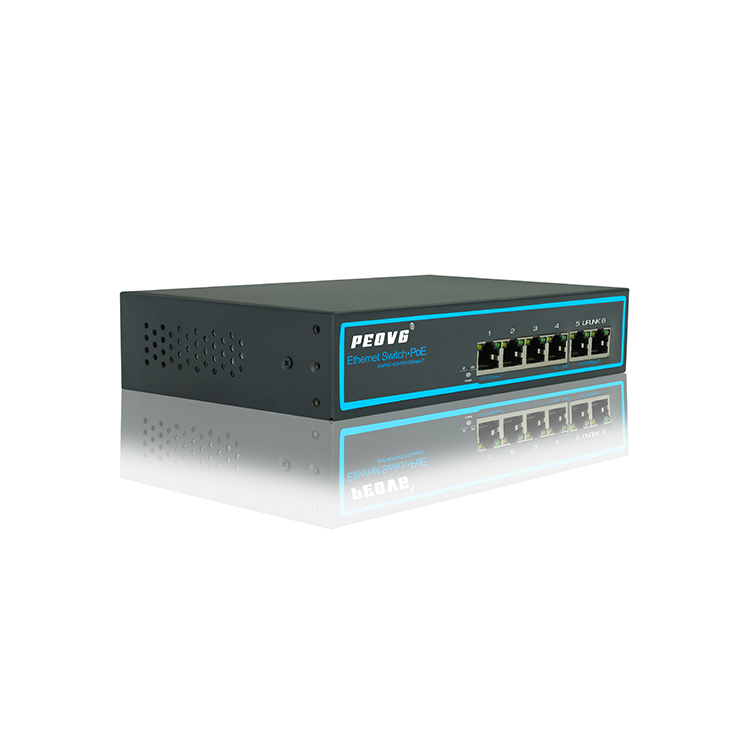

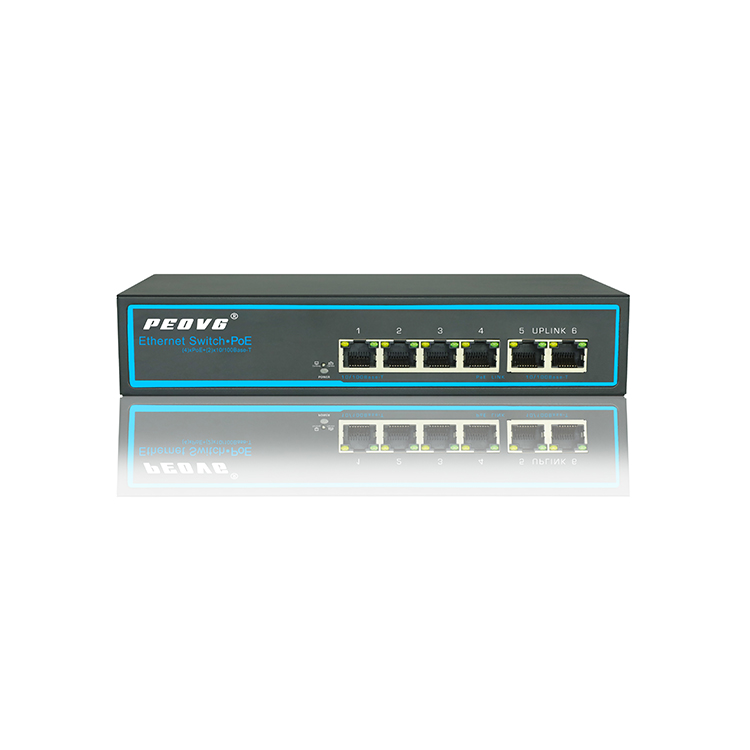

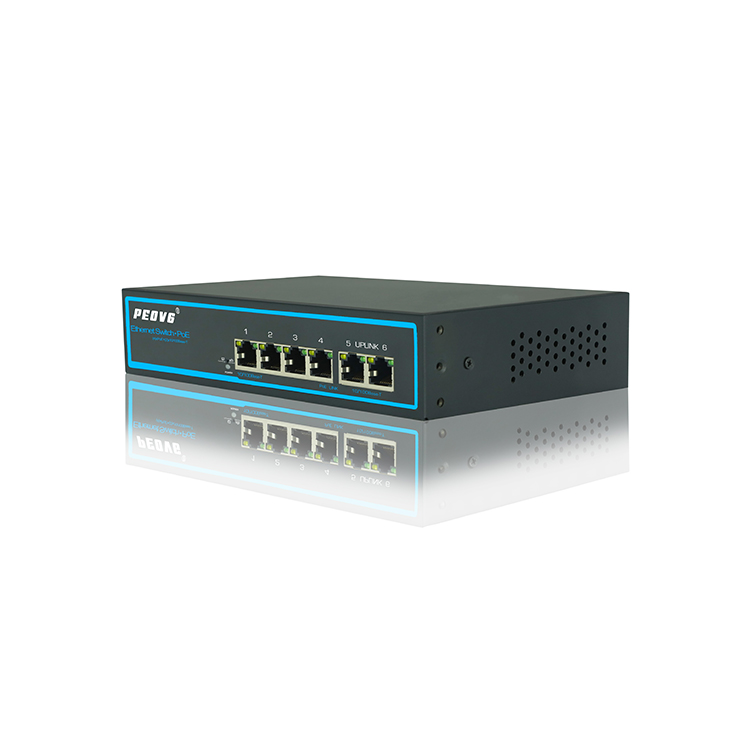

Pictures of this 10 100Mbps 6 Port 75W PoE Switch With 2 Uplink Ports
