Mini 4 port POE Ethernet switch 10/100M 65W

Home / Products / IP Transmission / 100Mbps POE Ethernet Switch / Detail

..
..
  • ..
  • ..
  • ..
  • ..

Mini 4 port POE Ethernet switch 10/100M 65W

.4 PoE ports,1 uplink port;10/100Mbps POE switch
.Supports port auto-flip (Auto MDI/ MDIX);
.Adopts store and forward architecture;
.IEEE 802.3af,total power:65W;
.With anti theft lock;
.Protection:Excellent anti thunder,anti static and anti-interference;
.External power adaptor, fanless, natural cooling, small, compact and quiet design, suitable for desktop or wall;

Description of this Unmanaged Mini 4 port POE Ethernet switch 10/100M 65W

This switch 10401POE is a compact 4 port POE switch,4 ports PoE Ethernet Switch is security surveillance Ethernet Switch which aims at Ethernert high definition surveillance and security system.

The product fully combines the characteristics of security surveillance, provides fast packet forwarding ability and abundant backplane bandwidth, which ensures clear image and fluent transmission.The product supports one key Camera model, with VLAN function can restrain the network storm, protect the information security, prevent the viral transmission and cyber attack, fully satisfy the ethernet video security surveillance system and Ethernet project needs.


What other advantages of our poe switch?:

All POE Ports are 100% full power.

All RJ45 Ports is pure copper with shield,ROHS processing

First-class SMT raw materials.

Wide Voltage: 110V~200V (Auto-ID)

Specification of this 4 Ports 100Mbps POE Switch External Power Adaptor


Item

Description

Power

Power Adapter Voltage

48-57V DC

Consumption

65W

Network

Connector

Network Port

POE Ethernet Port

1-4 port:10/100Mbps

Ethernet Port

Uplink port:10/100Mbps

Transmission Distance

1~4 Port : 100Mbps:0 ~ 100m

Uplink Port : 0 ~ 100m

Transmission Medium

Cat5/5e/6 standard network cable

Network

Switch

Network Standard

IEEE 802.3/802.3u, IEEE 802.3x,

IEEE 802.1p, IEEE 802.3az

Switching Capacity

1Gbps

Packet Forwarding Rate

0.74Mpps

MAC Table

1K

Power Over

Ethernet

PoE Standard

IEEE 802.3af

PoE Power Supply Type

End-Span(1/2+;3/6-)

PoE Power Consumption

af≤15.4W(every port)

LED Status

Indicator

VLAN/Extend

PoE Ethernet

LED Indicator

Indicator

Power: 1 red light indicates that the

power normal work;

POE: 4 yellow lights indicate that the

POE is power on;

Ethernet: 5 green lights indicate that

the Ethernet link and act;

Surveillance Module Light

1pcs(Green), green indicates Camera

Environmental

Working temperature

0℃~55℃

Relative Humidity

20~95%

Storage temperature

-20℃~70℃

Mechanical

Dimension (L×W×H)

135mm*89mm*27mm

Color

Black

Weight

255g

Stability

MTBF

>30000h


Application of this 4 Ports 100Mbps POE Switch External Power Adaptor

CCTV Security Monitoring System,Network Communications industrial,CFTV system,Alarm control,Transportation industrial,Multimedia Network Teaching System,Medical Monitoring Display System,Industrial Automation Control System,securities, financial information display system,Remote Network Server Monitoring,Department Store Security,Casino Security,Hospitals, Airports and banks,School Campuses

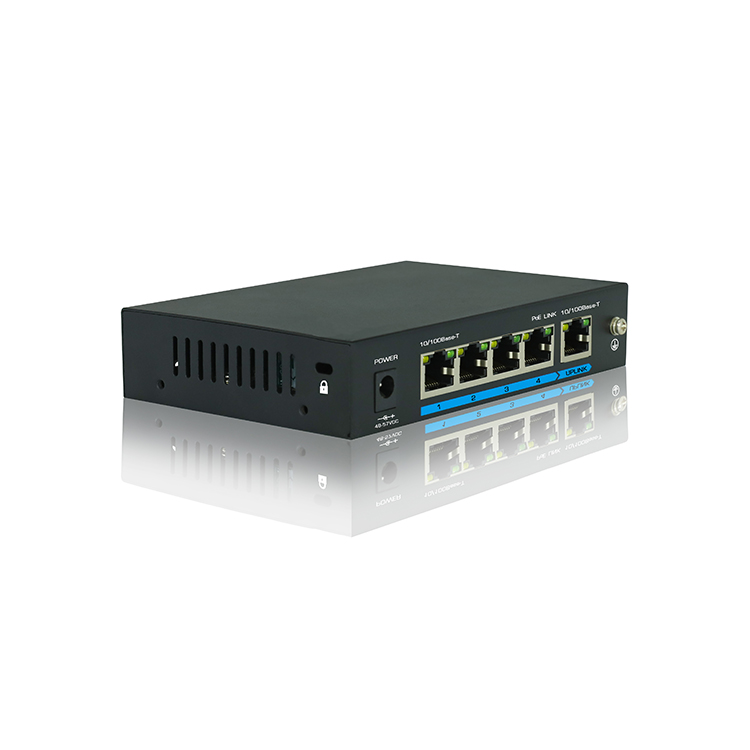

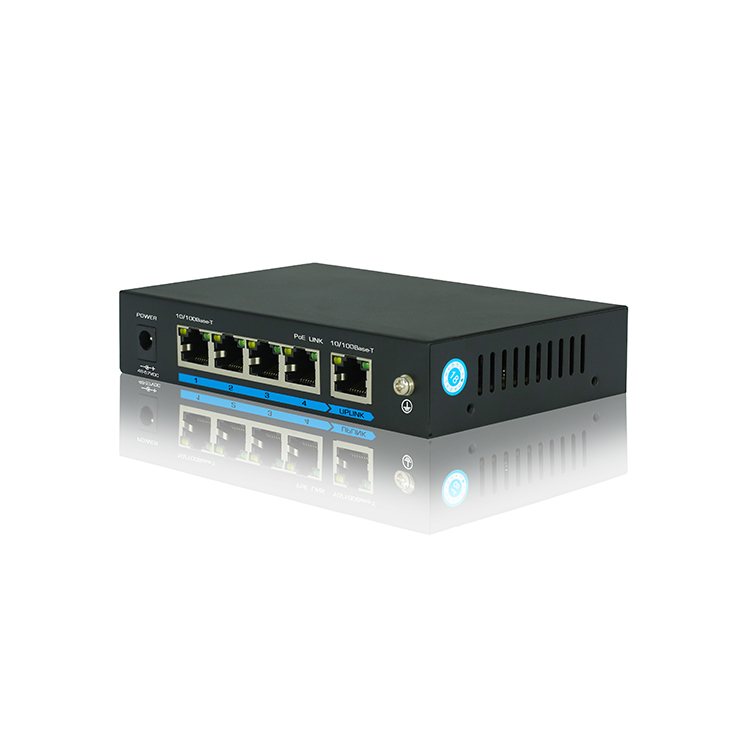

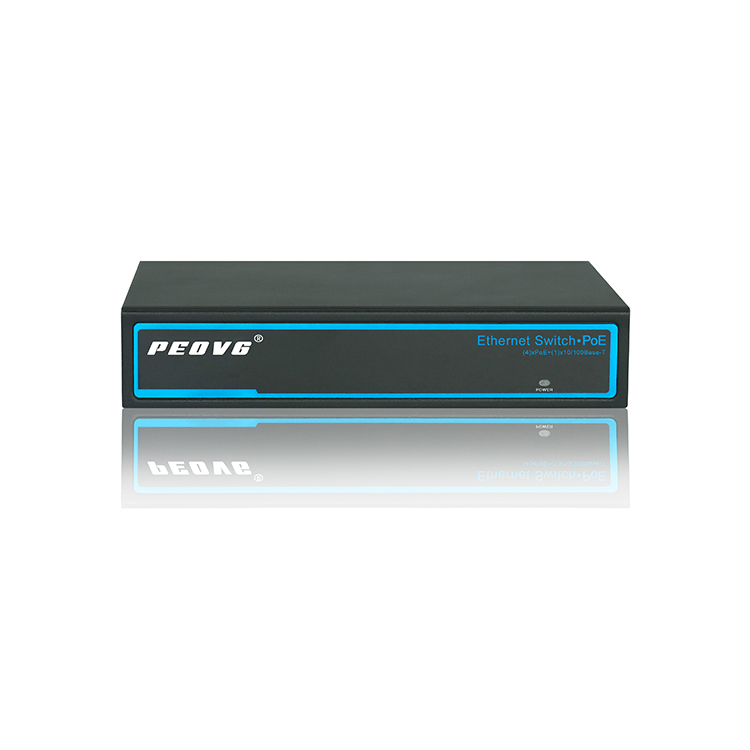

Pictures of this 4 Ports 100Mbps POE Switch External Power Adaptor
