8 Ports POE Ethernet Switch 100Mbps CE

Home / Products / IP Transmission / 100Mbps POE Ethernet Switch / Detail

..
..
  • ..
  • ..
  • ..
  • ..

8 Ports POE Ethernet Switch 100Mbps CE

.8 PoE ports,1 uplink port;10/100Mbps POE switch;
.Supports port auto-flip (Auto MDI/ MDIX);
.Adopts store and forward architecture;
.IEEE 802.3af/at,total power:120 watts;
.With anti theft lock;
.Protection:Excellent anti thunder,anti static and anti-interference;
.PoE data & power transmission distance 100meters(100Mbps),250meters(10Mbps);
.External power adaptor, fanless, natural cooling, small, compact and quiet design, suitable for desktop or wall;
Description of this Top Sales 8 Ports POE Ethernet Switch 100Mbps CE FCC Factory
10801POE providing 8-Port PoE in-line power interfaces,it can easily build a power centrally-controlled IP phone, IP Camera system and Wireless AP group for the enterprise.

This 8 Ports PoE Ethernet Switch is an unmanaged Ethernet switch designed for Ethernet access and PoE applications. It provides 8 Megabit PoE ports, and 2 100Mbps RJ-45 Uplink.it support 802.3af/at standard and feature Max 30W PoE power output of each single port,Max 120W of whole machine. It can be widely used in security surveillance, hotels, schools, and SMB engineering and other occasions.

For example,up to 8 PoE IP cameras can be installed around the corner in the company for surveillance demands or up to 8 PoE Wireless AP to build a wireless roaming environment in the office.Without the power-socket limitation, the Switch makes the installation of cameras or Wireless AP more easily and efficiently.

What other advantages of our poe switch?:

All POE Ports are 100% full power.

All RJ45 Ports is pure copper with shield.

First-class SMT raw materials.

Specification of this Top Sales 8 Ports POE Ethernet Switch 100Mbps CE FCC Factory


Item:10801POE

Description

Power

Power Adapter Voltage

48-57V DC

Total power

120W

Network

Connector

Network Port

POE Ethernet Port

1-8 port:10/100Mbps

Ethernet Port

Uplink port:10/100Mbps

Transmission Distance

1~8 Port : 100Mbps:0 ~ 100m

1~8 Port : 10Mbps:0 ~ 250m

Uplink Port : 0 ~ 100m

Transmission Medium

Cat5/5e/6 standard network cable

Network

Switch

Network Standard

IEEE 802.3/802.3u, IEEE 802.3x,

IEEE 802.1p, IEEE 802.3az

Switching Capacity

1.8Gbps

Packet Forwarding Rate

1.34Mpps

MAC Table

2K

Power Over

Ethernet

PoE Standard

IEEE 802.3af

PoE Power Supply Type

End-Span(1/2+;3/6-)

PoE Power Consumption

af≤15.4W(every port)

LED Status

Indicator

VLAN/Extend

PoE Ethernet

LED Indicator

Indicator

Power: 1 red light indicates that the

power normal work;

POE: 8 yellow lights indicate that the

POE is power on;

Ethernet: 9 green lights indicate that

the Ethernet link and act;

Surveillance Module Light

1pcs(Green), green indicates Camera

Environmental

Working temperature

0℃~55℃

Relative Humidity

20~95%

Storage temperature

-20℃~70℃

Mechanical

Dimension (L×W×H)

208mm*96mm*27mm

Color

Black

Weight

762g

Stability

MTBF

>30000h


Application of this Top Sales 8 Ports POE Ethernet Switch 100Mbps CE FCC Factory

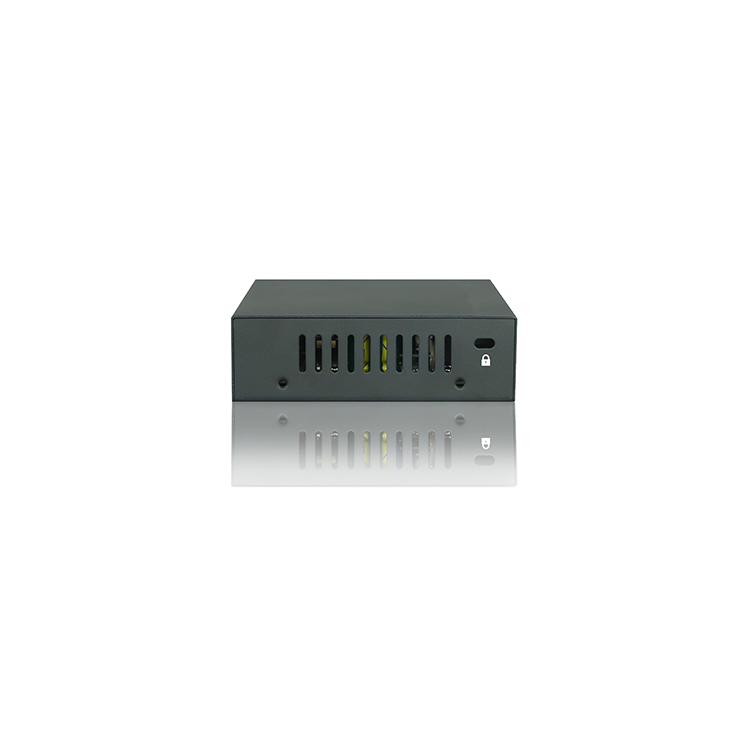

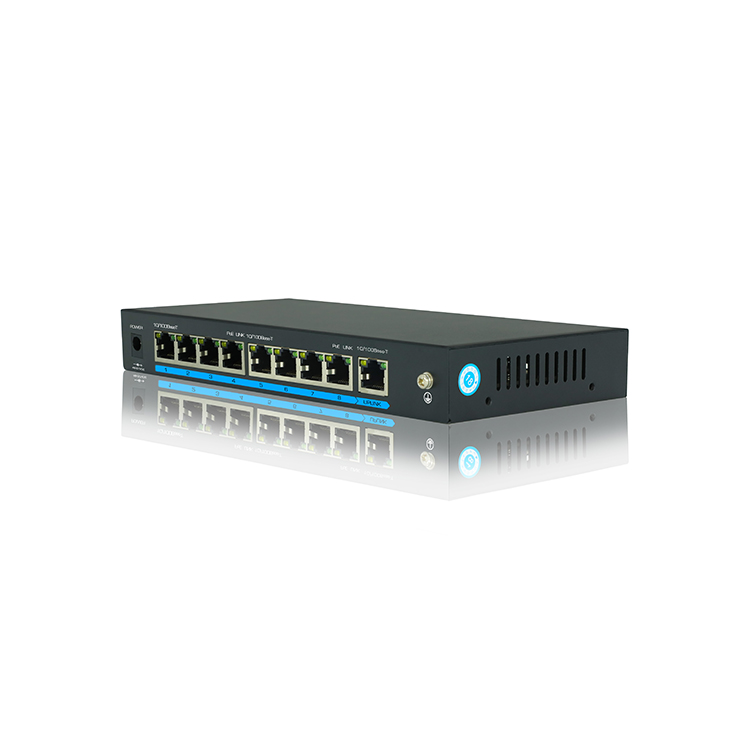

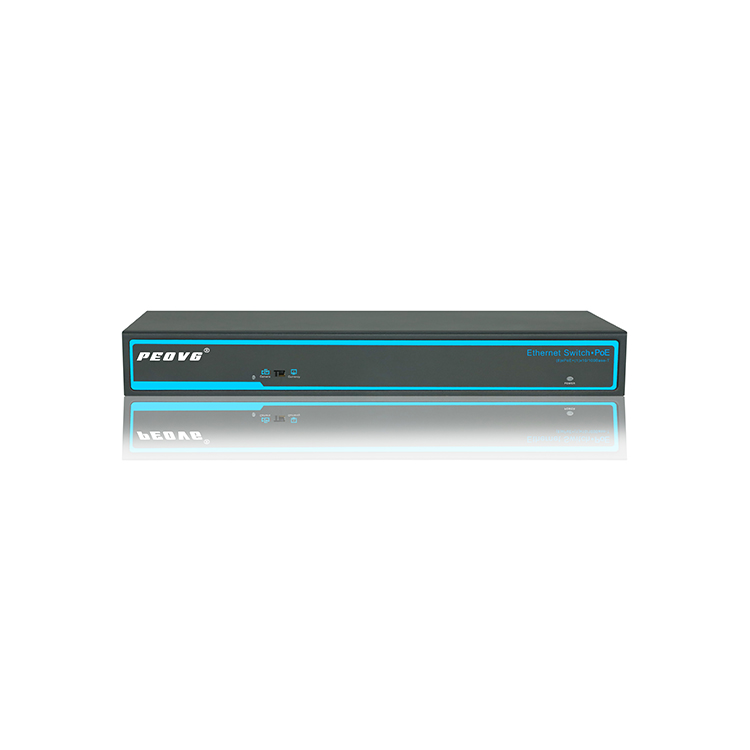

Pictures of this Top Sales 8 Ports POE Ethernet Switch 100Mbps CE FCC Factory
