10 Ports POE Ethernet Switch 100Mbps 120W

Home / Products / IP Transmission / 100Mbps POE Ethernet Switch / Detail

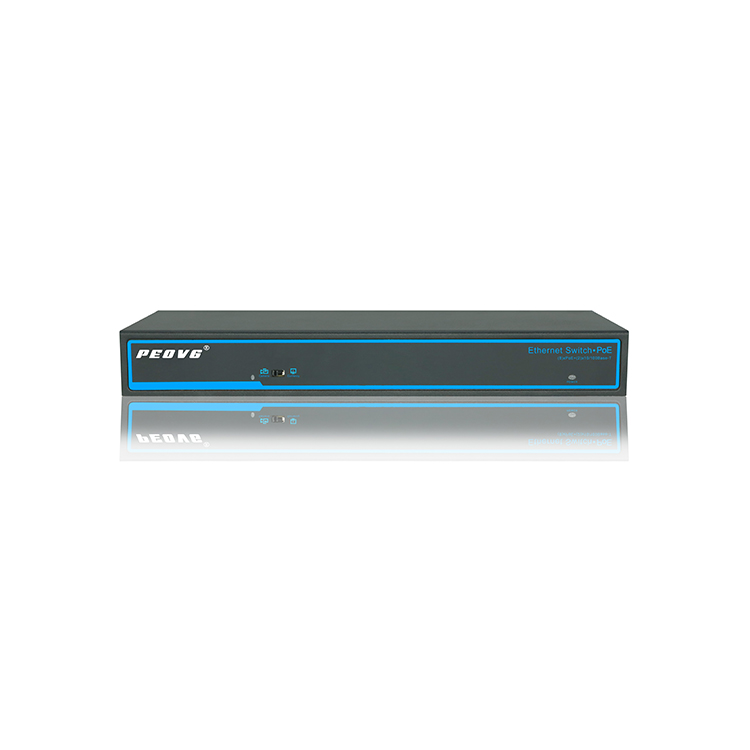

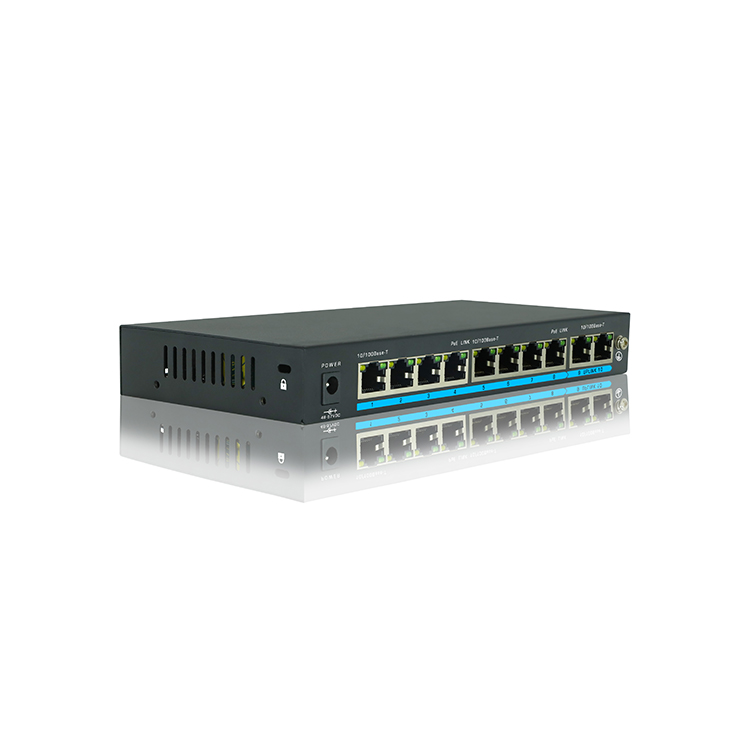

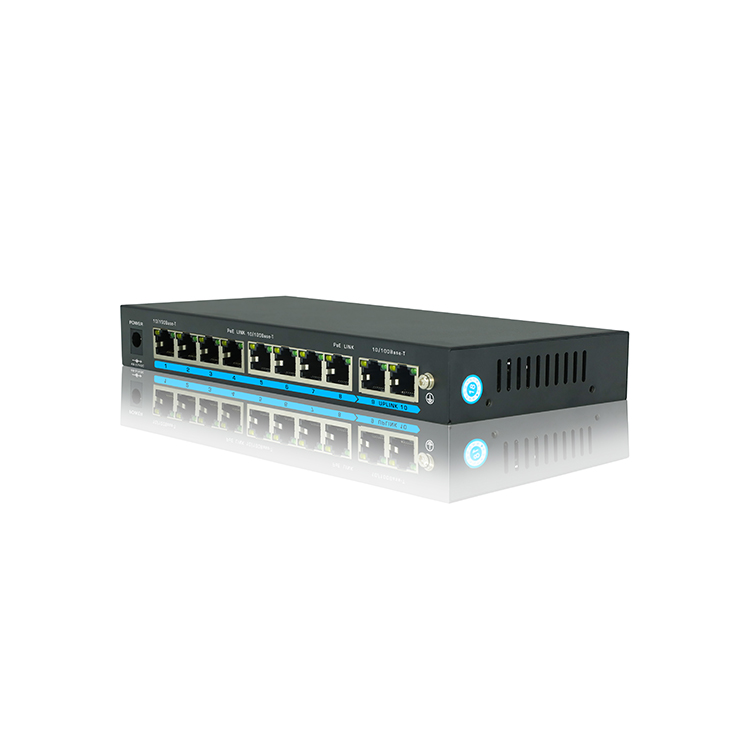

10 Ports POE Ethernet Switch 100Mbps 120W

.8 PoE ports,2 uplink port;10/100Mbps POE switch;

.Supports port auto-flip (Auto MDI/ MDIX);

.Adopts store and forward architecture;

.IEEE 802.3af/at,total power:120 watts;

.With anti theft lock;

.Protection:Excellent anti thunder,anti static and anti-interference;

.PoE data & power transmission distance 100meters(100Mbps),250meters(10Mbps);

.External power adaptor, fanless, natural cooling, small, compact and quiet design, suitable for desktop or wall;

Description of this PEOVG commercial 10 ports POE Ethernet Switch 100Mbps 120W
10802POE Power-over-Ethernet (PoE switch) allows to provide both power and network connectivity to PoE devices (referred to as PD's) across a single Ethernet cable. Powered Devices (PD's) include Wireless Access Points, IP cameras, VoIP phones, PoE LED lighting, and other PD switches, among other things. These 10 Ports Ethernet network devices are powered and connected through a PoE Switch.

Commercial Ethernet poe switch is an unmanaged POE switch,with 8 Megabit PoE ports, and 2 100Mbps RJ-45 Uplink.Commercial 10 Ports network devices support 802.3af/at standard and Max 30W PoE power output of each port,Max 120W of whole POE switch,and support 1 key cctv model extend to 250M at 10Mbps.

100mbps Poe Switch Network Devices Main Advantages:
1.OEM brand+low MOQ could be made to support customers.
2.Updated Design: More Unique and better to show our/your own brand.
3.Improved Inside PCB Board: all inside components are first-class, such as 5KV ESD diode and 6000V TVS for surge protection.
4.All our PoE Switch are 100% full Power,you see it once you test.

Specification of this PEOVG commercial 10 ports POE Ethernet Switch 100Mbps 120W

Item:10802POE			Description
Power	Power Adapter Voltage		48-57V DC
	Total power		120W
Network Connector	Network Port	POE Ethernet Port	1-8 port:10/100Mbps
		Ethernet Port	2 Uplink port:10/100Mbps
	Transmission Distance		1～8 Port : 100Mbps:0 ~ 100m 1～8 Port : 10Mbps:0 ~ 250m
			9-10 Uplink Port : 0 ~ 100m
	Transmission Medium		Cat5/5e/6 standard network cable
Network Switch	Network Standard		IEEE 802.3/802.3u, IEEE 802.3x, IEEE 802.1p, IEEE 802.3az
	Switching Capacity		5.6Gbps
	Packet Forwarding Rate		4.166Mpps
	MAC Table		2K
Power Over Ethernet	PoE Standard		IEEE 802.3af
	PoE Power Supply Type		End-Span(1/2+;3/6-)
	PoE Power Consumption		af≤15.4W(every port)
LED Status Indicator VLAN/Extend	PoE Ethernet LED Indicator Indicator		Power: 1 red light indicates that the power normal work;
			POE: 8 yellow lights indicate that the POE is power on;
			Ethernet: 10 green lights indicate that the Ethernet link and act;
	Surveillance Module Light		1pcs(Green), green indicates Camera
Environmental	Working temperature		0℃~55℃
	Relative Humidity		20~95%
	Storage temperature		-20℃~70℃
Mechanical	Dimension (L×W×H)		208mm96mm27mm
	Color		Black
	Weight		1050g
Stability	MTBF		>30000h
