Megabyte 4 Channels Poe Switch 1 Uplink 75W

Home / Products / IP Transmission / 100Mbps POE Ethernet Switch / Detail

Megabyte 4 Channels Poe Switch 1 Uplink 75W

.4 PoE ports,1 uplink port;10/100Mbps POE switch;

.Supports port auto-flip (Auto MDI/ MDIX);

.Adopts store and forward architecture;

.IEEE 802.3af/at,total power:75 watts;

.With anti theft lock;

.Protection:Excellent anti thunder,anti static and anti-interference;

.PoE data & power transmission distance 100meters(100Mbps),250meters(10Mbps);

.Built-in power supply,small,compact and quiet design, suitable for desktop or wall;

Description of this Megabyte 4 Channels Poe Switch AF Standard 15.4W Each Port

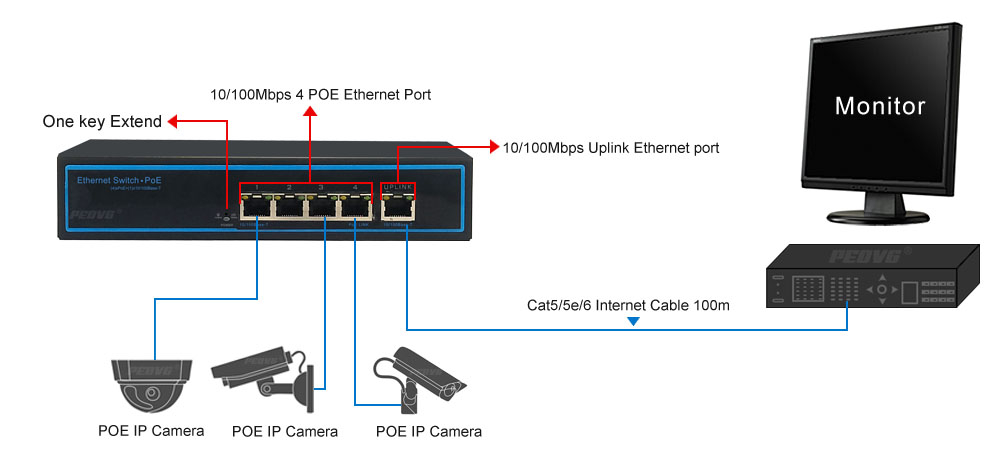

The PoE Switch has 4 ports PoE ports+1 port uplink port, can automatically detect and provide power for any connected 802.3af Powered Device(PD), such as VOIP phones,

IP Cameras,All POE ports support the IEE802.3af standard,with a maximum output of 15.4w each port. Built-in power supply, compact design. Plug and play, simple and convenient.

Specification of this Megabyte 4 Channels Poe Switch AF Standard 15.4W Each Port

Item:10401POE-BP75			Description
Power	Power Adapter Voltage		48-57V DC
	Consumption		75W
Network Connector	Network Port	POE Ethernet Port	1～4 Port : 10/100Mbps
		Ethernet port	Uplink Port : 10/100Mbps
	Transmission Distance		1～4 Port : 100Mbps:0~100m;
			10Mbps: 0~250m;
			Uplink Port : 0 ~ 100m
	Transmission Medium		Cat5/5e/6 standard network cable
Network Switch	Network Standard		IEEE 802.3/802.3u, IEEE 802.3x, IEEE 802.1p, IEEE 802.3az
	Switching Capacity		1Gbps
	Packet Forwarding		0.74Mpps
	MAC Table		1K
Power Over Ethernet	PoE Standard		IEEE 802.3af
	PoE Power Supply		End-Span(1/2+;3/6-)
	PoE Power		af≤15.4W (every port)
LED Status Indicator	PoE Ethernet LED Indicator		Power: 1 red light indicates that the
			power normal work;
			POE: 4 yellow lights indicate that the
			POE is power on;
			Ethernet: 5 green lights indicate that
			the Ethernet link and act;
Environmental	Working temperature		0℃~55℃
	Relative Humidity		20~95%
	Storage temperature		-20℃~70℃
Mechanical	Dimension (L×W×H)		201mm120mm41mm
	Color		Silver-Gray
	Weight		605.1g
Stability	MTBF		>30000h
