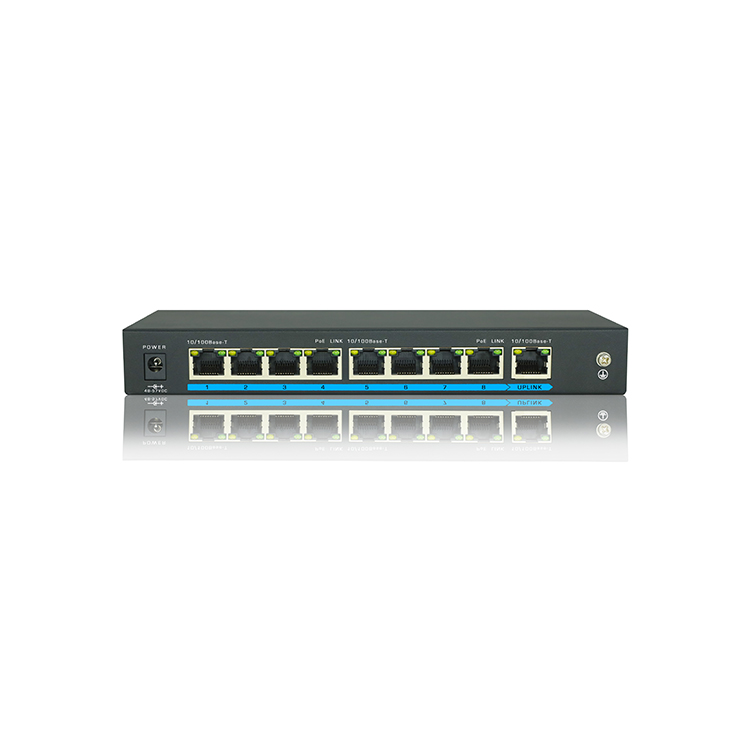

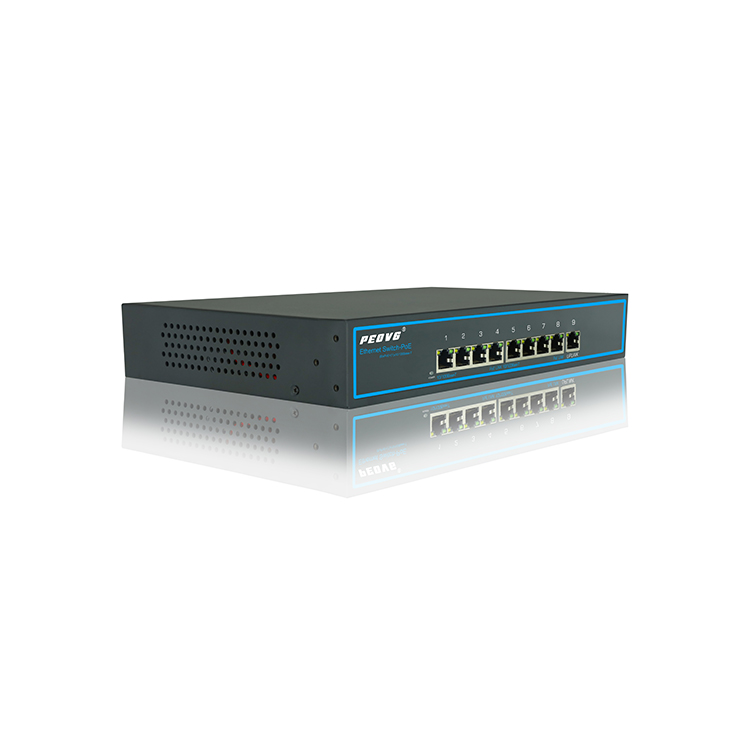

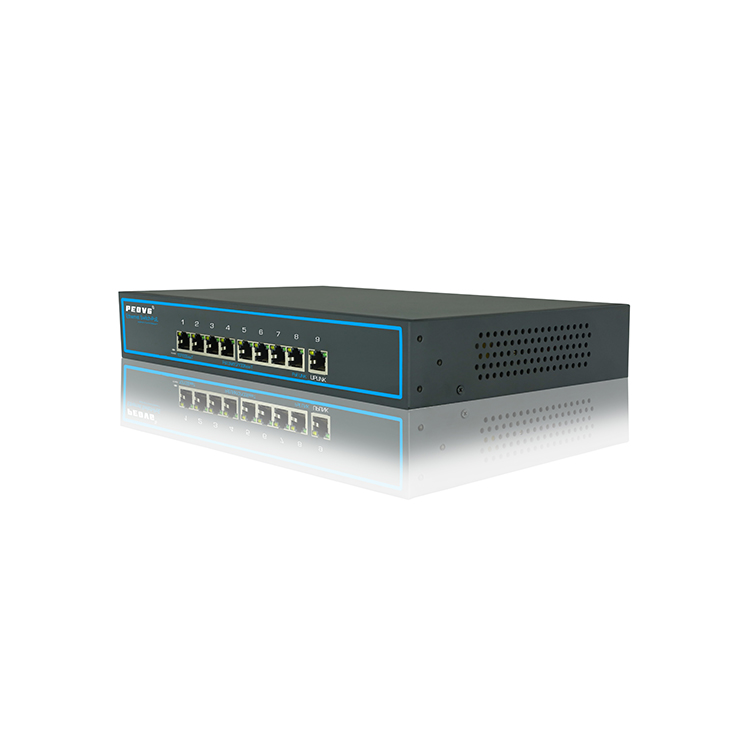

8 Ports 100Mbit PoE Switch 150W Power built in

.8 port PoE,100Mbit each port

.PoE data & power transmission distance 100meters

.Maximum 15.4 watts power for each PoE port

.PoE Standard: IEEE 802.3af

.PoE Pin: 1/2+,3/6-

.Total Power:52V2.9A 150W

Description of this 8 Ports 100 Mbit PoE Switch IEEE802.3af

This PoE Switch havs two models, 10801POE-BP150/ 10801POE-BP250, both all compact 8+1 port Poe switch, with 8 10/100 Mbps PoE Ports, and 1 10/100Mbps Uplink Port. The 8 POE ports can automatically detect and provide power for any connected 802.3af or at Powered Device(PD). 8 HD analog cameras can be connected for smooth and stable transmission, the uplink port satisfies the local NVR storage and the access of the external network system of the aggregation switch. RJ45 pin with flat gold plating design, effective contact area increased by 5 times, prevents long-term oxidative contact failure and ensures stable reliability of signals and power supplies.

Specification of this 8 Ports 100 Mbit PoE Switch With Two PoE Standard

Item:10801POE-BP150			Description
Power	Power Adapter Voltage		110-240V AC
	Consumption		150W/250W
Network Connector	Network Port	POE Ethernet Port	1~8 Port:10/100Mbps
		Ethernet port	Uplink Port:10/100Mbps
	Transmission Distance		1~8Port: 100Mbps:0~100m
			Uplink port:0~100m
	Transmission Medium		Cat5/5e/6 standard network cable
Network Switch	Network Standard		IEEE 802.3/802.3u, IEEE 802.3x,IEEE 802.1d
	Switching Capacity		9.2Gbps
	Packet Forwarding Rate		6.8448Mpps
	MAC Table		2K
Power Over Ethernet	POE Standard		IEEE 802.3af/at
	POE Power Supply Type		End-Span(1/2+;3/6-)
	PoE Power Consumption		af=15.4W/30W (every port)
LED Status Indicator VLAN/Extend	POE Ethernet LED Indicator		Power: 1 red light indicates that the power normal work
			POE:8 yellow lights indicate that the POE is power on
			Ethernet:9 green lights indicate that the Ethernet link and act
Environmental	Working temperature		0℃~55℃
	Relative Humidity		20~95%
	Storage temperature		-20℃~70℃
Mechanical	Dimension (L×W×H)		285 mm 180 mm 44mm
	Color		Black
	Weight		1690g/2030g
Stability	MTBF		>30000h
