4 PoE Switch 1 Uplink 120W POE+

.4 PoE ports,1 uplink port;10/100Mbps POE switch;

.Supports port auto-flip (Auto MDI/ MDIX);

.Adopts store and forward architecture;

.IEEE 802.3af/at,total power:120 watts;

.Protection:Excellent anti thunder,anti static and anti-interference;

.PoE data & power transmission distance 100meters(100Mbps),250meters(10Mbps);

.Built-in power supply,small,compact and quiet design, suitable for desktop or wall;

Description of this 120W 5 ports PoE Switch with One key CCTV Mode

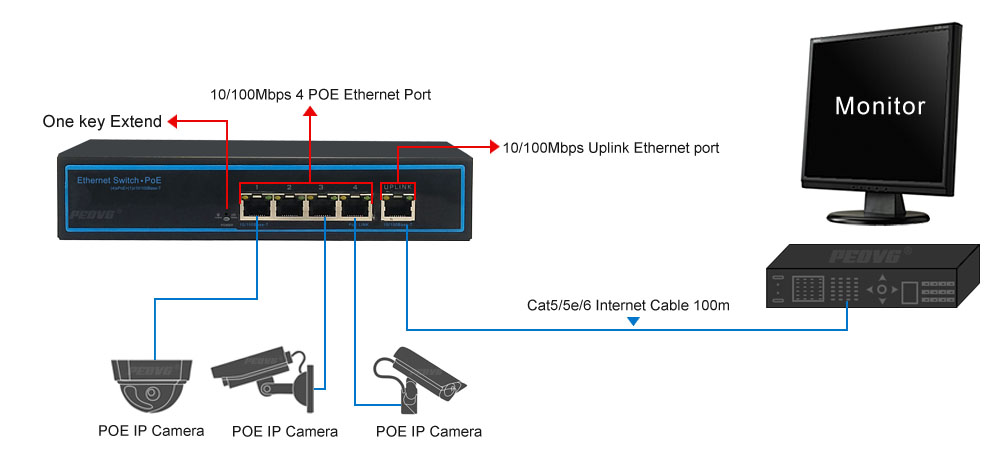

4 ports PoE Ethernet Switch is a security surveillance Ethernet Switch which aims at Ethernet high definition surveillance and security system.
The product fully combines the characteristics of security surveillance, provides fast packet forwarding ability and abundant backplane bandwidth,which ensures clear image and fluent transmission. ESD and surge protection circuit can improve product stability.
The product supports one key Extend mode, with VLAN function can restrain the network storm,protect the information security, prevent the viral transmission and cyber attack,fully satisfy the Ethernet video security surveillance system and Ethernet project needs.

Specifications:

Item:10401POE-BP120			Description
Power	Power Adapter Voltage		AC 110V-240V
	Consumption		75W/120W
Network Connector	Network Port	POE Ethernet Port	1～4 Port : 10/100Mbps
		Ethernet port	Uplink Port : 10/100Mbps
	Transmission Distance		1～4 Port : 100Mbps:0~100m;
			10Mbps: 0~250m;
			Uplink Port : 0 ~ 100m
	Transmission Medium		Cat5/5e/6 standard network cable
Network Switch	Network Standard		IEEE802.3/802.3u, IEEE802.3x,IEEE802.1D
	Switching Capacity		1G
	Packet Forwarding		0.74Mpps
	MAC Table		1K
Power Over Ethernet	PoE Standard		IEEE 802.3af/at
	PoE Power Supply		End-Span(1/2+;3/6-)
	PoE Power		af=15.4W, at=30W(every port)
LED Status Indicator	PoE Ethernet LED Indicator		Power: 1 red light indicates that the
			power normal work;
			POE: 4 yellow lights indicate that the
			POE is power on;
			Ethernet:5 green lights indicate that
			the Ethernet Link and Act;
Environmental	Working temperature		0℃~55℃
	Relative Humidity		20~95%
	Storage temperature		-20℃~70℃
Mechanical	Dimension (L×W×H)		201mm120mm41mm
	Color		Black
	Weight		627.6g
Stability	MTBF		>30000h
