250W 24 ports POE switch 100Mbps

Home / Products / IP Transmission / 100Mbps POE Ethernet Switch / Detail

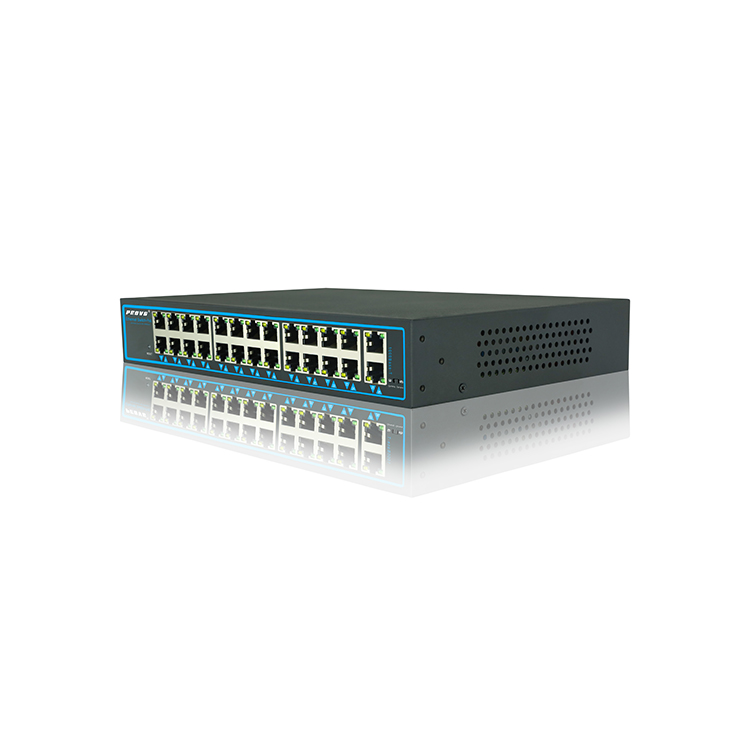

250W 24 ports POE switch 100Mbps

●26 port switch with 24 ports POE,100Mbit each port

● PoE data & power transmission distance 100meters(100Mbps),250meters(10Mbps,only 1-8 port)

● PoE Standard: IEEE802.3af

● PoE Pin: 1/2+,3/6-

●Total Power:：52V4.8A 250W

Description of this IEEE802.3af 24 port POE Switch small voltage design 2 Uplink

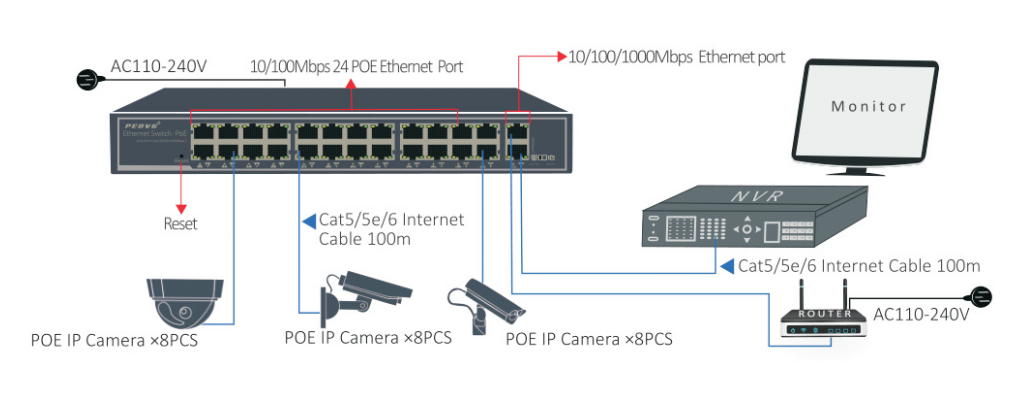

The TT-102402EXPOE-BP250 is compact 24 port poe switch small voltage design, 100mbps poe switch with 24ports supporting 10/100 Mbps, 2 ports supporting 10/100/1000 Mbps,The 24 POE ports can automatically detect and provide power for any connected 802.3af Powered Device(PD), such as VOIP phones, IP Cameras, All POE ports support the IEE802.3af standard, with a maximum total output of 250W. Suitable for low voltage cameras, 24 cameras can be connected, saving cost.

We specialize in the manufacture of Network Equipment 100mbps Poe Switch.We have accumulated a wealth of experience and applied this experience to the design and manufacture of products.Our Poe Switch 2 Uplink 24 Port and has a world-leading manufacturing level and a reasonable price.

Specification of this IEEE802.3af 24 port POE Switch small voltage design 2 Uplink

Item			Description
Power	Power Adapter Voltage		110-240V AC
	Consumption		250W
Network Connector	Network Port	POE Ethernet Port	1~24 Port:10/100Mbps
		Ethernet port	Uplink Port:10/100/1000Mbps
		SFP Port	SFP Port:10/100/1000Mbps
	Transmission Distance		1~24Port: 100Mbps:0~100m 10Mbps:0~250m
			Uplink port:0~100m
			SFP:depends on the optical module
	Transmission Medium		Cat5/5e/6 standard network cable
Network Switch	Network Standard		IEEE 802.3/802.3u, IEEE 802.3x,IEEE 802.1d
	Switching Capacity		9.2Gbps
	Packet Forwarding Rate		6.8448Mpps
	MAC Table		2K
Power Over Ethernet	POE Standard		IEEE 802.3af
	POE Power Supply Type		End-Span(1/2+;3/6-)
	PoE Power Consumption		Af=15.4W(every port)
LED Status Indicator VLAN/Extend	POE Ethernet LED Indicator		Power: 1 red light indicates that the power normal work
			POE:24 yellow lights indicate that the POE is power on
			Ethernet:26 green lights indicate that the Ethernet link and act;
Environmental	Working temperature		0℃~55℃
	Relative Humidity		20~95%
	Storage temperature		-20℃~70℃
Mechanical	Dimension (L×W×H)		285 mm 180 mm 44mm
	Color		Black
	Weight		1737g
Stability	MTBF		>30000h
