150W 16 ports POE ethernet switch one key CCTV

Home / Products / IP Transmission / 100Mbps POE Ethernet Switch / Detail

..
..
  • ..
  • ..
  • ..
  • ..

150W 16 ports POE ethernet switch one key CCTV

.16 ports 100Mbit PoE Ports,2 Gigabit Uplink Ports,1 Port Gigabit SFP Port
.100meters(100Mbps),250meters(10Mbps),1 Gigabit Fiber Ports,Data transmission:depends on the optical module
.PoE Standard: IEEE 802.3af
.PoE Pin: 1/2+,3/6-
.Total Power:52V2.9A 150W
Description of this 250m extend mode 16 port 100 Mbit POE Switch 2 Uplink 1 SFP

The 101603EXPOE-BP150 is compact 16 Port 100mbps Poe Switch, with 16ports supporting 10/100 Mbps POE Ports,2 ports supporting 10/100/1000 Mbps Uplink Ports,1port Gigabit SFP Auto-negotiation and Auto-MDI/MDIX,The 16 POE ports can automatically detect, effectively suppress network storms. 16 Port Ethernet Poe Switch Multiple cameras can be connected for easy wiring, saving wiring time and cost.

We are quite professional in the field of 100mbps poe switch manufacturing.The members of our team come from a variety of professional fields, so we can provide professional and standardized services to our customers.Our 250m Extend Mode Poe Switch and Ethernet Poe Switch with 2 Uplink has a world-leading manufacturing level and a reasonable price.

Specification of this 250m extend mode 16 port 100 Mbit POE Switch 2 Uplink 1 SFP


Item:101603EXPOE-BP150

Description

Power

Power Adapter Voltage

110-240V AC

Consumption

150W

Network Connector

Network Port

POE Ethernet Port

1~16 Port:10/100Mbps

Ethernet port

Uplink Port:10/100/1000Mbps

SFP Port

SFP Port :10/100/1000Mbps

Transmission Distance

1~16Port:

100Mbps:0~100m  10Mbps:0~250m

Uplink port:0~100m

SFP:depends on the optical module

Transmission Medium

Cat5/5e/6 standard network cable

Network Switch

Network Standard

IEEE 802.3/802.3u, IEEE 802.3x,IEEE 802.1d

Switching Capacity

9.2Gbps

Packet Forwarding Rate

6.8448Mpps

MAC Table

2K

Power Over Ethernet

POE Standard

IEEE 802.3af/at

POE Power Supply Type

End-Span(1/2+;3/6-)

PoE Power Consumption

Af=15.4W/30W(every port)

LED Status Indicator

VLAN/Extend

POE Ethernet LED Indicator

Power: 1 red light indicates that the power normal work

POE:16 yellow lights indicate that the POE is power on

Ethernet:18 green lights indicate that the Ethernet link and act;

Environmental

Working temperature

0℃~55℃

Relative Humidity

20~95%

Storage temperature

-20℃~70℃

Mechanical

Dimension (L×W×H)

285 mm *180 mm *44mm

Color

Black

Weight

1647g

Stability

MTBF

>30000h

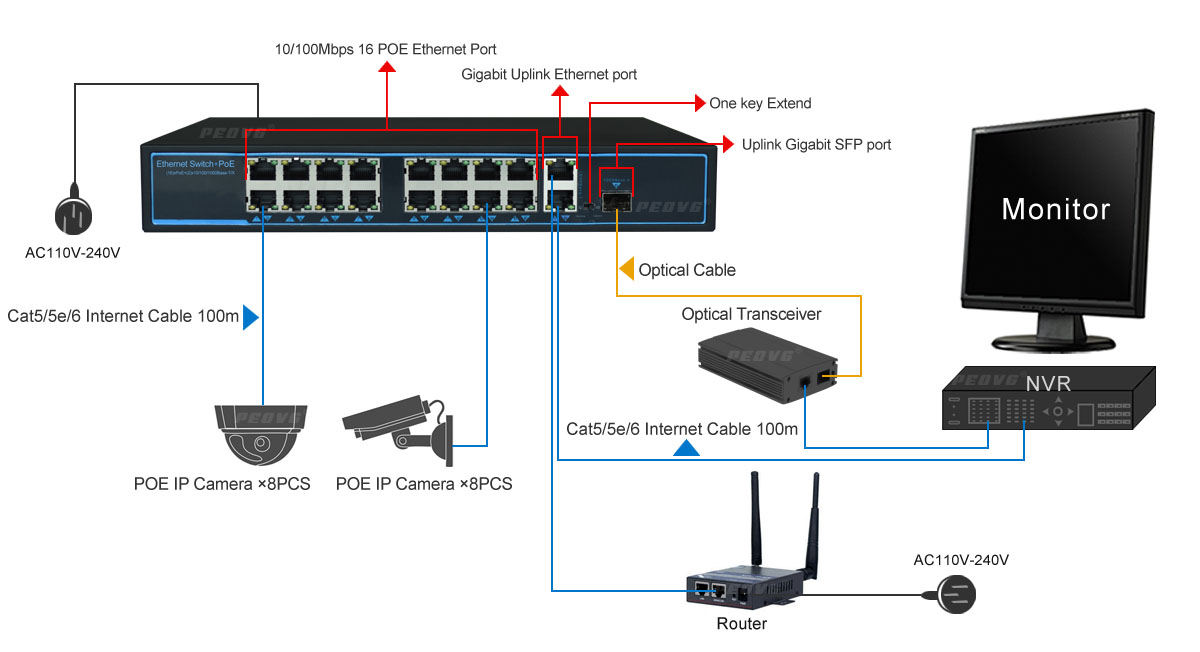

Application of this 250m extend mode 16 port 100 Mbit POE Switch 2 Uplink 1 SFP

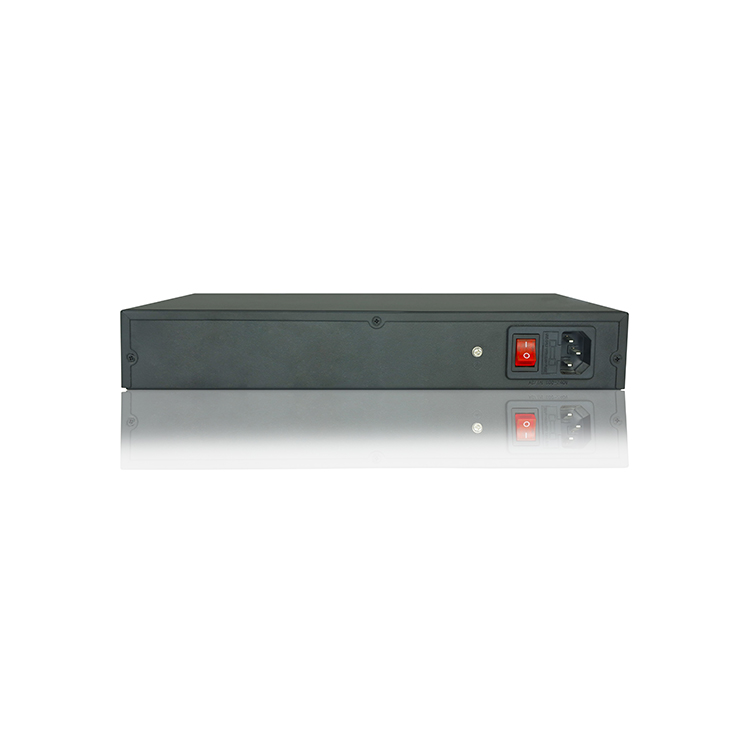

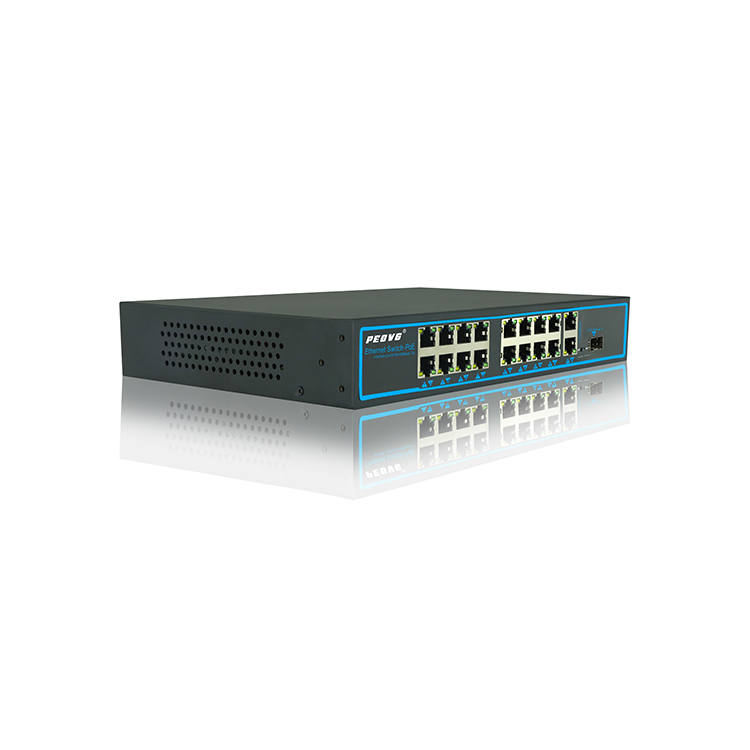

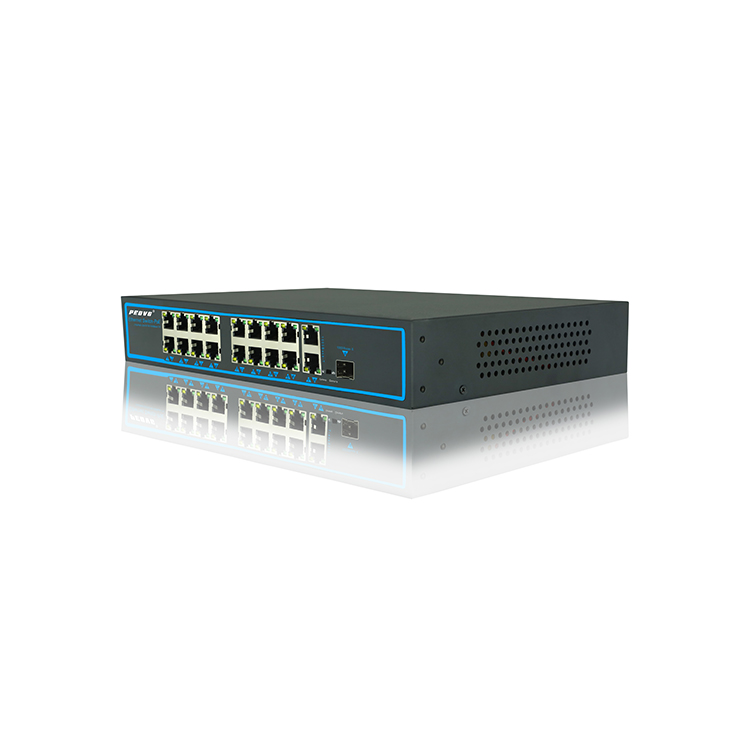

Pictures of this 250m extend mode 16 port 100 Mbit POE Switch 2 Uplink 1 SFP
