10 Ports PoE Switch 120W Power built in 100Mbps

.10 port switch with 8 port PoE,100Mbit each port
.PoE data & power transmission distance 100meters(100Mbps),
250meters(10Mbps)
.15.4 watts power for each PoE port
.PoE Standard: IEEE 802.3af
.PoE Pin: 1/2+,3/6-
.Total Power:52V2.3A 120WTotal Power:52V2.3A
Description of this 8 Ports 100 Mbit PoE Switch With Two PoE Standard

This PoE Switch both all compact 8+2 port Poe switch, with 8 10/100 Mbps PoE Ports, and 1 10/100Mbps Uplink Port. The 8 POE ports can automatically detect and provide power for any connected 802.3af or at Powered Device(PD). 8 HD analog cameras can be connected for smooth and stable transmission, the uplink port satisfies the local NVR storage and the access of the external network system of the aggregation switch. RJ45 pin with flat gold plating design, effective contact area increased by 5 times, prevents long-term oxidative contact failure and ensures stable reliability of signals and power supplies.

Specification of this 8 Ports 100 Mbit PoE Switch 120W


Item:10802POE-BP120

Description

Power

Power Adapter Voltage

110-240V AC

Consumption

120W

Network Connector

Network Port

POE Ethernet Port

1~8 Port:10/100Mbps

Ethernet port

Uplink Port:10/100Mbps

Transmission Distance

1~8Port:

100Mbps:0~100m 10Mbps:0-250M

Uplink port:0~100m

Transmission Medium

Cat5/5e/6 standard network cable

Network Switch

Network Standard

IEEE 802.3/802.3u, IEEE 802.3x,IEEE 802.1d

Switching Capacity

5.6Gbps

Packet Forwarding Rate

4.166Mpps

MAC Table

2K

Power Over Ethernet

POE Standard

IEEE 802.3af/at

POE Power Supply Type

End-Span(1/2+;3/6-)

PoE Power Consumption

af=15.4W/30W (every port)

LED Status Indicator

VLAN/Extend

POE Ethernet LED

 Indicator

Power: 1 red light indicates that the power normal work

POE:8 yellow lights indicate that the POE is power on

Ethernet:10 green lights indicate that the Ethernet link and act

Environmental

Working temperature

0℃~55℃

Relative Humidity

20~95%

Storage temperature

-20℃~70℃

Mechanical

Dimension (L×W×H)

201 mm *120 mm *41mm

Color

Black

Weight

687g

Stability

MTBF

>30000h

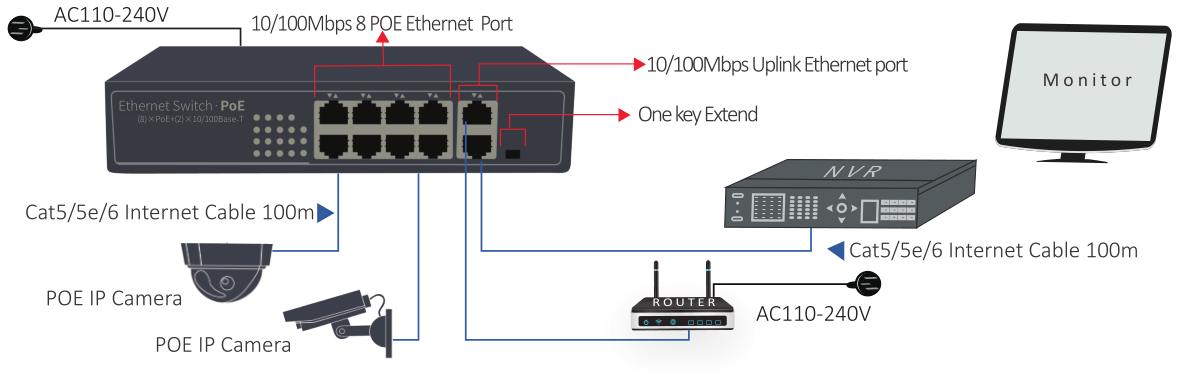

 Application of this 8 Ports POE,2 ports Uplink 100 Mbit PoE Switch 120W

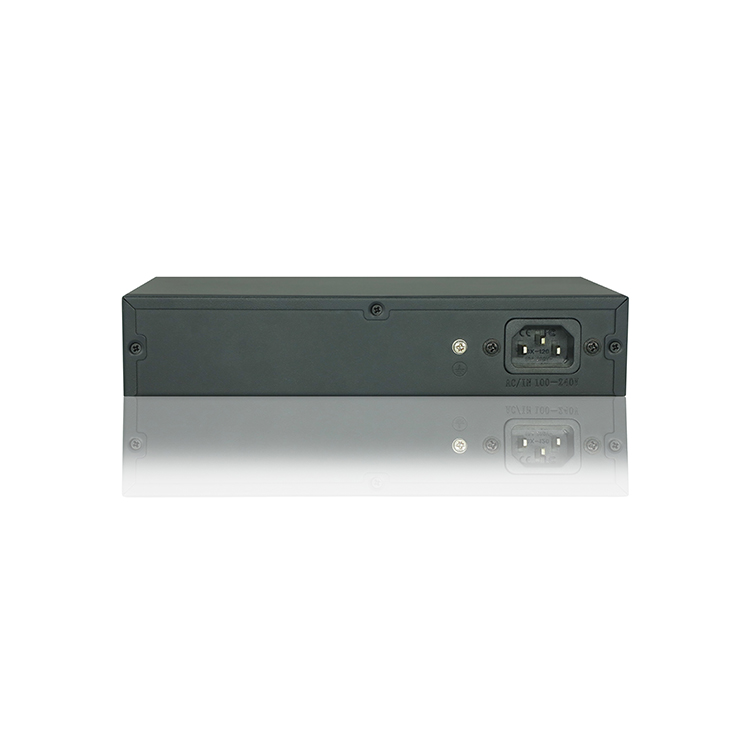

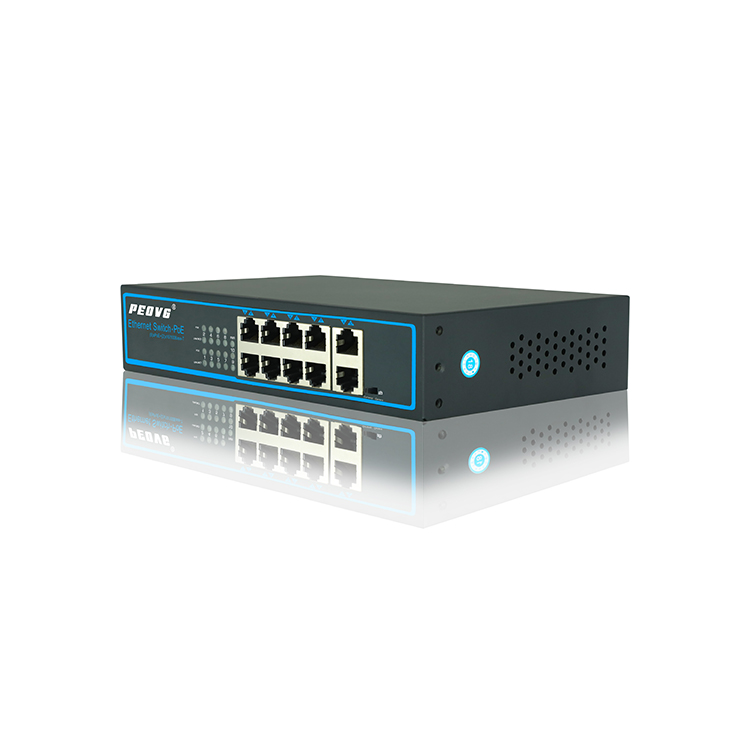

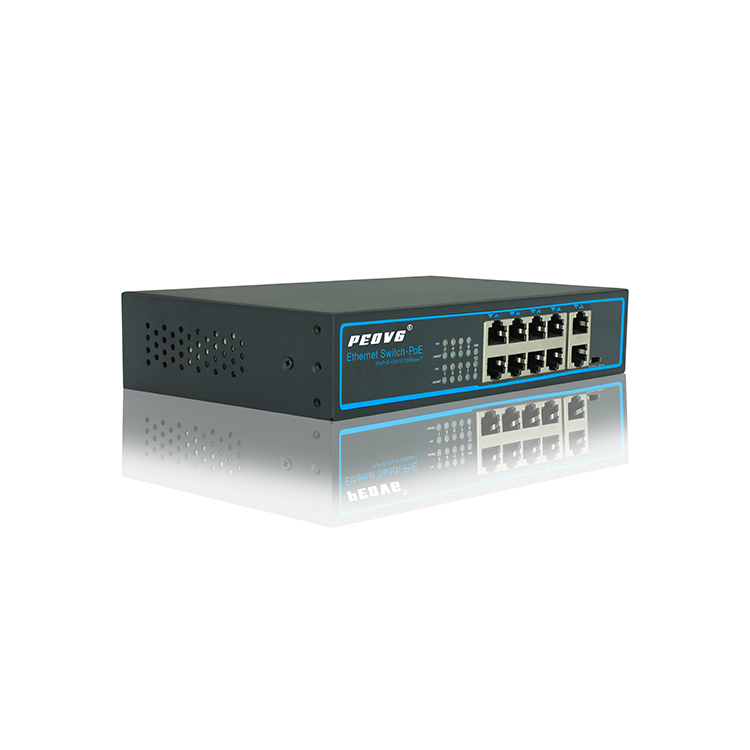

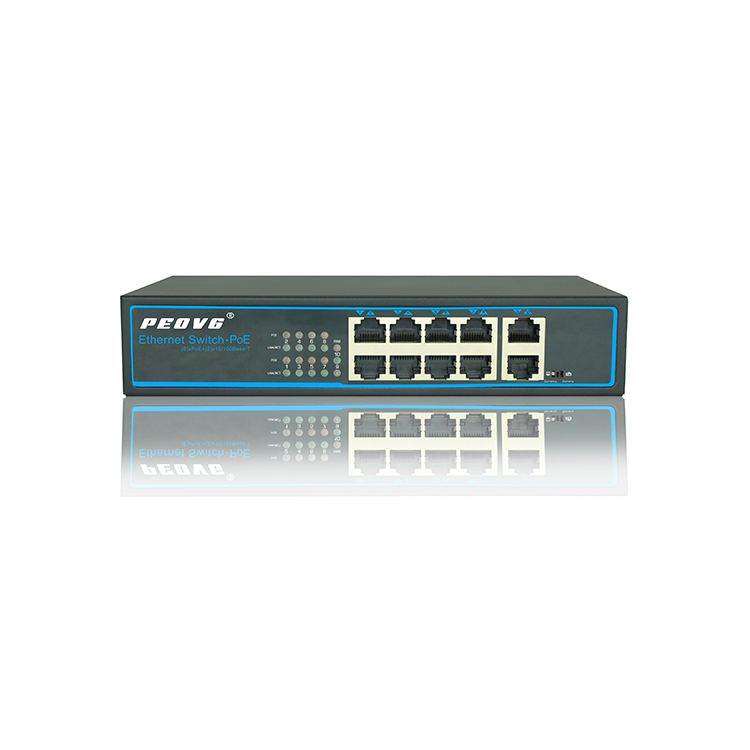

Pictures of this 8 Ports POE,2 ports Uplink 100 Mbit PoE Switch 120W
