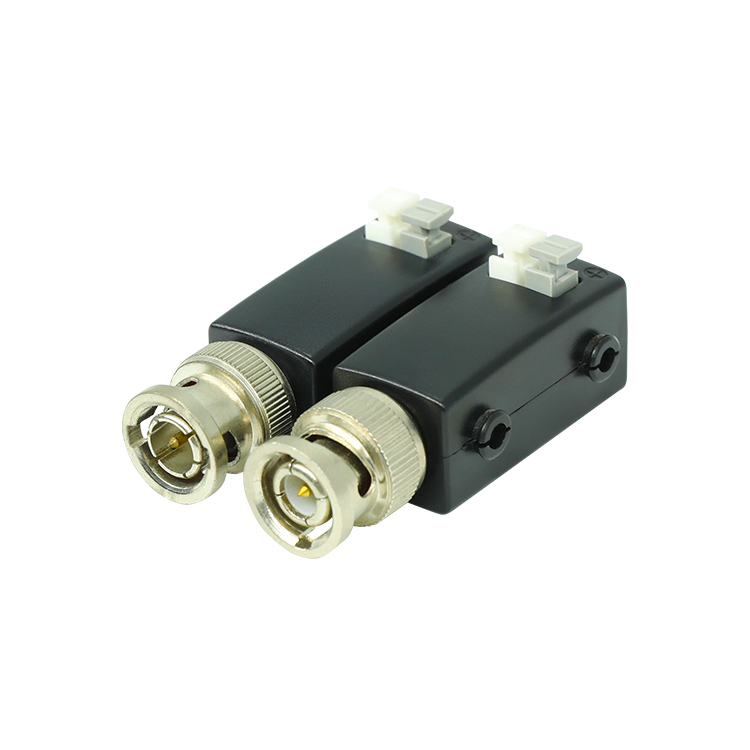

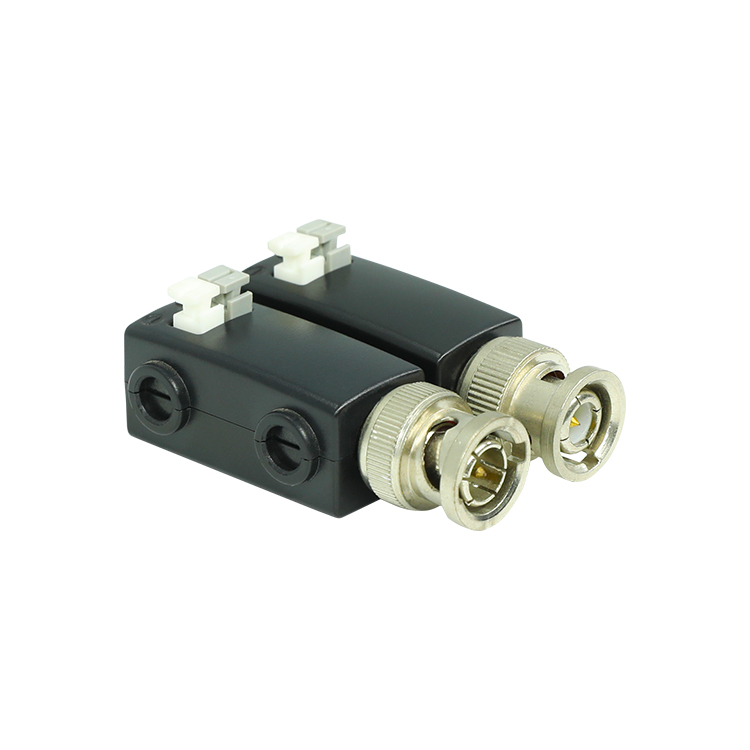

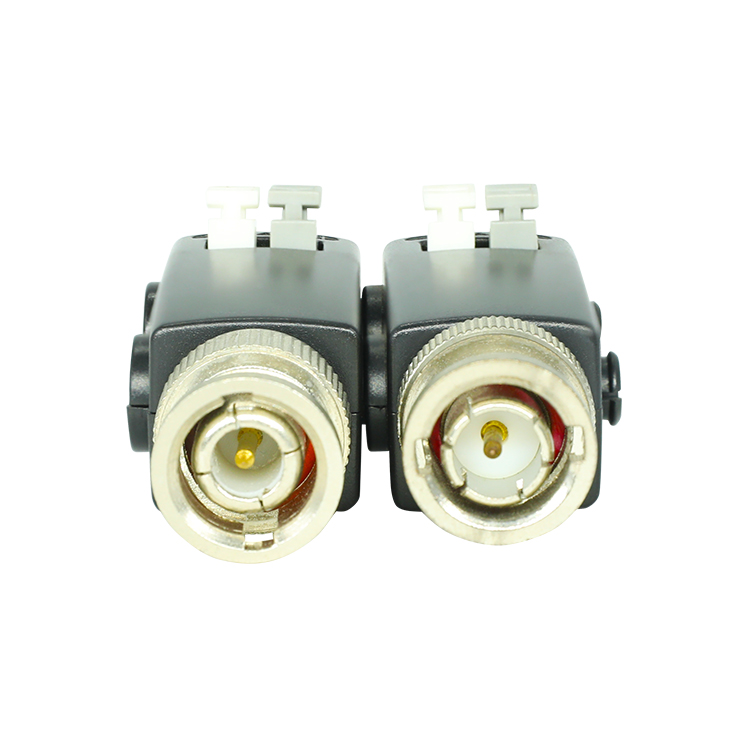

New 8MP AHD CVI TVI video balun

●Upside-press-fitting terminal,1 channel passive HD transceiver for TVI/CVI/AHD/CVBS

●Color HD video up to 500m with active receiver

●Color HD video transmission distance with passive transceiver:

HDCVI 720P: 400M / 1080P: 250M; 4Mp:200M ; 8MP: 180M

HDTVI 720P/1080P: 250M; 5Mp:200M ; 8MP: 180M

AHD 720P: 350M / 1080P: 200M;5Mp:200M;8MP: 180M

●Built in TVS surge protection

Description of this 1CH Passive HD CVI TVI AHD CVBS 4K 8mp Video Balun Transceiver

201P-HD-G1 cctv passive video balun is a passive (non-amplified) device that allows the transmission of real-time CCTV HD video signal via cost-effective Unshielded Twisted Paired (UTP) cable. The 201P-HD-G1 CCTV Passive Video Transceiver is compatible with all HD-TVI, HD-CVI, AHD and CVBS analog cameras.

Upside push-pin terminal block allows easy connection of UTP cable output. Used in pairs, 201P-HD-G1 1CH Passive HD Video Balun eliminates costly and bulky coaxial cable.

The superior interference rejection and low emissions of the 201P-HD-G1 allow video signals to coexist in the same wire bundle as telephone, datacom, or damaging voltage spikes. 1CH HD Video Balun Transceiver crosstalk and noise immunity ensure quality video signals. Widely used in security, teaching industry and other complex system environment.

Specification of this 1CH Passive HD CVI TVI AHD CVBS Video Balun Transceiver

Model	TT-201P-HD-G1
Properties
Transmission Signal	1 channel
Transmission Distance (Max)	HDCVI 720P:400M / 1080P:250M /4MP:200M / 4K 8MP:180M
	HDTVI 720P/1080P:250M / 5MP:200M / 4K 8MP:180M
	AHD 720P:350M / 1080P:200M / 5MP:200M / 4K8MP:180M
Category Type	UTP CAT 5E/6 (R＜10Ω/100M)
Video Transmission Properties And Port
Coaxial Video Connector	BNC-M
Twisted-pair Video Connector	Push-terminal
Compatible Format	HDCVI, HDTVI, AHD, CVBS
Resolution	720P/1080P/4MP/5MP/8MP 4K
Anti-interference	＞60db
Protection
ESD	1a contact discharge electricity level 3
	1b air discharge electricity level 3
	Per:IEC61000-4-2
Coaxial Cable Connector	2KV(common-code) Per:IEC61000-4-5
UTP Cable Connector	2KV(different-code),4KV(common-code),Per:IEC61000-4-5
Impedance
BNC Male	75 ohms
UTP Cable	100 ohms
Physical Properties
Shell	ABS
Color	Black
N.W.	25G
Stability
MTBF	＞10000H
Environmental
Operating Temperature	-10~55℃
Storage Temperature	-20~70℃
Humidity	0~95%(non-condensing)
