AHD CVI TVI HD Video Transceiver balum

Home / Products / HD Transmission / Passive 1ch HD Video Balun / Detail

..
..
  • ..
  • ..
  • ..
  • ..

AHD CVI TVI HD Video Transceiver balum


Screw terminal,1 channel passive HD Balun for TVI/CVI/AHD/CVBS
Color HD video up to 500m with active receiver
Color HD video transmission distance with passive transceiver:
HDCVI 720P: 400M / 1080P: 250M; 4Mp:200M ; 8MP: 180M
HDTVI 720P/1080P: 250M; 5Mp:200M ;  8MP: 180M
AHD 720P: 350M / 1080P: 200M;5Mp:200M;8MP: 180M
Built in TVS surge protection
Description of this Video Balun Extender transmitter for HDCVI HDTVI AHD camera

201P-HD-B2 is Single Channel Video Balun Transmitter Mini design,friendly PCB board,copper core,excellent lighting protection, ESD builted make you better and safety Single Channel Balun Extender Transmitter.

Extender Transmitter For HDCVI HDTVI Camera ,Widely used in Bank,Hospitals,school security monitor systerm,teaching industry and other complex system environment.

For many years, we have focused on manufacturing and supplying cctv passive video balun.To be productive, we maintain an attitude of excellence.Our Cctv Passive Video Balun Extender has a world-leading manufacturing level and a reasonable price.

Specification of this Video Balun Extender transmitter for HDCVI HDTVI AHD camera
Model 201P-HD-B2
Properties
Transmission Signal 1 channel
Transmission Distance (Max) HDCVI 720P:400M / 1080P:250M /4MP:200M / 4K 8MP:180M (Max)
HDTVI 720P/1080P:250M / 5MP:200M / 4K 8MP:180M(Max)
AHD 720P:350M / 1080P:200M / 5MP:200M / 4K 8MP:180M(Max)
Category Type UTP CAT 5E/6 (R10Ω/100M)
Video Transmission Properties And Port
Coaxial Video Connector BNC Male
Twisted-pair Video Connector Push-terminal
Compatible Format HDCVI, HDTVI, AHD, CVBS
Resolution 720P/1080P/4MP/5MP/8MP 4K
Anti-interference 60db
Protection
ESD 1a contact discharge electricity level 3
1b air discharge electricity level 3
Per:IEC61000-4-2
Coaxial Cable Connector 2KV(common-code) Per:IEC61000-4-5
UTP Cable Connector 2KV(different-code),4KV(common-code),Per:IEC61000-4-5
Impedance
BNC Male 75 ohms
UTP Cable 100 ohms
Physical Properties
Shell ABS
Color Black
N.W. 23G
Stability
MTBF 10000H
Environmental
Operating Temperature -10~55
Storage Temperature -20~70
Humidity 0~95%(non-condensing)


Application of this Video Balun Extender transmitter for HDCVI HDTVI AHD camera

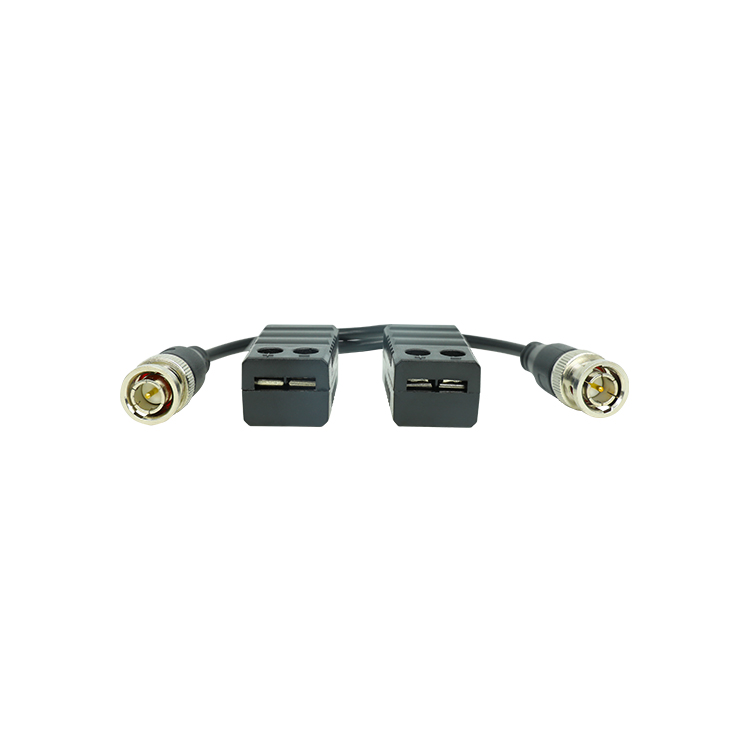

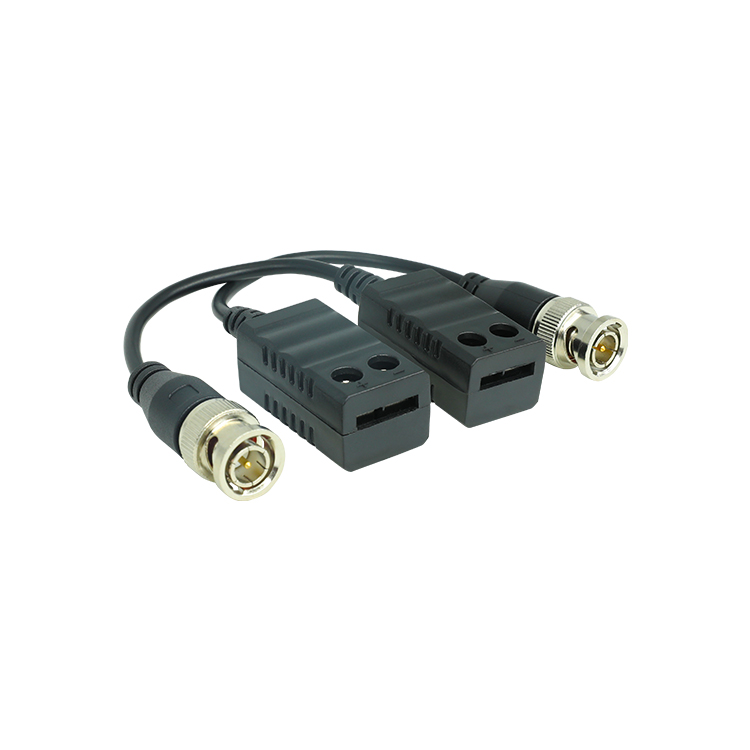

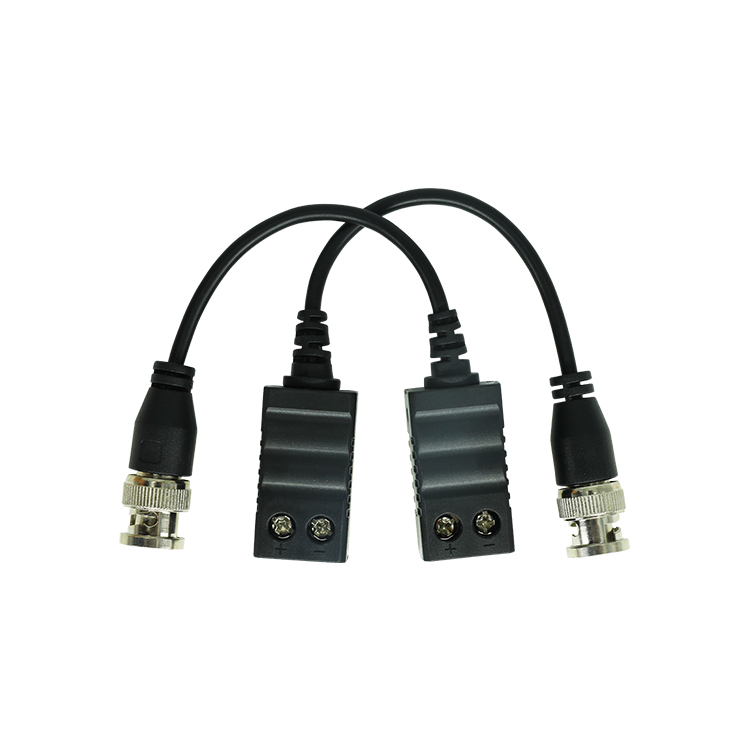

Pictures of this Video Balun Extender transmitter for HDCVI HDTVI AHD camera
