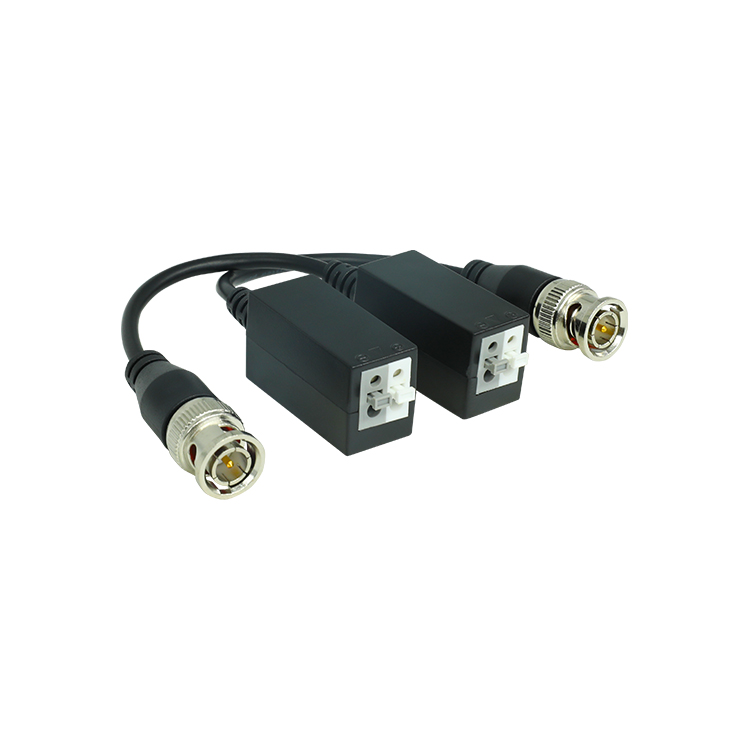

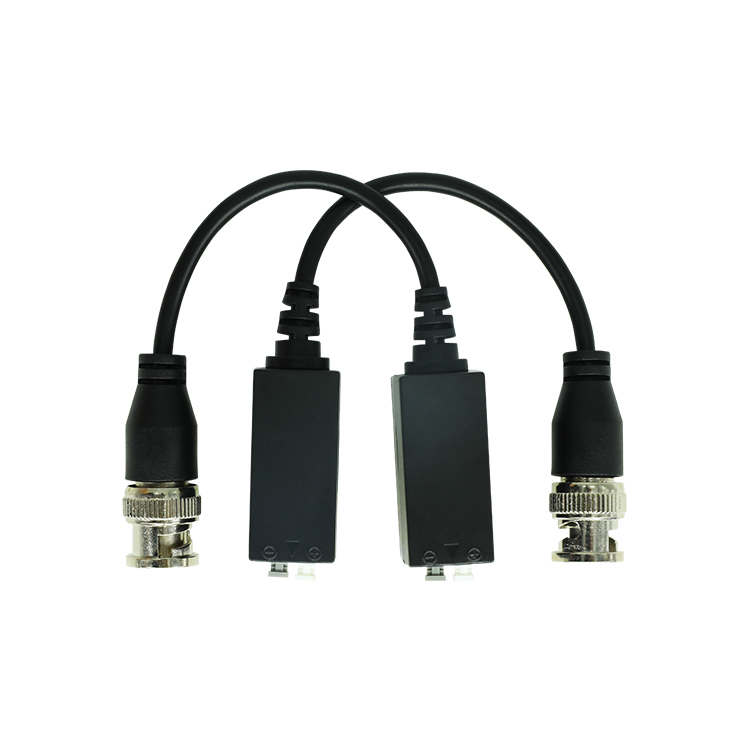

HD Video balun Transceiver Mini Design 8MP

●Press-fitting terminal,1 channel passive HD Balun for TVI/CVI/AHD/CVBS

●Color HD video up to 500m with active receiver

●Color HD video transmission distance with passive transceiver:

●HDCVI 720P: 400M / 1080P: 250M; 4Mp:200M ; 8MP: 180M

●HDTVI 720P/1080P: 250M; 5Mp:200M ; 8MP: 180M

●AHD 720P: 350M / 1080P: 200M;5Mp:200M;8MP: 180M

●Built in TVS surge protection

Description of this 8MP 5MP 4MP 3MP mini Passive single HD video balun Terminal

201P-HD-A2 video balun is a passive 1 channel device that allows the transmission of real-time CCTV HDCVI,HDTVI,AHD and CVBS analog video signal via unshielded Twisted Paired (UTP) cable.

The unparralled interference rejection and low emissions of the 201P-HD-A2 allow video signals to coexist in the same wire bundle as datacom,telephone,or damaging votage spikes.

Mini design,strong enviroment PCB board,copper core,super lighting protection, ESD builted make you better and safety video balun.

Widely used in security, teaching industry and other complex system environment.

Specification of this 8MP 5MP 4MP 3MP mini Passive single HD video balun Terminal

Model	201P-HD-A2
Properties
Transmission Signal	1 channel
Transmission Distance (Max)	HDCVI 720P:400M / 1080P:250M /4MP:200M / 4K 8MP:180M (Max)
	HDTVI 720P/1080P:250M / 5MP:200M / 4K 8MP:180M(Max)
	AHD 720P:350M / 1080P:200M / 5MP:200M / 4K 8MP:180M(Max)
Category Type	UTP CAT 5E/6 (R＜10Ω/100M)
Video Transmission Properties And Port
Coaxial Video Connector	BNC-M
Twisted-pair Video Connector	Push-terminal
Compatible Format	HDCVI, HDTVI, AHD, CVBS
Resolution	720P/1080P/4MP/5MP/8MP 4K
Anti-interference	＞60db
Protection
ESD	1a contact discharge electricity level 3
	1b air discharge electricity level 3
	Per:IEC61000-4-2
Coaxial Cable Connector	2KV(common-code) Per:IEC61000-4-5
UTP Cable Connector	2KV(different-code),4KV(common-code),Per:IEC61000-4-5
Impedance
BNC Male	75 ohms
UTP Cable	100 ohms
Physical Properties
Shell	ABS
Color	Black
N.W.	23G
Stability
MTBF	＞10000H
Environmental
Operating Temperature	-10~55℃
Storage Temperature	-20~70℃
Humidity	0~95%(non-condensing)
