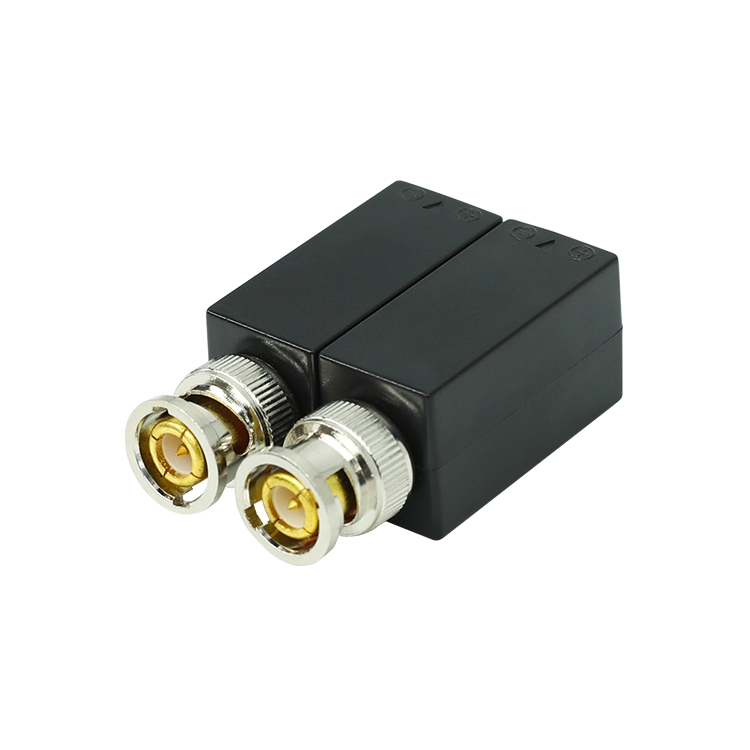

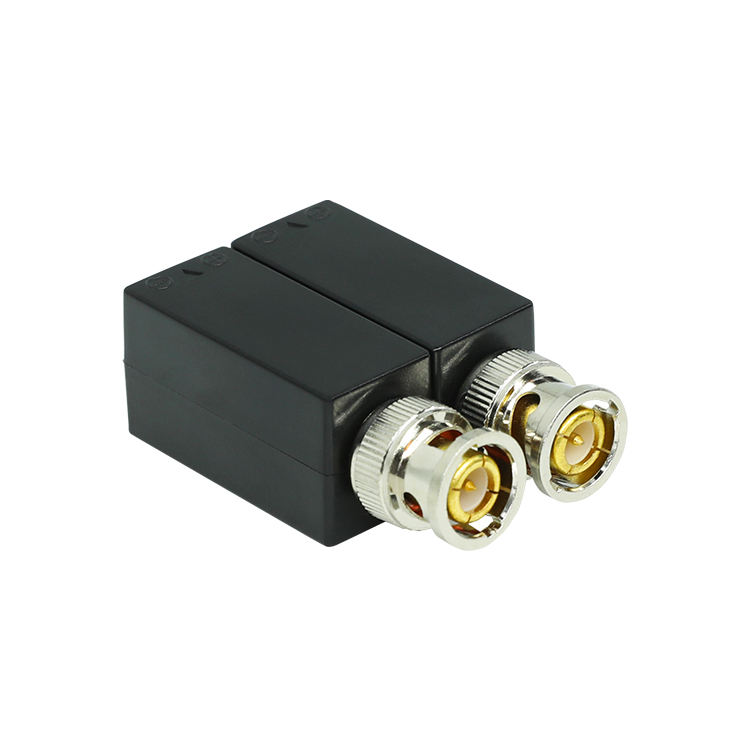

8MP 5MP Mini Passive HD Video Balun


Press-fitting terminal,1 channel passive HD Balun for TVI/CVI/AHD/CVBS
Color HD video up to 500m with active receiver
Color HD video transmission distance with passive transceiver:
HDCVI 720P: 400M / 1080P: 250M; 4Mp:200M ; 8MP: 180M
HDTVI 720P/1080P: 250M; 5Mp:200M ;  8MP: 180M
AHD 720P: 350M / 1080P: 200M;5Mp:200M;8MP: 180M
Built in TVS surge protection
Description of this 8MP 5MP 4MP 3MP mini Passive single HD video balun Terminal


201P-HD-A1 video balun is a passive 1 channel device that allows the transmission of real-time CCTV HDCVI,HDTVI,AHD and CVBS analog video signal via unshielded Twisted Paired (UTP) cable.

The unparralled interference rejection and low emissions of the 201P-HD-A1 allow video signals to coexist in the same wire bundle as datacom,telephone,or damaging votage spikes.

Mini design,strong enviroment PCB board,copper core,super lighting protection, ESD builted make you better and safety video balun.

Widely used in security, teaching industry and other complex system environment.


Specification of this 8MP 5MP 4MP 3MP mini Passive single HD video balun Terminal
Model 201P-HD-A1
Properties
Transmission Signal 1 channel
Transmission Distance (Max) HDCVI 720P:400M / 1080P:250M /4MP:200M / 4K 8MP:180M (Max)
HDTVI 720P/1080P:250M / 5MP:200M / 4K 8MP:180M(Max)
AHD 720P:350M / 1080P:200M / 5MP:200M / 4K 8MP:180M(Max)
Category Type UTP CAT 5E/6 (R10Ω/100M)
Video Transmission Properties And Port
Coaxial Video Connector BNC-M

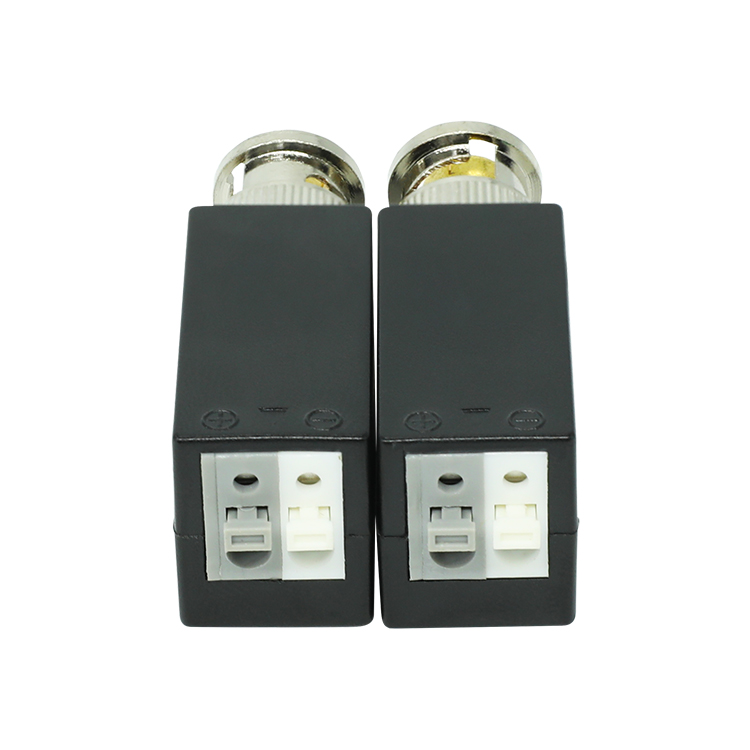

Twisted-pair Video Connector Push-terminal
Compatible Format HDCVI, HDTVI, AHD, CVBS
Resolution 720P/1080P/4MP/5MP/8MP 4K
Anti-interference 60db
Protection
ESD 1a contact discharge electricity level 3
1b air discharge electricity level 3
Per:IEC61000-4-2
Coaxial Cable Connector 2KV(common-code) Per:IEC61000-4-5
UTP Cable Connector 2KV(different-code),4KV(common-code),Per:IEC61000-4-5
Impedance
BNC Male 75 ohms
UTP Cable 100 ohms
Physical Properties
Shell ABS
Color Black
N.W. 23G
Stability
MTBF 10000H
Environmental
Operating Temperature -10~55
Storage Temperature -20~70
Humidity 0~95%(non-condensing)
