8MP AHD CVI TVI Video balum Transceiver

Home / Products / HD Transmission / Passive 1ch HD Video Balun / Detail

..
..
  • ..
  • ..
  • ..
  • ..

8MP AHD CVI TVI Video balum Transceiver


Press-fitting terminal,1 channel passive HD Balun for TVI/CVI/AHD/CVBS
Color HD video up to 500m with active receiver
Color HD video transmission distance with passive transceiver:
HDCVI 720P: 400M / 1080P: 250M; 4Mp:200M ; 8MP: 180M
HDTVI 720P/1080P: 250M; 5Mp:200M ;  8MP: 180M
AHD 720P: 350M / 1080P: 200M;5Mp:200M;8MP: 180M
Built in TVS surge protection
Description of this Economical Press-Fitting Terminal Model 1 Channel HD Balun

TT-201P-HD-C1 cctv passive video balun is a passive (non-amplified) device that allows the transmission of real-time CCTV HD video signal via cost-effective Unshielded Twisted Paired (UTP) cable.The TT-201P-HD-C Terminal Model HD Video Balun is compatible with all HD-TVI, HD-CVI, AHD and CVBS analog cameras.

Push-pin terminal block allows tool-less connection of UTP cable output. Used in pairs, TT-201P-HD-C1 1 Channel HD CCTV Balun eliminates costly and bulky coaxial cable.

The superior interference rejection and low emissions of the TT-201P-HD-C1 Press-Fitting Terminal HD Video Balun ,allow video signals to coexist in the same wire bundle as telephone, datacom, or damaging voltage spikes. 1 Channel Passive Video Balun crosstalk and noise immunity ensure quality video signals. Widely used in security, teaching industry and other complex system environment.

Specification of this Economical Press-Fitting Terminal Model 1 Channel HD Balun

Model TT-201P-HD-C1
Properties
Transmission Signal 1 channel
Transmission Distance (Max) HDCVI 720P: 400M / 1080P: 250M; 4Mp:200M ;5Mp:200M; 8MP: 180M
HDTVI 720P/1080P: 250M; 5Mp:200M ; 8MP: 180M
AHD 720P: 350M / 1080P: 200M;5Mp:200M; 8MP: 180M
Category Type UTP CAT 5E/6 (R10Ω/100M)
Video Transmission Properties And Port
Coaxial Video Connector BNC-M
Twisted-pair Video Connector Press-fitting terminal
Compatible Format HDCVI, HDTVI, AHD, CVBS
Resolution 720P/1080P/4MP/5MP/8MP 4K
Anti-interference 60db
Protection
ESD 1a contact discharge electricity level 3
1b air discharge electricity level 3
Per:IEC61000-4-2
Coaxial Cable Connector 2KV(common-code) Per:IEC61000-4-5
UTP Cable Connector 2KV(different-code),4KV(common-code),Per:IEC61000-4-5
Impedance
BNC Male 75 ohms
UTP Cable 100 ohms
Physical Properties
Shell ABS
Color Black
N.W. 50G
Stability
MTBF 10000H
Environmental
Operating Temperature -10~55
Storage Temperature -20~70
Humidity 0~95%(non-condensing)

Application of this Economical Press-Fitting Terminal Model 1 Channel HD Balun

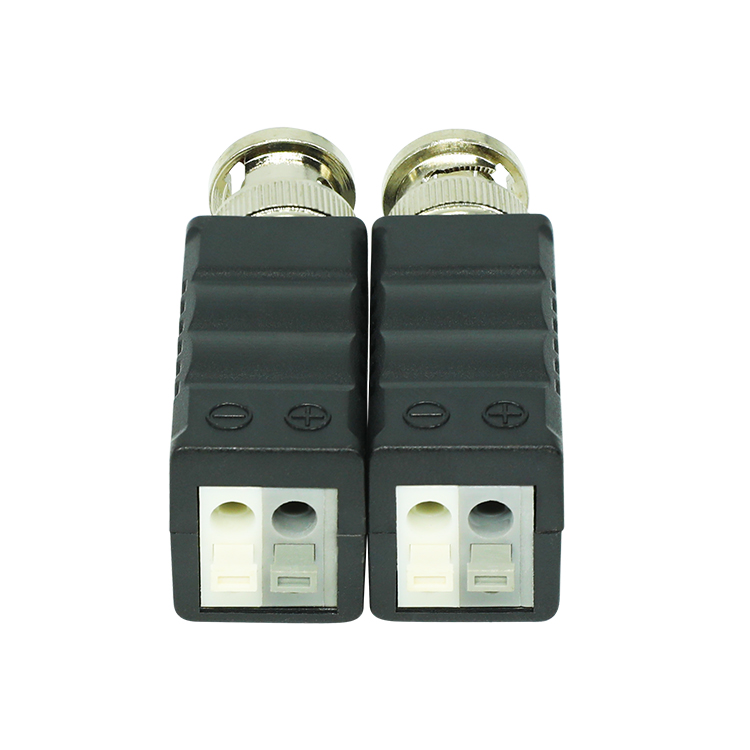

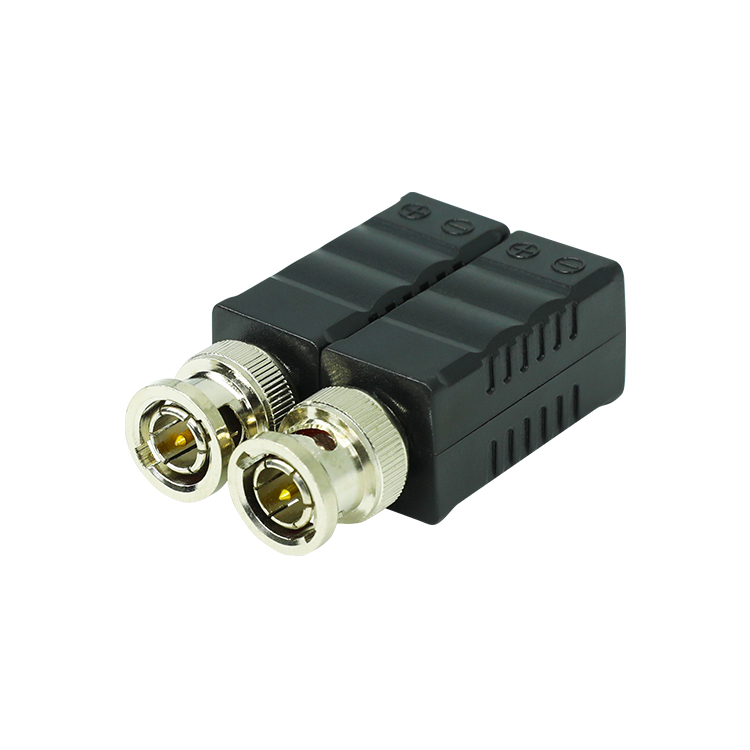

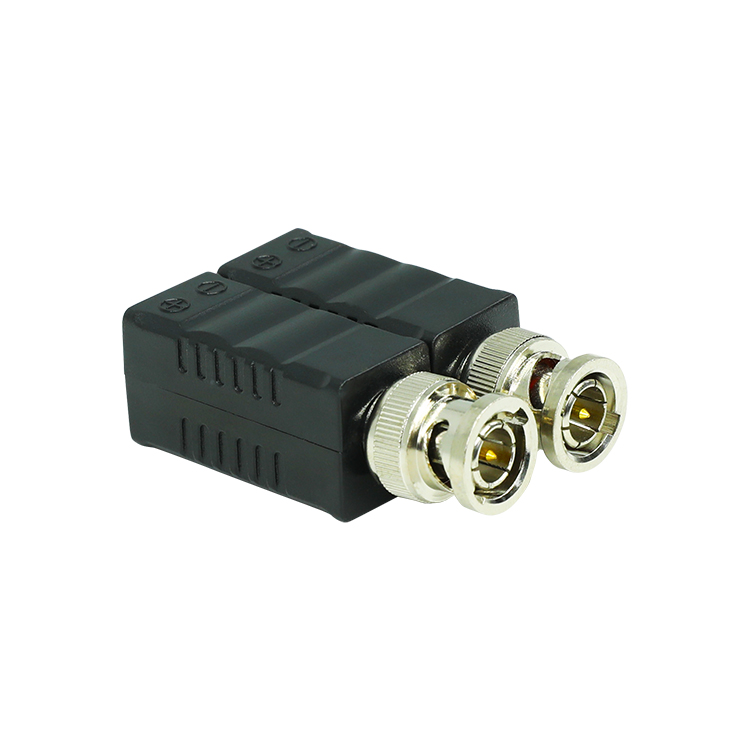

Pictures of this Economical Press-Fitting Terminal Model 1 Channel HD Balun
