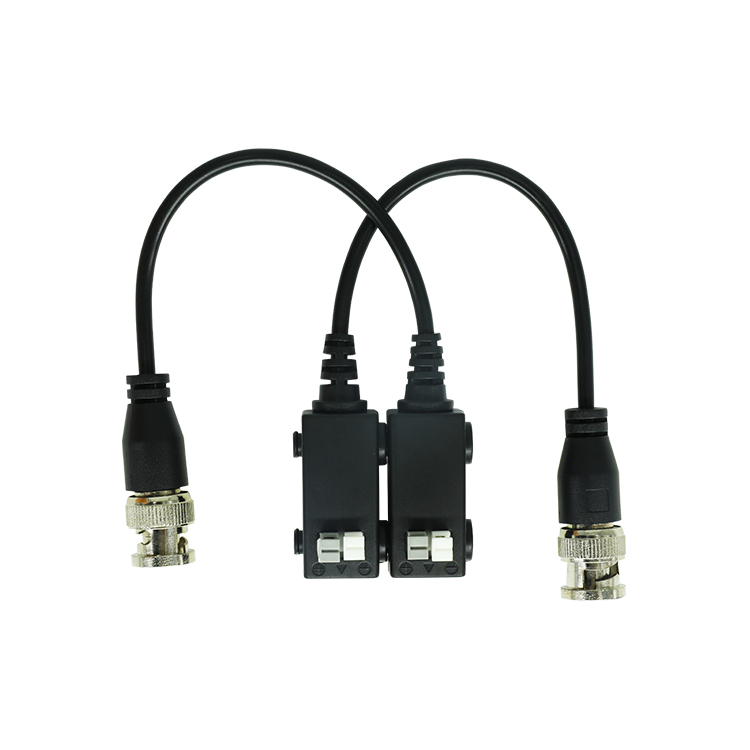

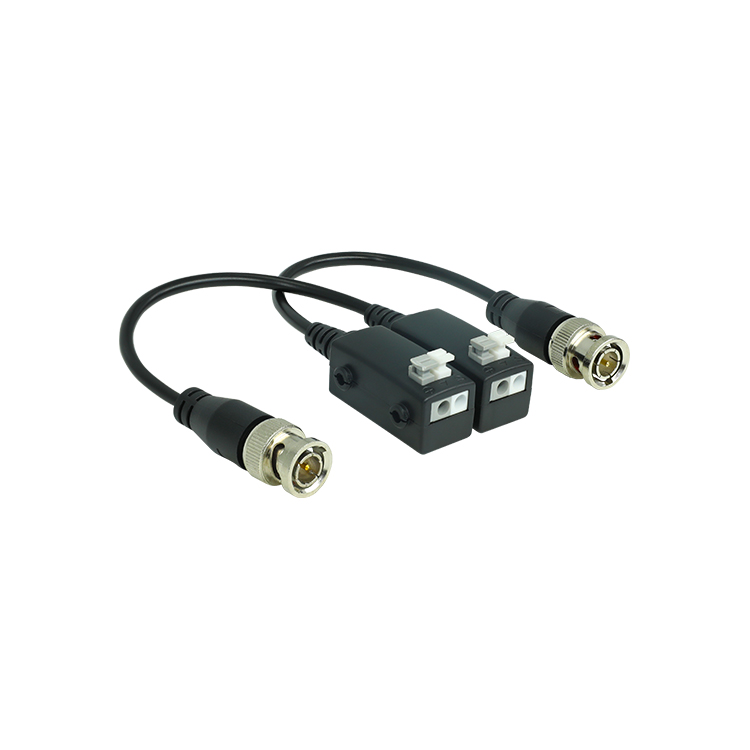

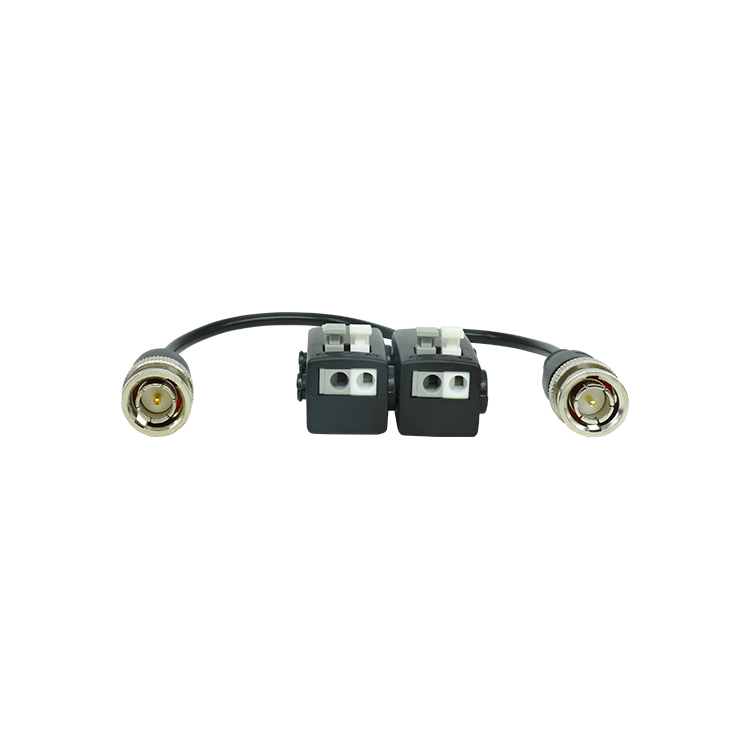

●Upside-press-fitting terminal,1 channel passive HD transceiver for TVI/CVI/AHD/CVBS |
●Color HD video up to 500m with active receiver |
●Color HD video transmission distance with passive transceiver: HDCVI 720P: 400M / 1080P: 250M; 4Mp:200M ; 8MP: 180M HDTVI 720P/1080P: 250M; 5Mp:200M ; 8MP: 180M AHD 720P: 350M / 1080P: 200M;5Mp:200M;8MP: 180M |
●Built in TVS surge protection |
201P-HD-G2 cctv passive video balun is a passive (non-amplified) device that allows the transmission of real-time CCTV HD video signal via cost-effective Unshielded Twisted Paired (UTP) cable. The 201P-HD-G2 CCTV Passive Video Transceiver is compatible with all HD-TVI, HD-CVI, AHD and CVBS analog cameras.
Upside push-pin terminal block allows easy connection of UTP cable output. Used in pairs, 201P-HD-G2 1CH Passive HD Video Balun eliminates costly and bulky coaxial cable.
The superior interference rejection and low emissions of the 201P-HD-G2 allow video signals to coexist in the same wire bundle as telephone, datacom, or damaging voltage spikes. 1CH HD Video Balun Transceiver crosstalk and noise immunity ensure quality video signals. Widely used in security, teaching industry and other complex system environment.
Model | TT-201P-HD-G2 |
Properties | |
Transmission Signal | 1 channel |
Transmission Distance (Max) | HDCVI 720P:400M / 1080P:250M /4MP:200M / 4K 8MP:200M |
HDTVI 720P/1080P:250M / 5MP:200M / 4K 8MP:150M | |
AHD 720P:350M / 1080P:200M / 5MP:200M / 4K8MP:150M | |
Category Type | UTP CAT 5E/6 (R<10Ω/100M) |
Video Transmission Properties And Port | |
Coaxial Video Connector | BNC-M |
Twisted-pair Video Connector | Push-terminal |
Compatible Format | HDCVI, HDTVI, AHD, CVBS |
Resolution | 720P/1080P/4MP/5MP/8MP 4K |
Anti-interference | >60db |
Protection | |
ESD | 1a contact discharge electricity level 3 |
1b air discharge electricity level 3 | |
Per:IEC61000-4-2 | |
Coaxial Cable Connector | 2KV(common-code) Per:IEC61000-4-5 |
UTP Cable Connector | 2KV(different-code),4KV(common-code),Per:IEC61000-4-5 |
Impedance | |
BNC Male | 75 ohms |
UTP Cable | 100 ohms |
Physical Properties | |
Shell | ABS |
Color | Black |
N.W. | 25G |
Stability | |
MTBF | >10000H |
Environmental | |
Operating Temperature | -10~55℃ |
Storage Temperature | -20~70℃ |
Humidity | 0~95%(non-condensing) |
