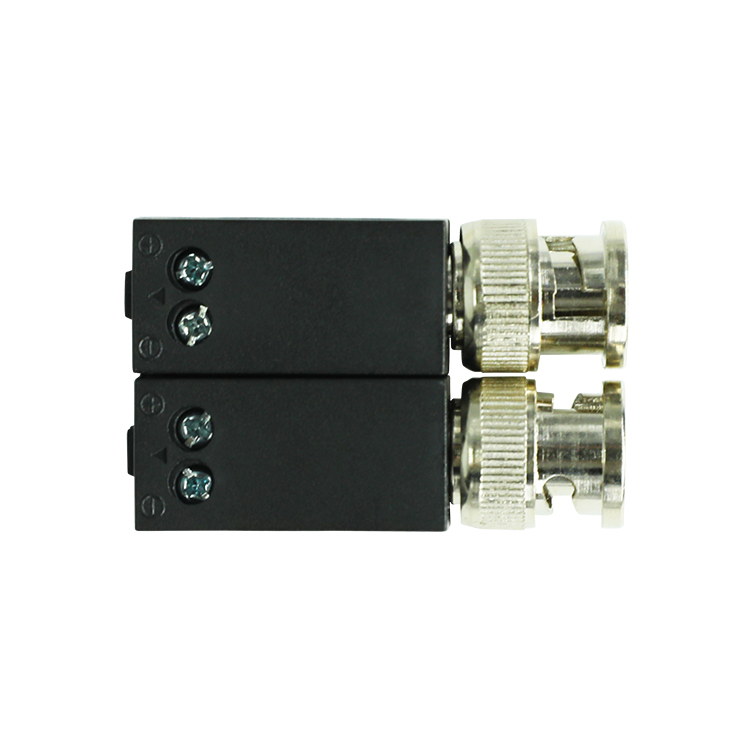

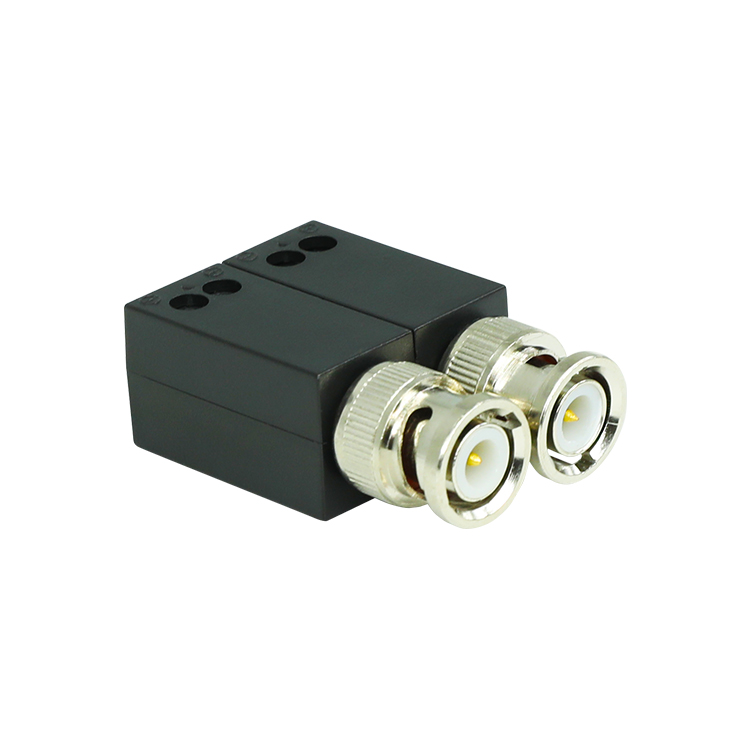

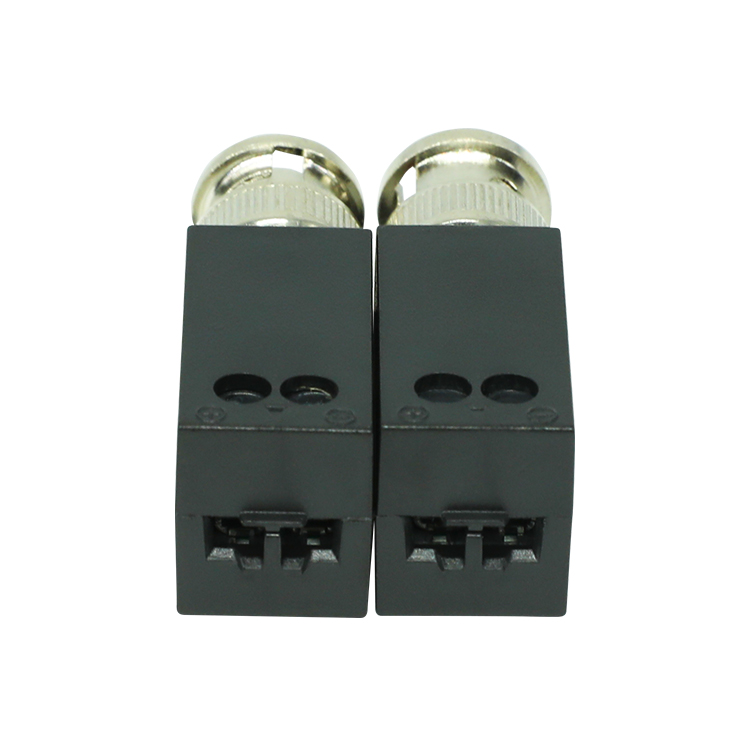

TT-201P-HD-E1 cctv passive video balun is a passive (non-amplified) device that allows the transmission of real-time CCTV HD video signal via cost-effective Unshielded Twisted Paired (UTP) cable. The TT-201P-HD-E1 CCTV Accessories Video Balun is compatible with all HD-TVI, HD-CVI, AHD and CVBS analog cameras.

Single Channel Hd Video Balun has a mini-coax pigtail lead which allows quick mounting onto fixed cameras, allows in-camera mounting in most dome cameras and allows flexible connection with DVR. Screw-pin terminal block allows easy connection of UTP cable output. Used in pairs, TT-201P-HD-E1 Video Balun For TVI CVI AHD CVBS, eliminates costly and bulky coaxial cable.

The superior interference rejection and low emissions of the TT-201P-HD-E1 Hd CCTV Video Balun,allow video signals to coexist in the same wire bundle as telephone, datacom, or damaging voltage spikes. CCTV Accessories Single Channel Balun crosstalk and noise immunity ensure quality video signals. Widely used in security, teaching industry and other complex system environment.





Model	TT-201P-HD-E1
Properties
Transmission Signal	1 channel
Transmission Distance (Max)	HDCVI 720P: 400M / 1080P: 250M; 4Mp:200M ;5Mp:200M; 8MP: 180M
	HDTVI 720P/1080P: 250M; 5Mp:200M ; 8MP: 180M
	AHD 720P: 350M / 1080P: 200M;5Mp:200M; 8MP: 180M
Category Type	UTP CAT 5E/6 (R＜10Ω/100M)
Video Transmission Properties And Port
Coaxial Video Connector	BNC-M
Twisted-pair Video Connector	Screw terminal
Compatible Format	HDCVI, HDTVI, AHD, CVBS
Resolution	720P/1080P/4MP/5MP/8MP 4K
Anti-interference	＞60db
Protection
ESD	1a contact discharge electricity level 3
	1b air discharge electricity level 3
	Per:IEC61000-4-2
Coaxial Cable Connector	2KV(common-code) Per:IEC61000-4-5
UTP Cable Connector	2KV(different-code),4KV(common-code),Per:IEC61000-4-5
Impedance
BNC Male	75 ohms
UTP Cable	100 ohms
Physical Properties
Shell	ABS
Color	Black
N.W.	50G
Stability
MTBF	＞10000H
Environmental
Operating Temperature	-10~55℃
Storage Temperature	-20~70℃
Humidity	0~95%(non-condensing)
