5MP AHD CVI TVI HD Video transmitter balun

No power required, simplified project wiring
Compatible with HDCVI/ HDTVI/ AHD
Plug and play, real-time transmit CCTV HD video signal, video is high quality and stable
Anti-interference, super lighting protection, ESD
ABS outer shell, convenient to use in intensive project
Push-terminal with pigtail, easier for installation
Description of this HD Video Transceiver Connect UTP CAT5 5E 6

TT-201P-HD-D2 video balun is a passive (non-amplified) device that allows the transmission of real-time CCTV HD video signal via cost-effective Unshielded Twisted Paired (UTP) cable. The TT-201P-HD-D2 is compatible with all HD-TVI, HD-CVI, AHD and CVBS analog cameras.

Used in pairs, TT-201P-HD-D2 eliminates costly and bulky coaxial cable. The superior interference rejection and low emissions of the TT-201P-HD-D2 allow video signals to coexist in the same wire bundle as telephone, datacom, or damaging voltage spikes. Its crosstalk and noise immunity ensure quality video signals. Widely used in security, teaching industry and other complex system environment.

Specification of this HD Video Transceiver Connect UTP CAT5 5E 6

Model TT-201P-HD-D2
Properties
Transmission Signal 1 channel
Transmission Distance (Max) HDCVI 720P: 400M / 1080P: 250M; 4Mp:200M ;5Mp:200M; 8MP: 180M
HDTVI 720P/1080P: 250M; 5Mp:200M ; 8MP: 180M
AHD 720P: 350M / 1080P: 200M;5Mp:200M; 8MP: 180M
Category Type UTP CAT 5E/6 (R10Ω/100M)
Video Transmission Properties And Port
Coaxial Video Connector BNC-M
Twisted-pair Video Connector Press-fitting terminal
Compatible Format HDCVI, HDTVI, AHD, CVBS
Resolution 720P/1080P/4MP/5MP/8MP 4K
Anti-interference 60db
Protection
ESD 1a contact discharge electricity level 3
1b air discharge electricity level 3
Per:IEC61000-4-2
Coaxial Cable Connector 2KV(common-code) Per:IEC61000-4-5
UTP Cable Connector 2KV(different-code),4KV(common-code),Per:IEC61000-4-5
Impedance
BNC Male 75 ohms
UTP Cable 100 ohms
Physical Properties
Shell ABS
Color Black
N.W. 50G
Stability
MTBF 10000H
Environmental
Operating Temperature -10~55
Storage Temperature -20~70
Humidity 0~95%(non-condensing)

Application of this HD Video Transceiver Connect UTP CAT5 5E 6

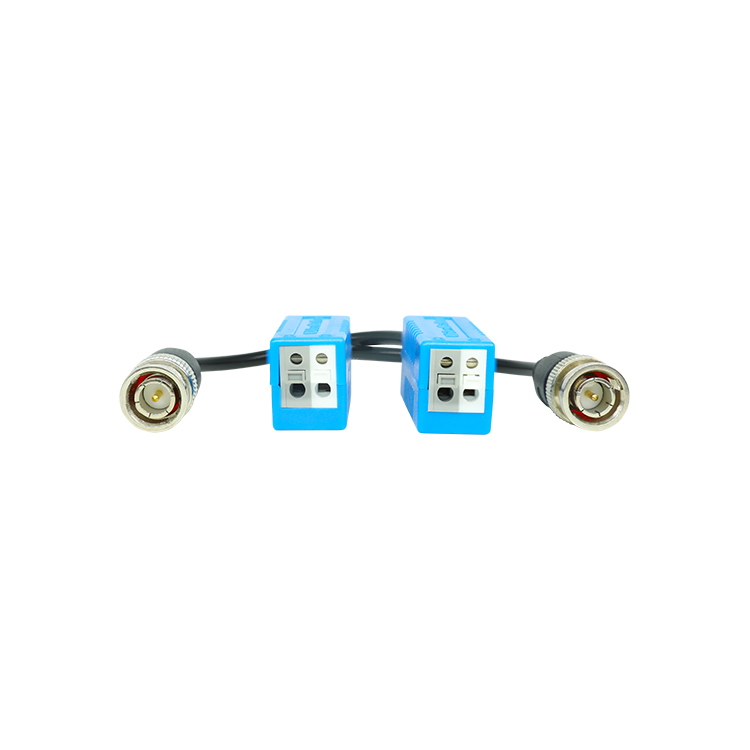

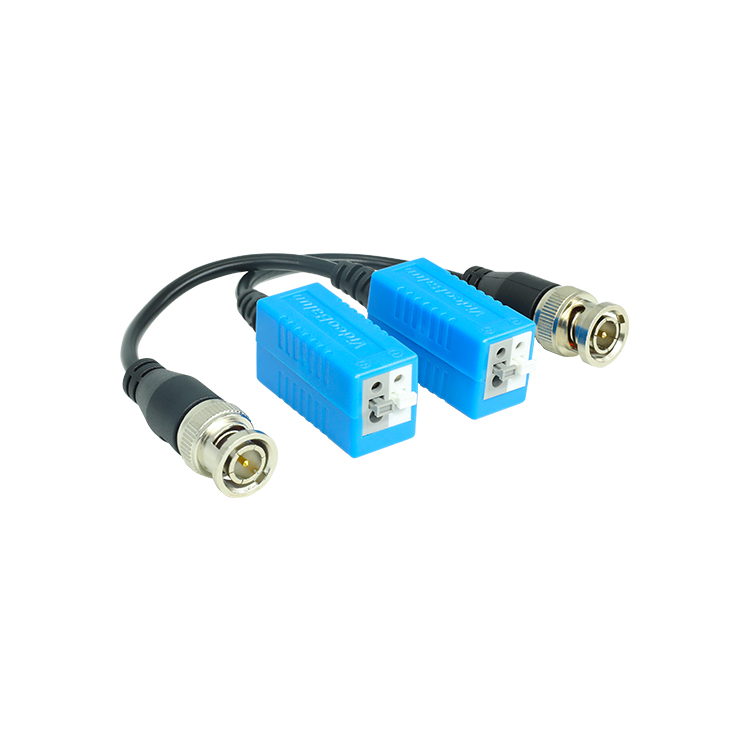

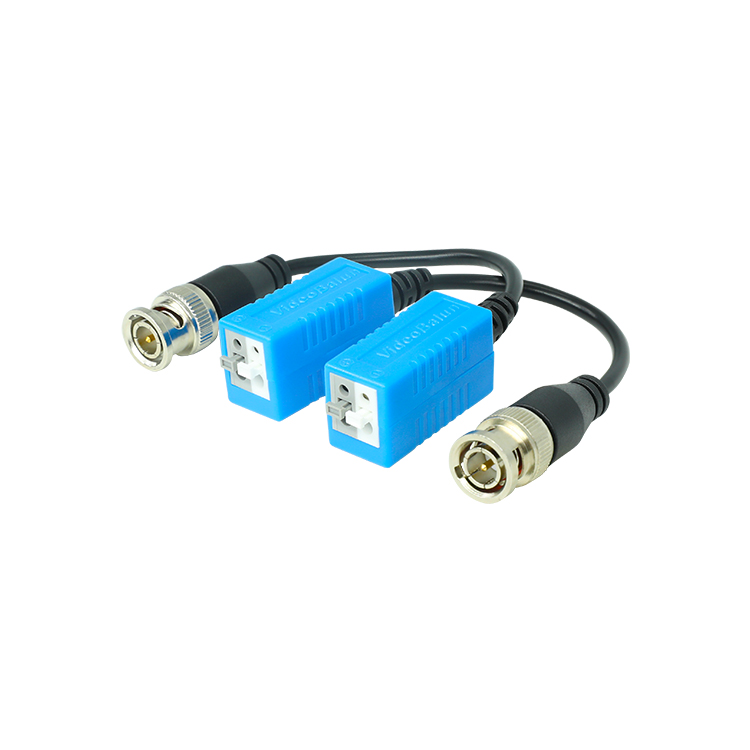

Pictures of this HD Video Transceiver Connect UTP CAT5 5E 6
