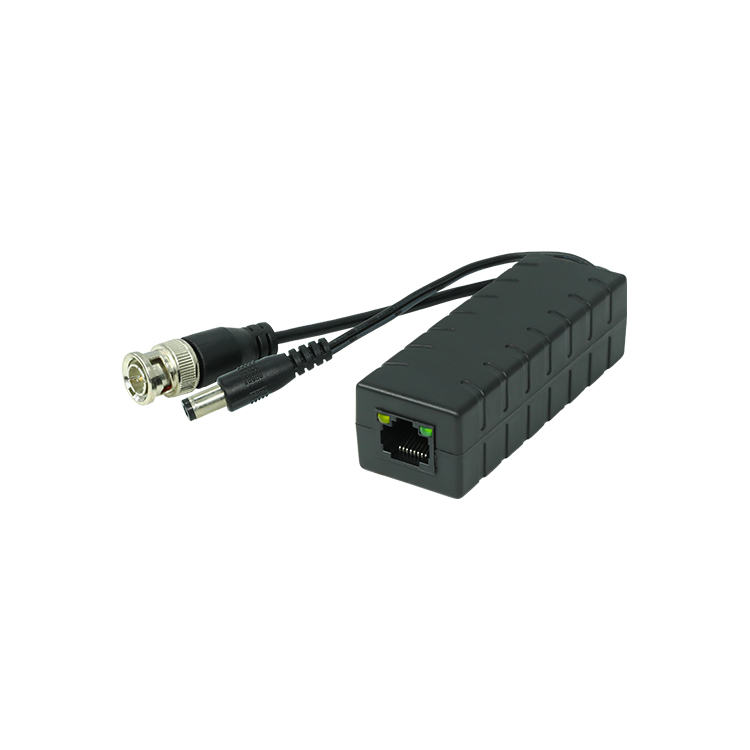

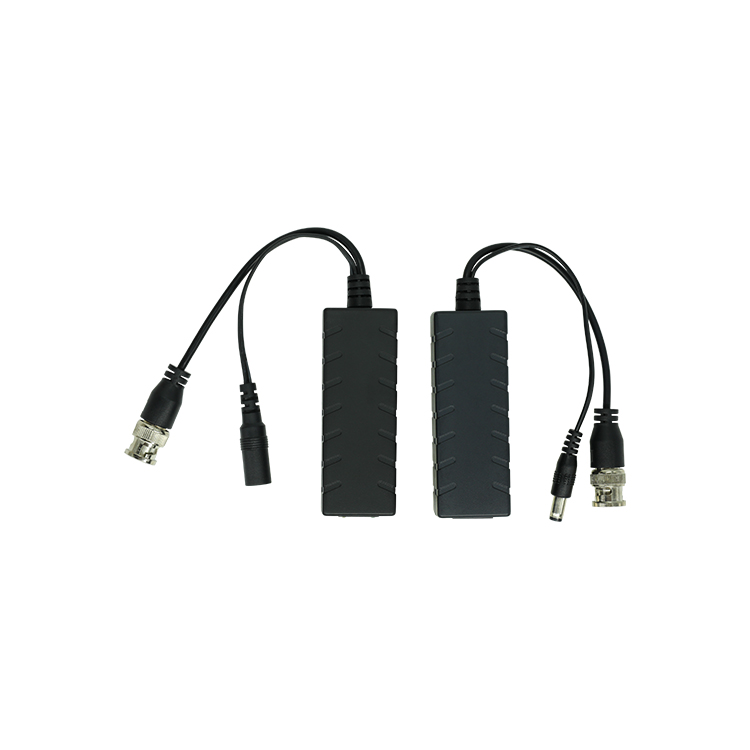

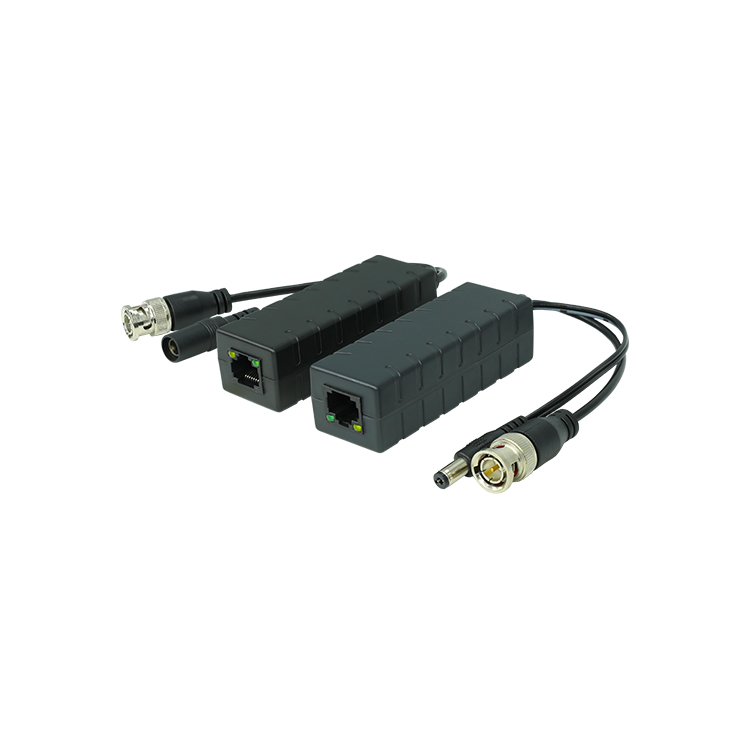

Description of this HD Video Power RJ45 balun 1000V power isolator

The device is a passive(non-amplified) HD video transmitter combined with a 24-36V DC to 12DC converter.
Built-in 1000V isolated power supply, eliminate interference effectively when centralized power supply

> Input voltage:24-36V DC; 15-24V AC; Output max 12V 15W(Input voltage=36V)
> Supply 1CH stably 12V DC power to camera max to 300 meters, simplifi ed project wiring
> Input/output isolater power voltage up to 1000V
> Power efficiency up to 80%
> RJ45 plug for easy installation
> Safety: anti—interference, super surge protection, anti-static, transient protection
> Out design: with extend coaxial cable, easy to install with DVR, RJ45, BNC, DC

Application:
> Security Monitoring System
> Mulitmedia Network Teaching System
> Medical Monitoring Display system
> Industrial Automation Control System
> Banking, securities, financial information display system
> Remote Network server monitoring
> Department store security
> Casing security
> Hospitals, airports and banks
> School campuses

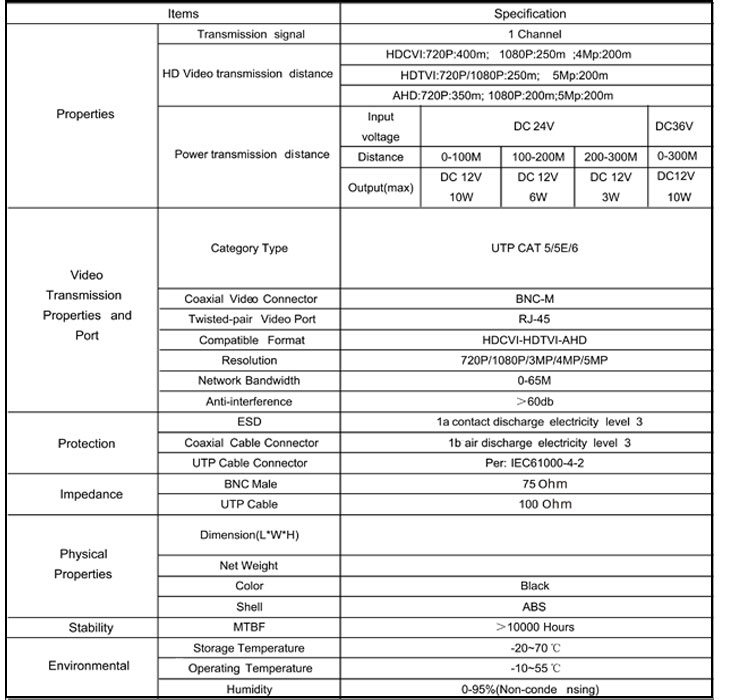

Specification:

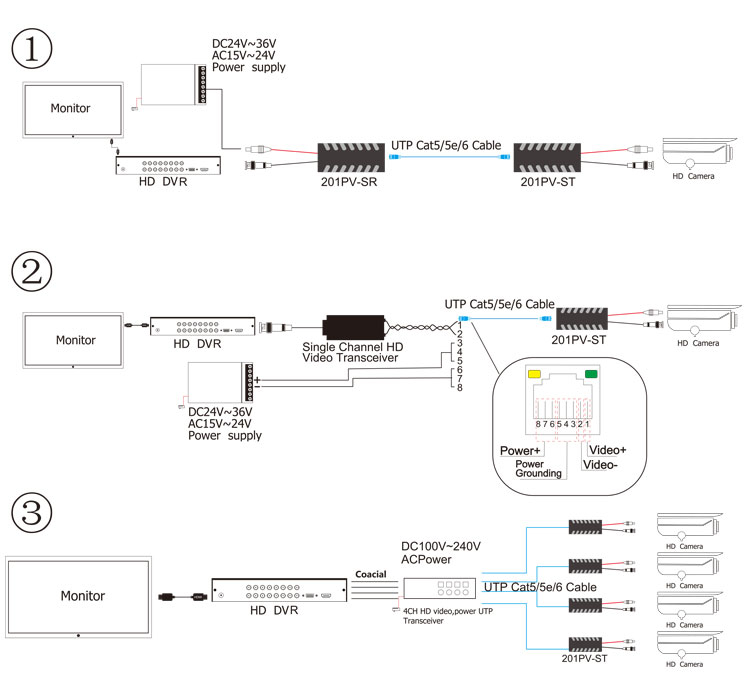

Diagram:
