1ch HD Video RJ45 Power balun
Home / Products / HD Transmission / HD UTP Video Power Transceiver Hub / Detail

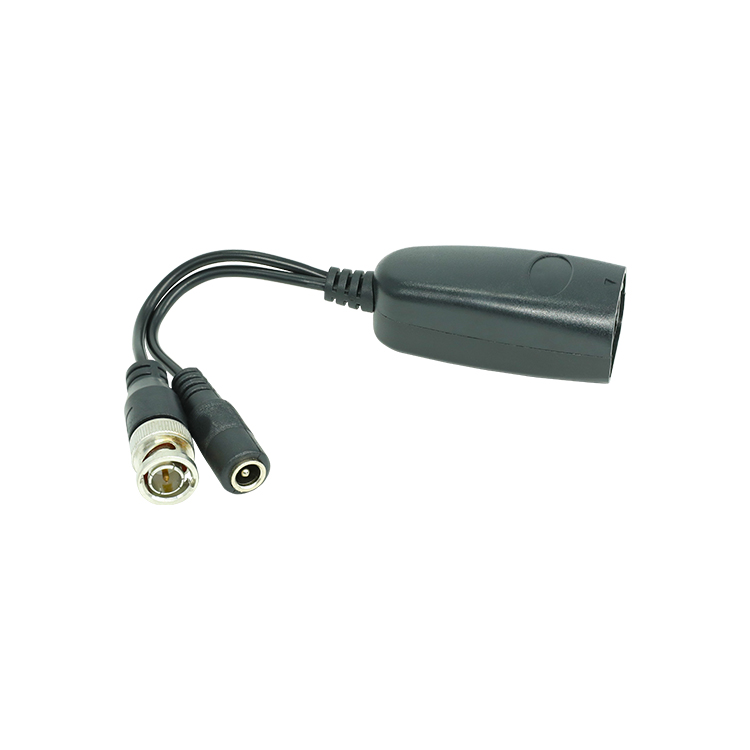

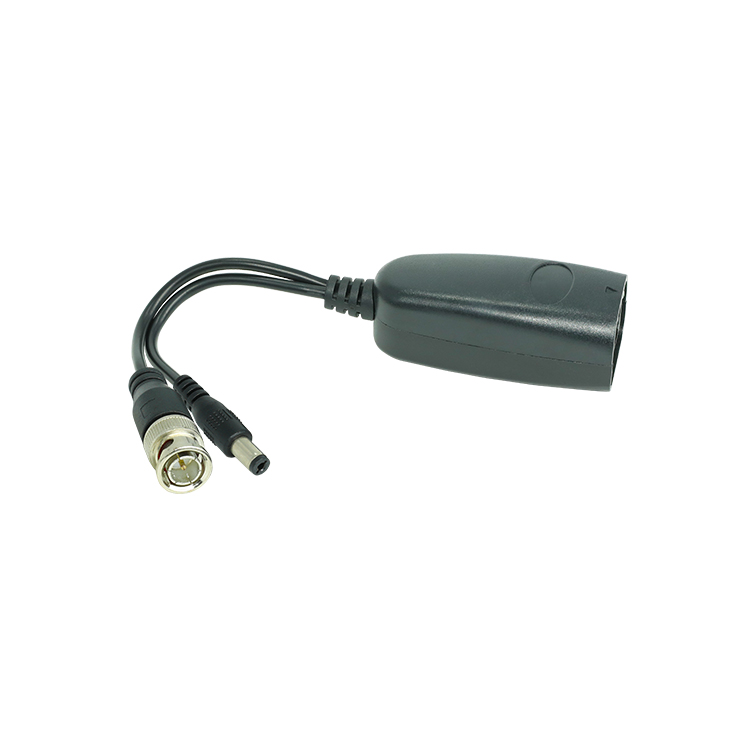

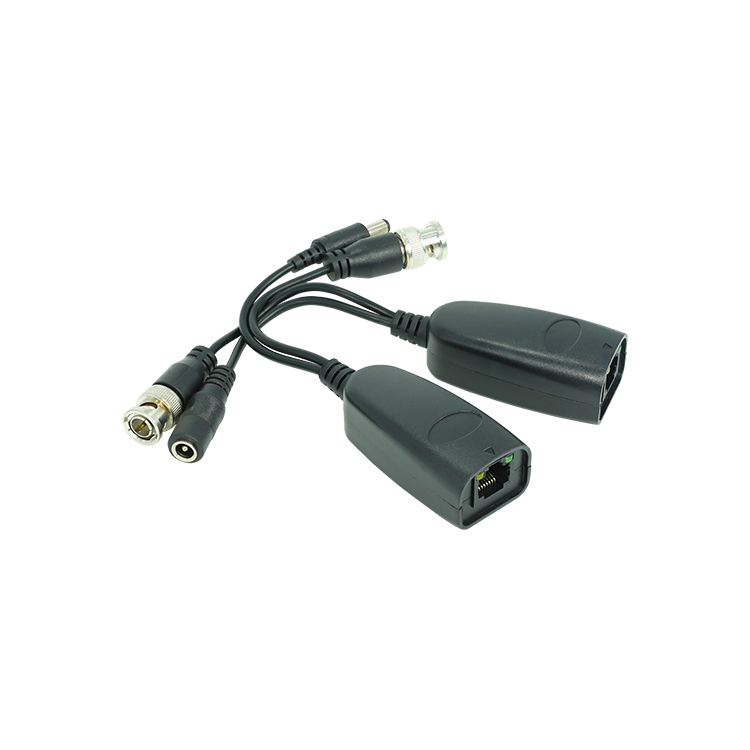

1ch HD Video RJ45 Power balun
●Power transmission up to 100m
●It support power supply on 12V DC or 24V AC
●Built-in surge and transient protection
●Super interference rejection
● LED indicate whether working (green light) or not working (yellow light)
Description of this 1ch HD Video RJ45 Power balun
The receiver is a UTP transceiver that can transfer HD video and power at the same time. The product adopts Cat5/5e/6 as transmission medium to transfer 4 CH HDCVI/HDTVI/AHD signal and provide power for camera in 300m to simplify the project.
Color HD video transmission distance with passive transceiver:
HDCVI 720P: 400M / 1080P: 250M; 4Mp:200M ; 5Mp: 200M ; 8MP: 180M
HDTVI 720P/1080P: 250M; 5Mp:200M ; 8MP: 180M
AHD 720P: 350M / 1080P: 200M;5Mp:200M ; 8MP: 180M
Transmit 12/24V AC/DC Power distance over 100M
Built in TVS for surge protection
Application:
Security Monitoring System
ulitmedia Network Teaching System
Medical Monitoring Display system
Industrial Automation Control System
Banking, securities, financial information display system
Remote Network server monitoring
Department store security
Casing security
Hospitals, airports and banks
School campuses

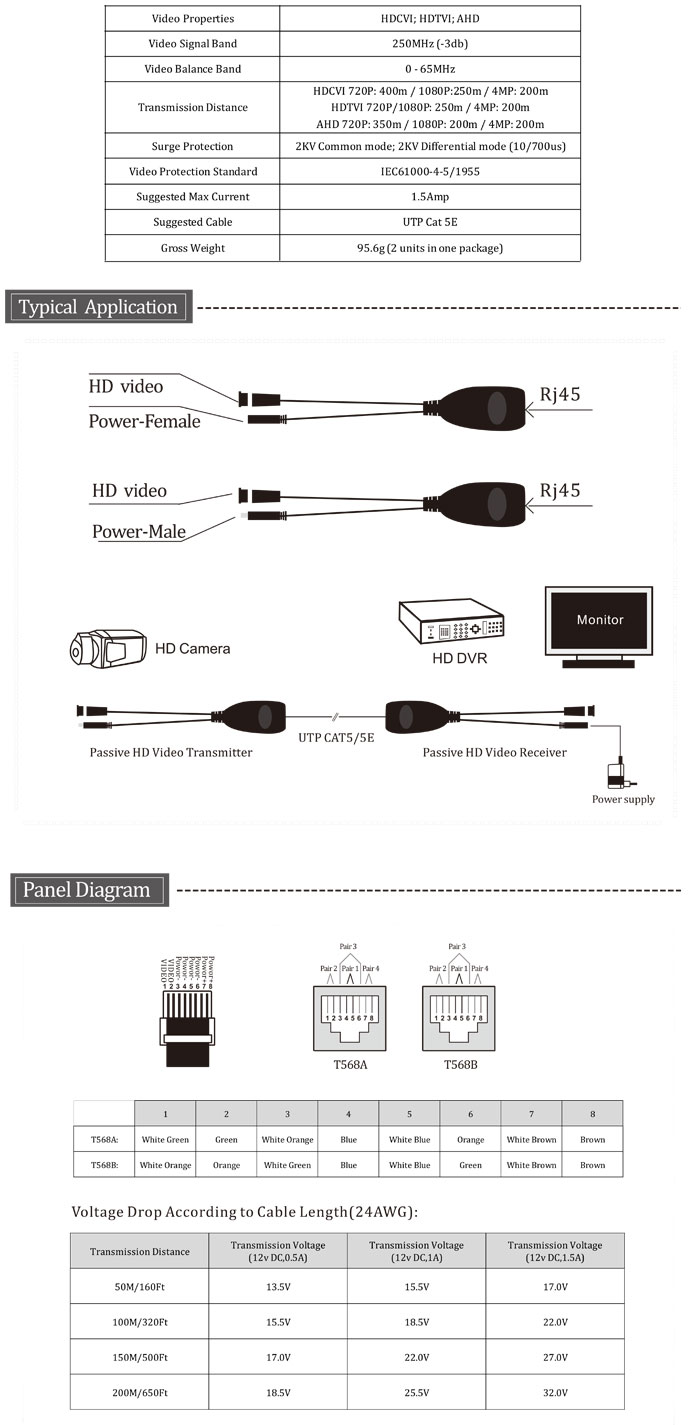

Specification:
The receiver is a UTP transceiver that can transfer HD video and power at the same time. The product adopts Cat5/5e/6 as transmission medium to transfer 4 CH HDCVI/HDTVI/AHD signal and provide power for camera in 300m to simplify the project.
Color HD video transmission distance with passive transceiver:
HDCVI 720P: 400M / 1080P: 250M; 4Mp:200M ; 5Mp: 200M ; 8MP: 180M
HDTVI 720P/1080P: 250M; 5Mp:200M ; 8MP: 180M
AHD 720P: 350M / 1080P: 200M;5Mp:200M ; 8MP: 180M
Transmit 12/24V AC/DC Power distance over 100M
Built in TVS for surge protection
Application:
Security Monitoring System
ulitmedia Network Teaching System
Medical Monitoring Display system
Industrial Automation Control System
Banking, securities, financial information display system
Remote Network server monitoring
Department store security
Casing security
Hospitals, airports and banks
School campuses
Specification:
