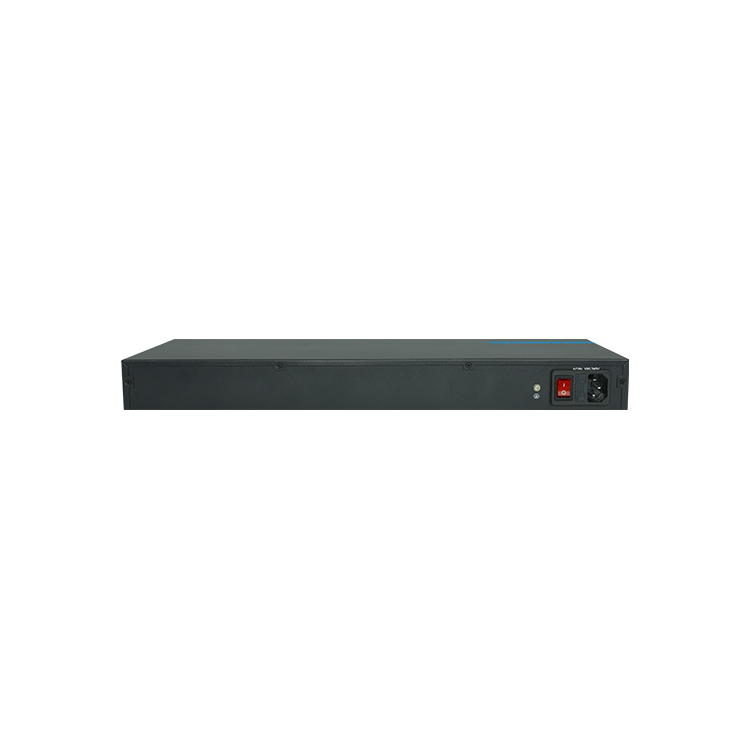

16ch 36VDC Power Supply HD Video Hub

Passive HD Video receiver and 36VDC power server hub,16 channels
Model:TT216PV-HD
Description of this 16 channel HD Video receiver  36VDC Power supply Hub Transceiver

The receiver is a UTP transceiver that can transfer HD video and power at the same time. The product adopts Cat5/5e/6 as transmission medium to transfer 16 CH HDCVI/HDTVI/AHD signal and provide power for camera in 300m to simplify the project. The product features long distance, high quality transmission, strong anti-interference. It’s recommended in CCTV surveillance system.

Features:
> Receive 16 channels HD video and provide power supply
> Compatible with HDCV1/ HDTVI/ AHD
> Output DC36V 320W power supply
> Color HD video transmission distance (passive to passive):
HDCVI: 720P:400m; 1080P:200m;4MP:200m
HDTVI: 720P/1080P:200m;5MP:200m
AHD: 720P:300m; 1080P:200m;5MP:200
> Power supply transmission distance up to 300m, providing max DC 12V 15W for each channel
> Power LED, Overload Protection LED
> Built-in fan for thermal dissipation
> Plug and play, simple installation
> Super surge protection and interference rejection

Specification:

Items

 Specification

Properties

Transmission signal

16 Channel

HD Video transmission

distance

HDCVI:720P:400m;1080P:250m;4Mp:200m

HDTVI:720P/1080P:250m;5Mp:200m;

AHD:720P:350m;1080P:200m;5Mp:200m

Power transmission

distance

300m(Max DC 12V 10W for each camera)

Video

Properties

Video Connector

BNC-M

UTP Cable Connector

RJ-45

Compatible Format

HDCVI-HDTVI-AHD

Resolution

720P/1080P/3MP/4MP/5MP

Network Bandwidth

0-65M

Anti-interference

60db

Protection

ESD

Contact discharge: 6000V

Air discharge: 8000V

IEC61000-4-2 1995

Physical

Properties

Dimension(L*W*H)



Net Weight



Color

Black

Shell

Iron Metal

Stability

MTBF

10000Hours

Environmental

Storage Temperature

-20~88℃

Operating Temperature

0~55℃

Humidity

0-95%(Non-condensing)

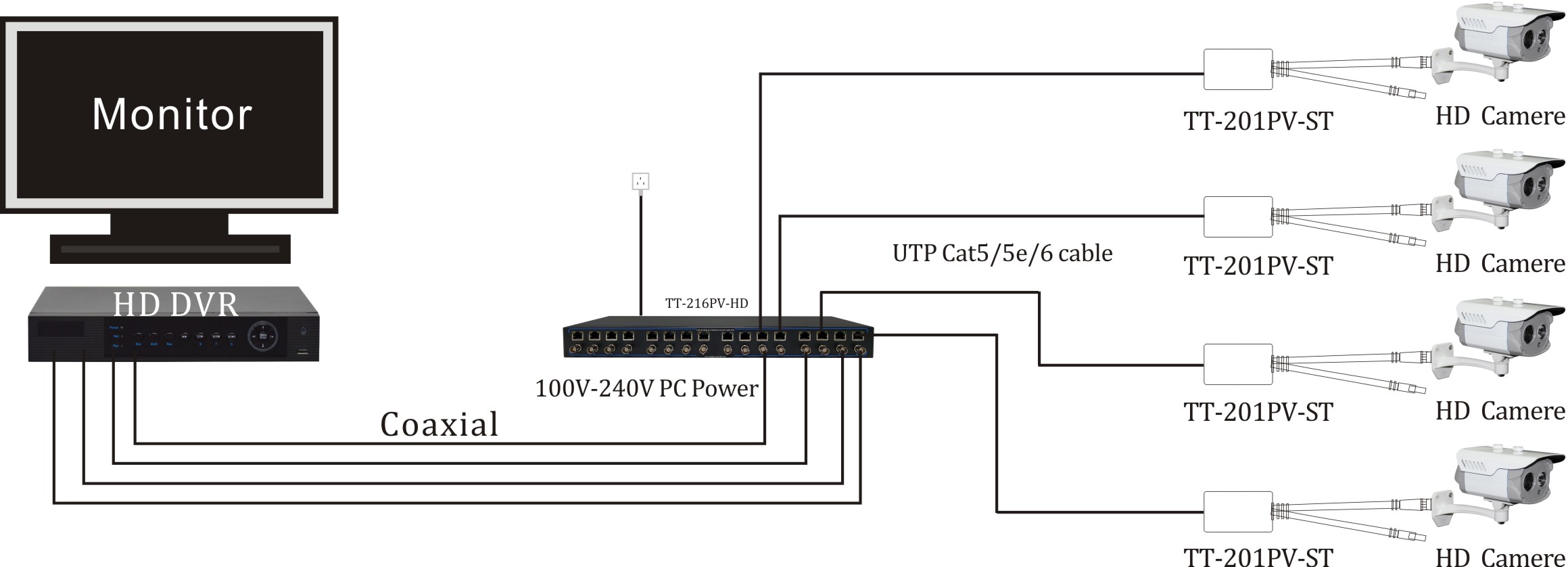

Diagram:


Package Contents:
> 16 Channel Passive HD Video and 36V DC Power Receiver (1 pcs)
> Application manual (1 pcs)
> AC power cable (1 pcs)
> Rack-mounting ear (2 pcs)
> Rack-mounting screws (8 pcs)
> Robber pad (4 pcs)
