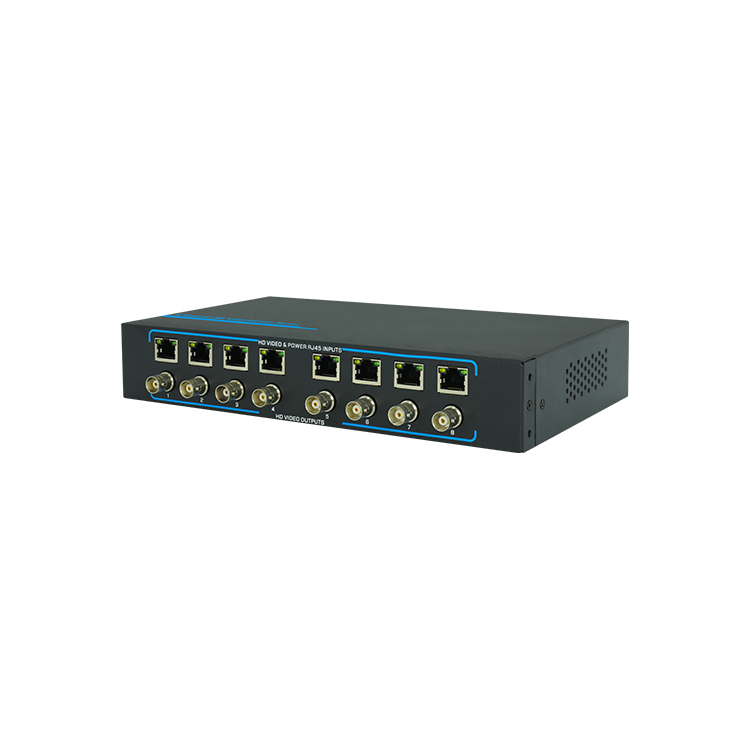

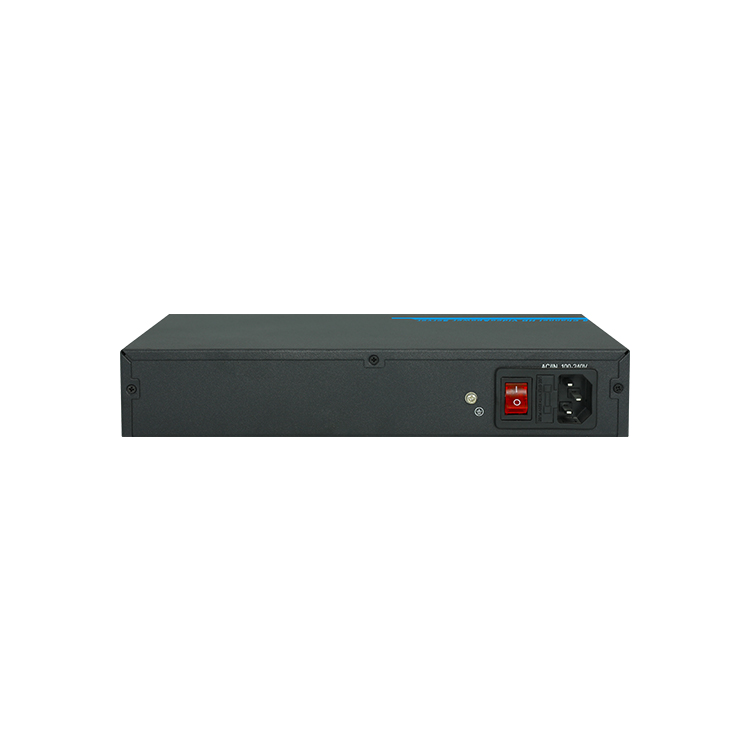

Description of this 8 channel HD Video Power Hub Transceiver

The receiver is a UTP transceiver that can transfer HD video and power at the same time. The product adopts Cat5/5e/6 as transmission medium to transfer 8 CH HDCVI/HDTVI/AHD signal and provide power for camera in 300m to simplify the project. The product features long distance, high quality transmission, strong anti-interference. It’s recommended in CCTV surveillance system.

Features:
> Receive 8 channels HD video and provide power supply
> Compatible with HDCV1/ HDTVI/ AHD
> Output DC36V 150W power supply
> Color HD video transmission distance (passive to passive):
HDCVI: 720P:400m; 1080P:200m;4MP:200m
HDTVI: 720P/1080P:200m;5MP:200m
AHD: 720P:300m; 1080P:200m;5MP:200
> Power supply transmission distance up to 300m, providing max DC 12V 15W for each channel
> Power LED, Overload Protection LED

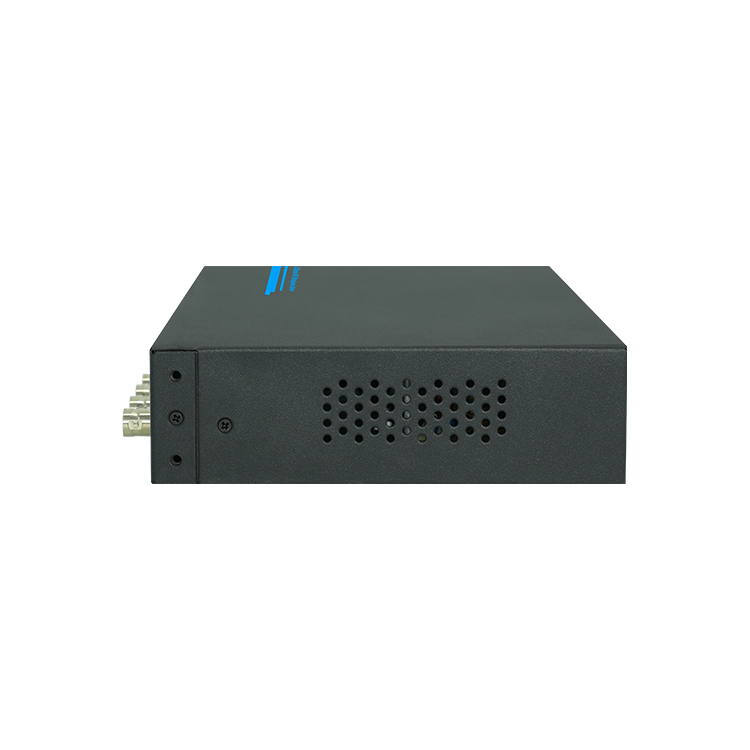

> Built-in fan for thermal dissipation
> Plug and play, simple installation
> Super surge protection and interference rejection

Specification:

Items		Specification
Properties	Transmission signal	8 Channel
	HD Video transmission distance	HDCVI:720P:400m;1080P:250m;4Mp:200m
		HDTVI:720P/1080P:250m;5Mp:200m;
		AHD:720P:350m;1080P:200m;5Mp:200m
	Power transmission distance	300m(Max DC 12V 10W for each camera)
Video Properties	Video Connector	BNC-M
	UTP Cable Connector	RJ-45
	Compatible Format	HDCVI-HDTVI-AHD
	Resolution	720P/1080P/3MP/4MP/5MP
	Network Bandwidth	0-65M
	Anti-interference	＞60db
Protection	ESD	Contact discharge: 6000V Air discharge: 8000V IEC61000-4-2 1995
Physical Properties	Dimension(L*W*H)
	Net Weight
	Color	Black
	Shell	Iron Metal
Stability	MTBF	＞10000Hours
Environmental	Storage Temperature	-20~88℃
	Operating Temperature	0~55℃
	Humidity	0-95%(Non-condensing)

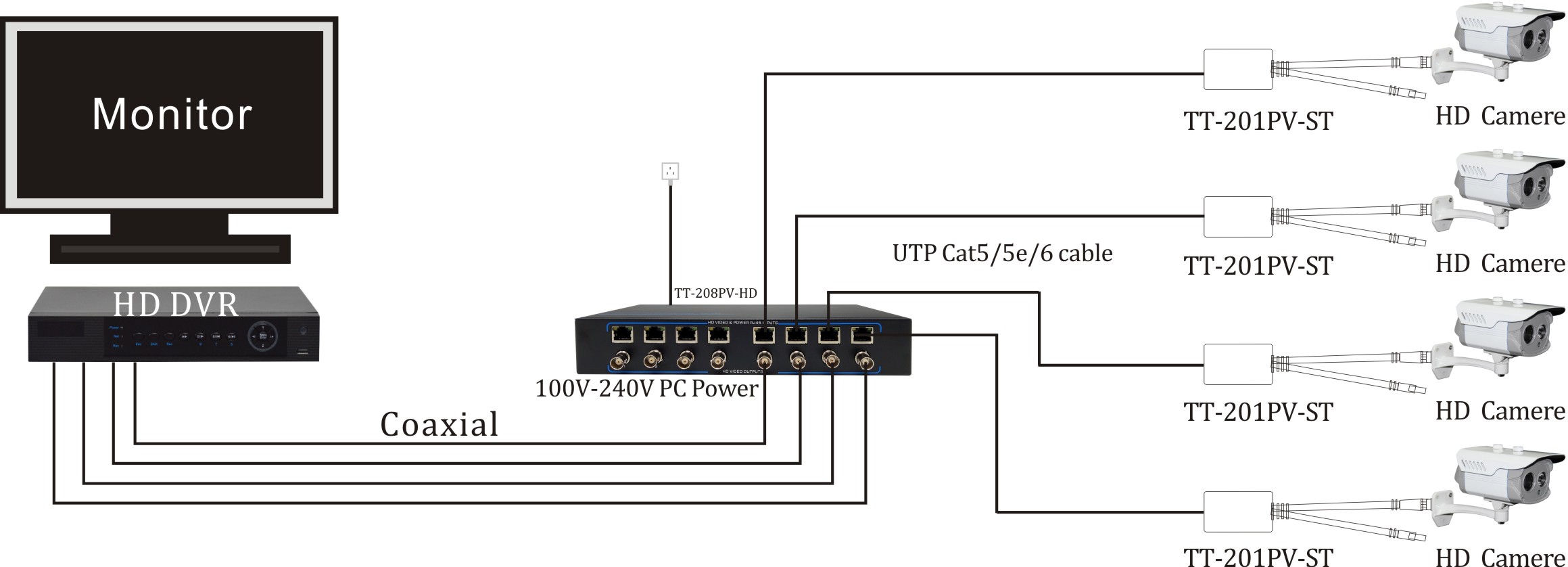

Diagram:



Package Contents:
> 8 Channel Passive HD Video and 36V DC Power Receiver (1 pcs)
> Application manual (1 pcs)
> AC power cable (1 pcs)
> Rack-mounting ear (2 pcs)
> Rack-mounting screws (8 pcs)
> Robber pad (4 pcs)
