800W 24 ports POE switch 1G 2 Uplink 2 SFP

Home / Products / IP Transmission / 1000Mbps POE Ethernet Switch / Detail

..
..
  • ..
  • ..
  • ..
  • ..

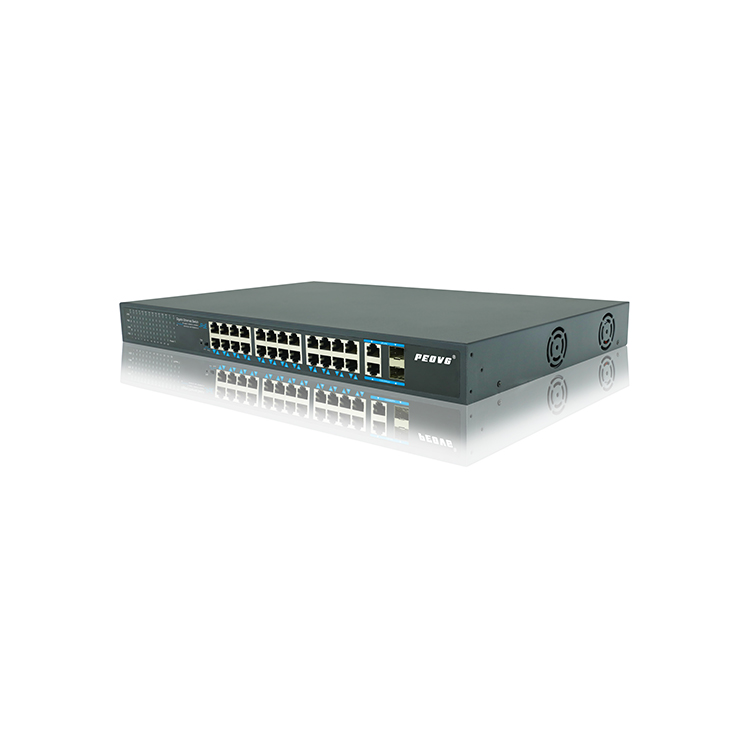

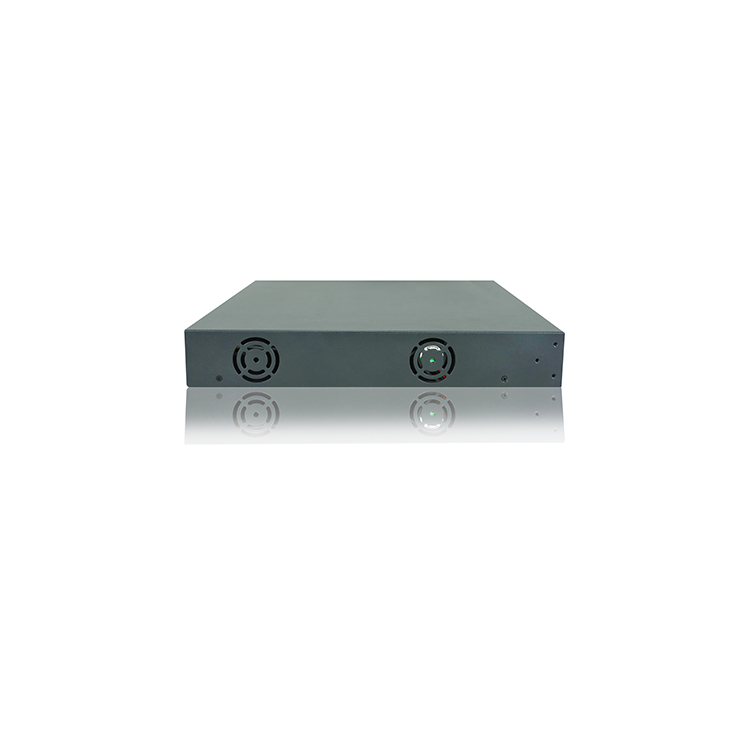

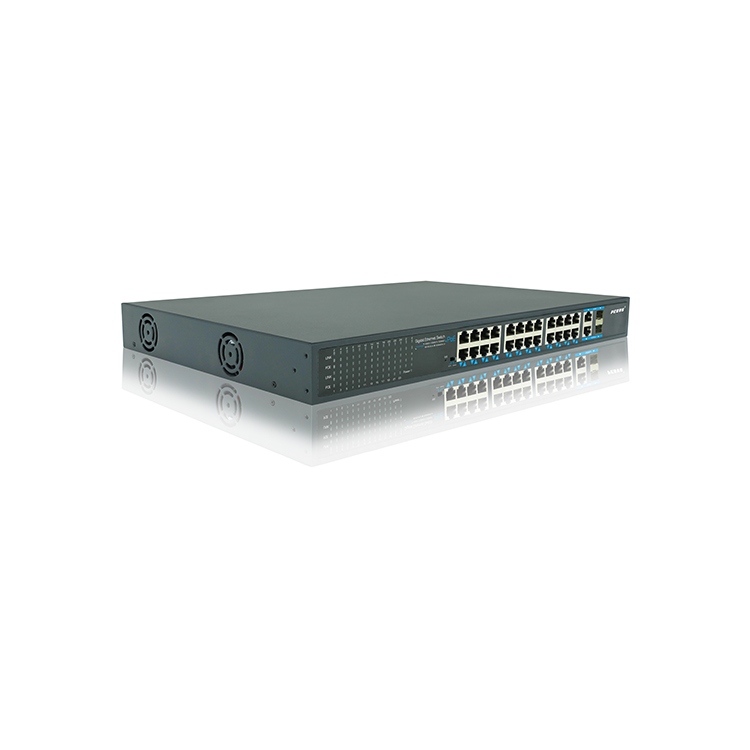

800W 24 ports POE switch 1G 2 Uplink 2 SFP


 28 ports switch with 24 ports 1000Mbit PoE, 2 Gigabit Uplink Ports,2 Gigabit SFP Ports
 PoE data & power transmission distance 100meters
 Maximum 30 watts power for each PoE port
 Uplink port:2 Gigabit Ethernet port,Transmission Distance up to 100m,2 Gigabit Fiber Ports,Data transmission:depends on the optical module
 PoE Standard:  IEEE 802.3af, IEEE 802.3at
 PoE Pin: 1/2+,3/6-
Total Power:52V15A 800W
Description of this High Power 800W Gigabit 24 Ports PoE Ethernet Switch
> 24x 10/100/1000Mbps downlink PoE Ethernet Ports,2x 10/100/1000Mbps uplink Ethernet Ports and 2x 1000Mbps uplink SFP Ports;
> Supports port auto-flip (Auto MDI/ MDIX);
> 24 Ports Ethernet Switch Design:Each of 24 ports all support IEEE802.3af/at;
> Maximum power per port: 15.4W / 30W;
> Maximum PoE power: 800W;
> New High Power Ethernet Switch :Adopts store-and-forward architecture;
> Gigabit 24 Ports Poe Ethernet Switch:Built-in 1U rack power supply series, easy installation.
We are a professional ethernet switch design manufacturer in China.To be productive, we maintain an attitude of excellence.

Specification of this High Power 800W Gigabit 24 Ports PoE Ethernet Switch

Item

Description

Power

Power Adapter Voltage

110-240V AC

Consumption

800W

Network

Connector

Network

Port

POE Ethernet Port

1~24 Port : 10/100/1000Mbps

Ethernet port

Uplink Port : 10/100/1000Mbps

SFP Port

SFP Port : 1000Mbps

Transmission DistanceAA

1~24 Port : 0 ~ 100m;

Uplink Port : 100m

SFP: depends on the optical module(Combo)

Transmission Medium

Cat5/5e/6 standard network cable

Network

Switch

Network Standard

IEEE802.3/802.3u,IEEE802.3x,IEEE802.1D

Switching Capacity

22Gbps

Packet Forwarding Rate

14Mpps

MAC Table

4K

Power Over

Ethernet

POE Standard

IEEE 802.3af/at

POE Power Supply Type

End-Span(1/2+;3/6-)

PoE Power Consumption

af≤15.4Wl;at≤30W(every port)

LED Status

Indicator

VLAN/Extend

POE Ethernet LED

 Indicator

Power: 1 red light indicates that the power normal work

POE:24 yellow lights indicate that the POE is power on

Ethernet:28 green lights indicate that the Ethernet link and act;

Environmental

Working temperature

0℃~55℃

Relative Humidity

20~95%

Storage temperature

-20℃~70℃

Mechanical

Dimension (L×W×H)

440 mm *290 mm *45mm

Color

Black

Weight

3957g

Stability

MTBF

>30000h


Application of this High Power 450W 800W Gigabit 24 Ports PoE Ethernet Switch




Related Products

2 Uplink 120W 4 ports POE switch Gigabit

2 Uplink 120W 4 ports POE switch Gigabit

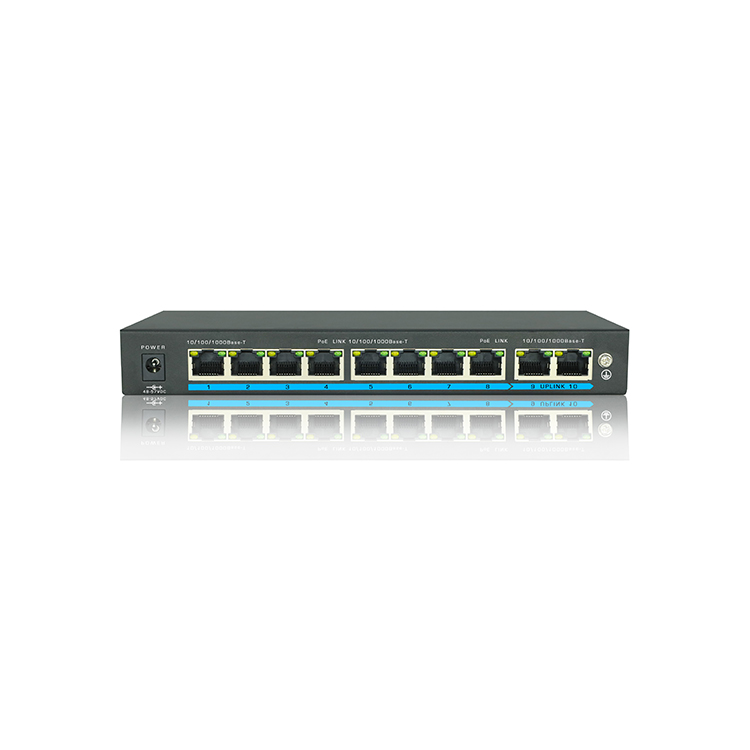

2 Uplink 120W 8 ports POE Ethernet switch

2 Uplink 120W 8 ports POE Ethernet switch

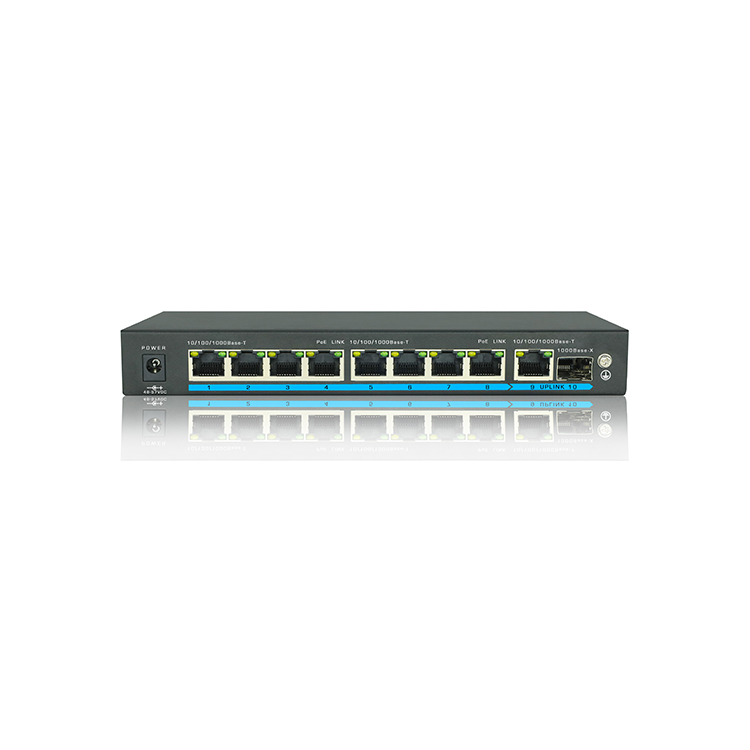

1 Uplink 1 SFP 120W 8 ports POE switch

1 Uplink 1 SFP 120W 8 ports POE switch

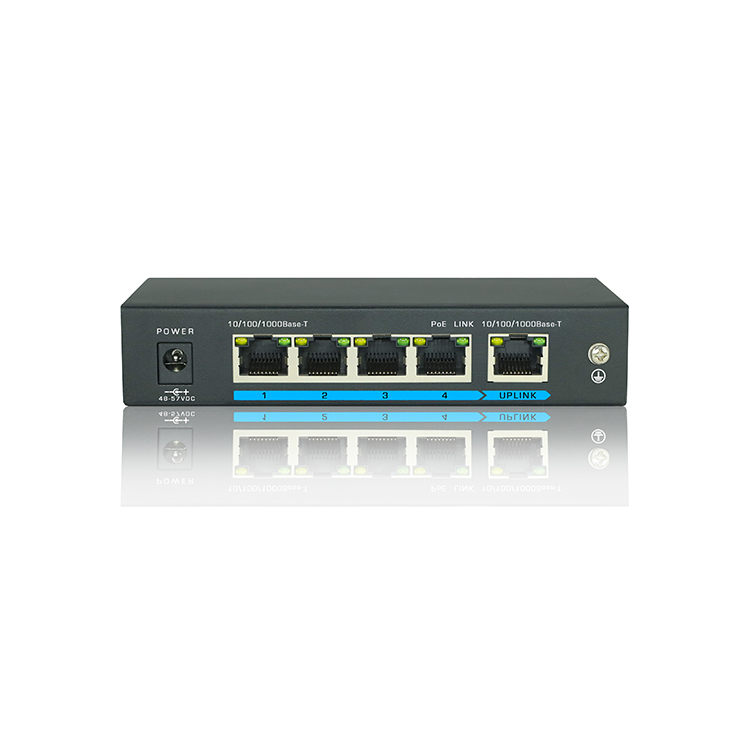

Desktop 65W 4 ports POE switch Gigabit

Desktop 65W 4 ports POE switch Gigabit

Desktop 120W 4 ports POE switch Gigabit

Desktop 120W 4 ports POE switch Gigabit

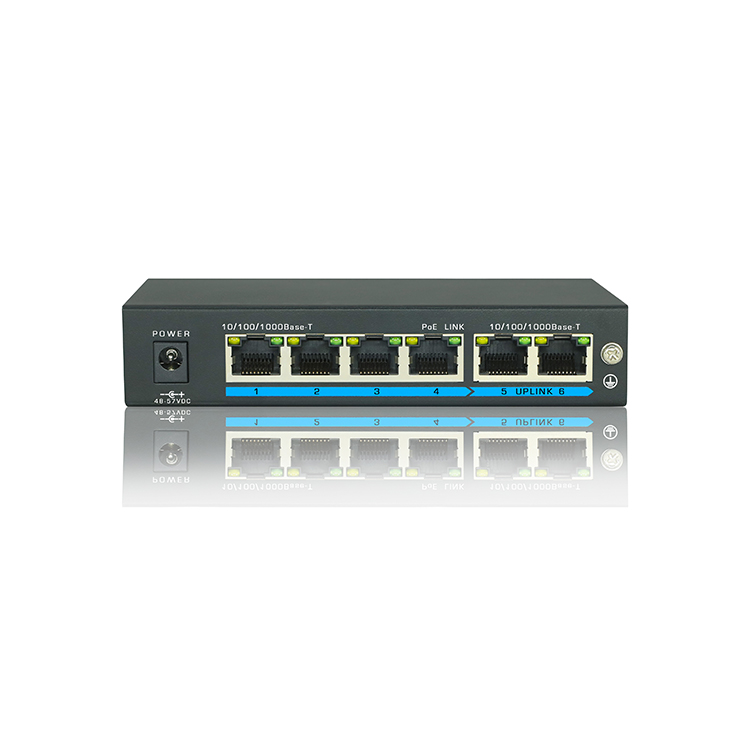

2 Uplink 65W 4 ports POE switch Gigabit
