2 Uplink 120W 4 ports POE switch Gigabit

● 6 ports switch with 4 port PoE,1000Mbit each port ,2 Uplink

● PoE data & power transmission distance 100meters

● Maximum 30 watts power for each PoE port

● PoE Standard: IEEE 802.3at

● PoE Pin: 1/2+,3/6-

●Total Power:52V2.3A 120W

Description of this Gigabit Ethernet 4+2 Ports PoE Switch IP Transmission

G10402POE-AT is a Full Gigabit Unmanaged Commercial PoE Switch and also a PSE device independently developed by PEOVG. It designed for video surveillance and network project system,ect.

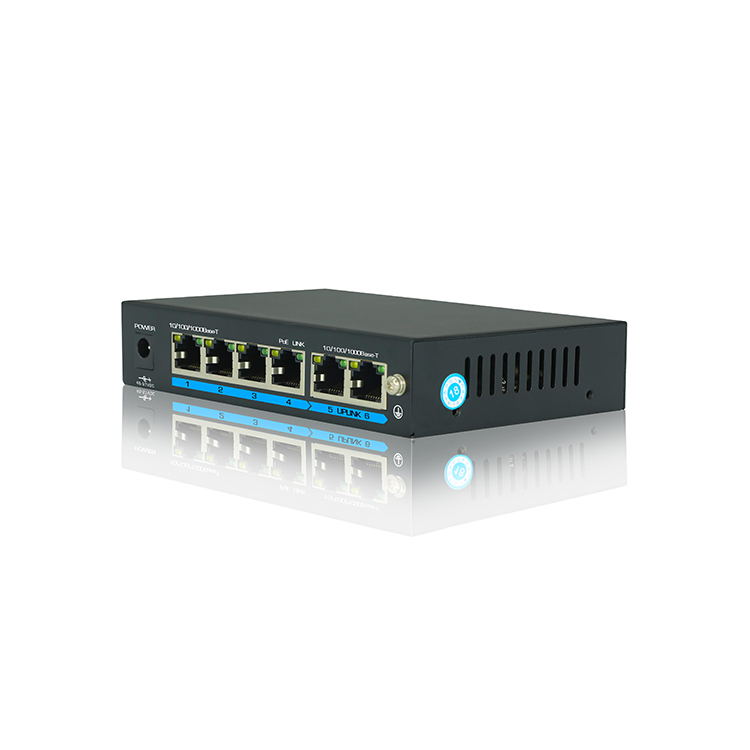

It has 4*10/100/1000Mbps POE Ports and 2*10/100/1000Mbit uplink RJ45 Port. 1-4 ports support IEEE802.3af/at standard POE power supply, total power up to 120W, each port poe power reaches to 30W.

Power supply via Ethernet cable, Data+Power; PoE capable devices need no power cable, no extra power outlet; Rapid implementation, no annoying cables.

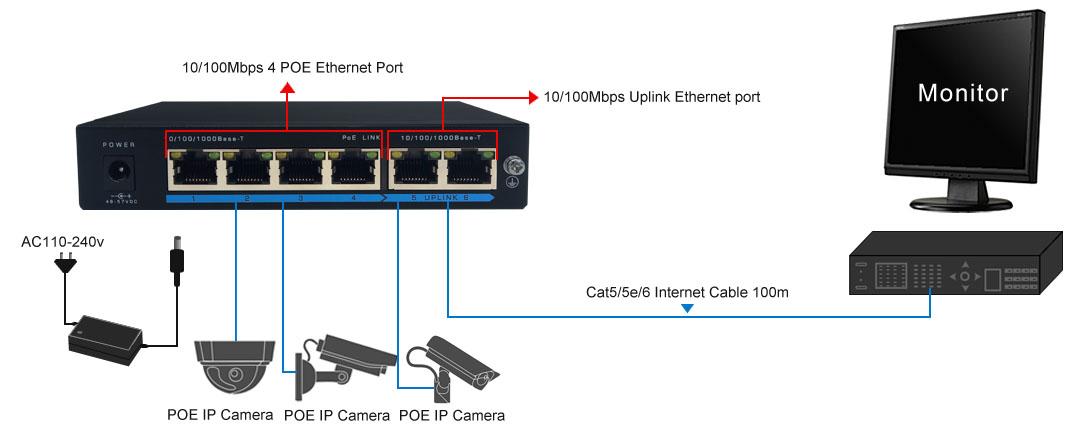

It can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to PoE terminal equipment such as wireless AP, webcam, VoIP, Visual intelligent building intercom through network cable, and meet the network environment that needs high-density poe power supply. It is suitable for hotel, campus, factory dormitory and small or medium-sized enterprises.

Specification of this Gigabit Ethernet 4+2 Ports PoE Switch IP Transmission

Item:G10402POE-AT			Description
Power	Power Adapter Voltage		48-57V DC
	Consumption		120W
Network Connector	Network Port	POE Ethernet Port	1～4 Port : 10/100/1000Mbps
		Ethernet port	Uplink Port : 10/100/1000Mbps
	Transmission Distance		1～4 Port : 10/100/1000Mbps:0 ~ 100m;
			Uplink port:0~100m
	Transmission Medium		Cat5/5e/6 standard network cable
Network Switch	Network Standard		IEEE 802.3, IEEE 802.3u,IEEE 802.1ab, IEEE 802.3x
	Switching Capacity		12Gbps
	Packet Forwarding Rate		8.93Mpps
	MAC Table		2K
Power Over Ethernet	POE Standard		IEEE 802.3at(PSE/PD)
	POE Power Supply Type		End-Span(1/2+;3/6-)
	PoE Power Consumption		at=30w(every port)
LED Status Indicator VLAN/Extend	POE Ethernet LED Indicator		Power: 1 red light indicates that the power normal work
			POE: 4 yellow lights indicate that the POE is power on
			Ethernet: 6 green lights indicate that the Ethernet link and act;
Environmental	Working temperature		0℃~55℃
	Relative Humidity		20~95%
	Storage temperature		-20℃~70℃
Mechanical	Dimension (L×W×H)		135 mm 89 mm 27mm
	Color		Black
	Weight		282g
Stability	MTBF		>30000h
