1 Uplink 1 SFP 120W 8 ports POE switch

Home / Products / IP Transmission / 1000Mbps POE Ethernet Switch / Detail

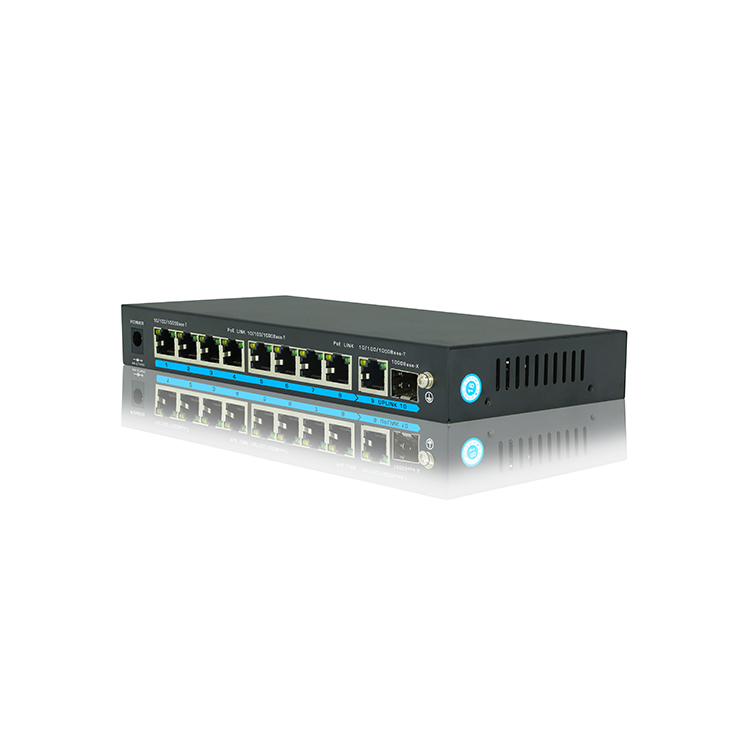

1 Uplink 1 SFP 120W 8 ports POE switch

● 10 ports switch with 8 port PoE,1000Mbit each port ,1 UPlink,1 SFP Port

● PoE data & power transmission distance 100meters

● Maximum 15.4 watts power for each PoE port

● PoE Standard: IEEE 802.3af

● PoE Pin: 1/2+,3/6-

●Total Power:52V2.3A 120W

Description of this 1000Mbps Unmanaged 120W Power over Ethernet POE Switch

As usual network/IP cameras are not only request to transmit data signal through network cable,but need the whole day's power supplying.But in the real construction,it has to change the installation place of the cameras because of unable to supply a stable power.Thus,to reset the installation place may cause the monitoring blind Angle,it makes the monitoring lose its significance. But when POE Switch appeared,it brings us new hopes.

The Advantages of POE Switch:

1.Flexibility: POE Switch only need to install one cable,it is simple and can save space. The device can be moved freely.

2.Save cost: As we all know,Video Surveillance cameras need to be installed in a place where can hardly deploy a AC Power supply. Using POE Switch can help you to lower the expensive power boxes' cost and installation time.

3.Intelligent power supplying and to eliminate the hidden danger of power supplying: POE Switch will only supply power for the devices which need power. Only when it connected with the devices which need power,there will be voltage in Ethernet cable, thus eliminated the risk of electric leakage on lines.

4.Centralized power supply advantage: A signal UPS can supply power to all related devices when they are outage.

5.Compatibility of POE Device: Users can automatically and safely use original equipment and POE Equipment together on network. Those equipment can exist with the existing Ethernet cable. It can also be used for many devices such as: IP camera,VoIP,wireless AP,IP Telephone...

Specification of this 1000Mbps Unmanaged 120W Power over Ethernet POE Switch

Item:G10802EXPOE		Description
Power	Power Adapter	48-57V DC
Power	Consumption	120W
Network Connector	Network Port	1～8 Port : 10/100/1000Mbps 1～8:POE Ethernet port
	Network Port	Uplink Port : one Ethernet 1000Mbps one SFP 1000Mbps
	Transmission DistanceAA	1～8 Port : 0 ~ 100m;
	Transmission DistanceAA	SFP: depends on the optical module
	Transmission Medium	Cat5/5e/6 standard network cable
Network Switch	Network Standard	IEEE 802.3q, IEEE 802.3u,IEEE 802.1ab, IEEE 802.3x
	Switching Capacity	20Gbps
	Packet Forwarding	14Mpps
	MAC Table	4K
Power Over Ethernet	POE Standard	IEEE 802.3af
	POE Power Supply	End-Span(1/2+;3/6-)
	PoE Power	af=15.4W(every port)
LED Status Indicator VLAN/Extend	POE Ethernet LED Indicator	Power: 1 red light indicates that the power normal work
		POE: 8 yellow lights indicate that the POE is power on
		Ethernet: 10 green lights indicate that the Ethernet link and act;
Environmental	Working temperature	0℃~55℃
	Relative Humidity	20~95%
	Storage temperature	-20℃~70℃
Mechanical	Dimension (L×W×H)	208 mm 96 mm 27mm
	Color	Black
	Weight	420g
Stability	MTBF	>30000h
