75W 4 ports POE switch 1G 1 Uplink 1 SFP


● 6 ports switch with 4 ports 1000Mbit PoE, 1 Gigabit Uplink Port,1 SFP Port
● PoE data & power transmission distance 100meters
● Uplink port:1 Gigabit Ethernet port,Transmission Distance up to 100m ,1 Gigabit Fiber Ports,Data transmission:depends on the optical module
● Maximum 15.4 watts power for each PoE port
● PoE Standard: IEEE 802.3af
● PoE Pin: 1/2+,3/6-
●Total Power:52V1.45A 75W
Description of this 15.4W 4 PoE Port 1 Gigabit Uplink Port 1 SFP Port Switch

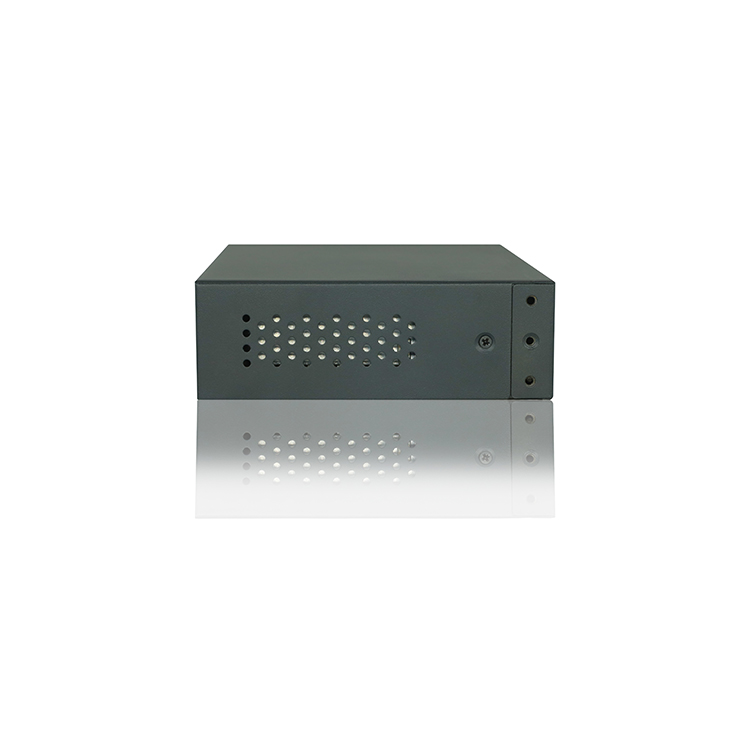

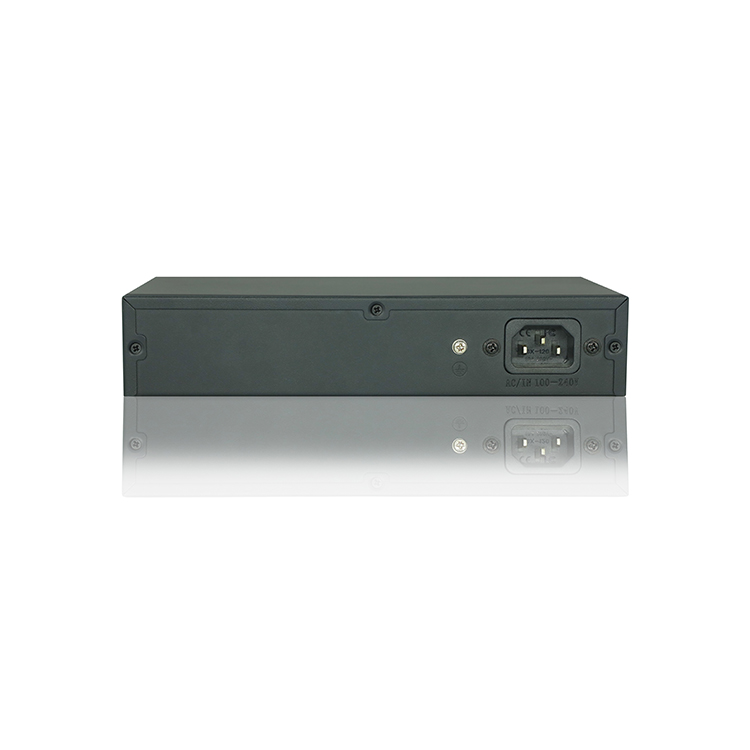

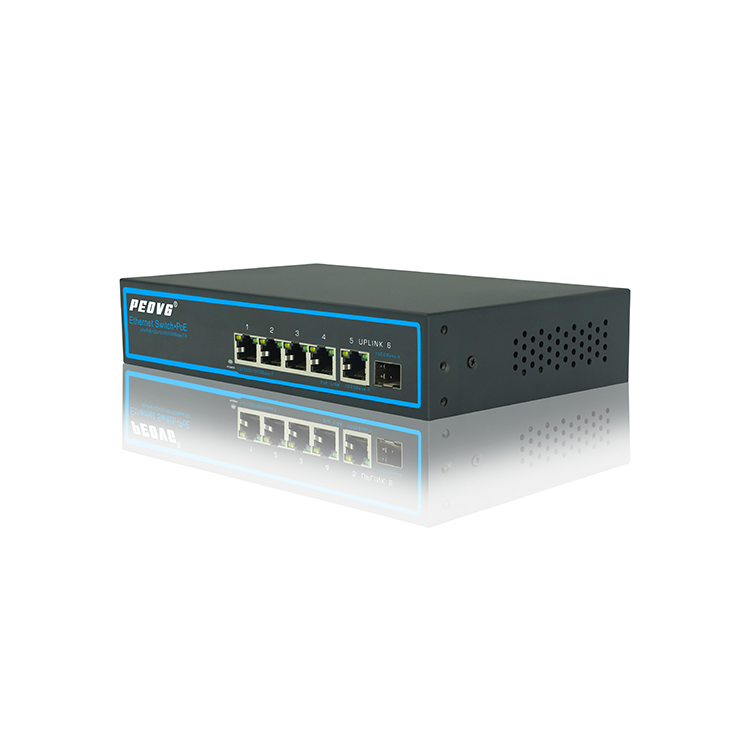

G10402EXPOE-BP75 is a compact 6 Ports Full Gigabit PoE Switch, it is specially designed for the application of high definition network security surveillance system.

The PoE switch provides 4 Gigabit downlink PoE ports support 802.3af/at and 1 Gigabit uplink port, and 1 SPF Port.The total PoE power output is up to 75 watts. It’s widely used in surveillance monitor and Ethernet network solution.

Specification of this 15.4W 4 PoE Port 1 Gigabit Uplink Port 1 SFP Port Switch

Item

Description

Power

Power Adapter

110-240V AC

Consumption

75W

Network

Connector

Network Port

1~4 Port : 10/100/1000Mbps  1~4:POE Ethernet port

Uplink Port : one Ethernet 1000Mbps   one SFP 1000Mbps

Transmission DistanceAA

1~4 Port : 0 ~ 100m;

SFP: depends on the optical module

Transmission Medium

Cat5/5e/6 standard network cable

Network

Switch

Network Standard

IEEE 802.1Q, IEEE 802.1u,IEEE 802.1x, IEEE 802.3ab

Switching Capacity

12Gbps

Packet Forwarding

8.93Mpps

MAC Table

2K

Power Over

Ethernet

POE Standard

IEEE 802.3af/at(PSE/PD)

POE Power Supply

End-Span(1/2+;3/6-)

PoE Power

af≤15.4w; at≤30w(every port)

LED Status

Indicator

VLAN/Extend

POE Ethernet LED

 Indicator

Power: 1 red light indicates that the power normal work

POE: 4 yellow lights indicate that the POE is power on

Ethernet: 6 green lights indicate that the Ethernet link and act;

Environmental

Working temperature

0℃~55℃

Relative Humidity

20~95%

Storage temperature

-20℃~70℃

Mechanical

Dimension (L×W×H)

201 mm *120 mm *41mm

Color

Black

Weight

609.2g

Stability

MTBF

>30000h


Application of this 15.4W 4 PoE Port 1 Gigabit Uplink Port 1 SFP Port Switch
