250W 24 ports POE switch 1G 2 Uplink 2 SFP

Home / Products / IP Transmission / 1000Mbps POE Ethernet Switch / Detail

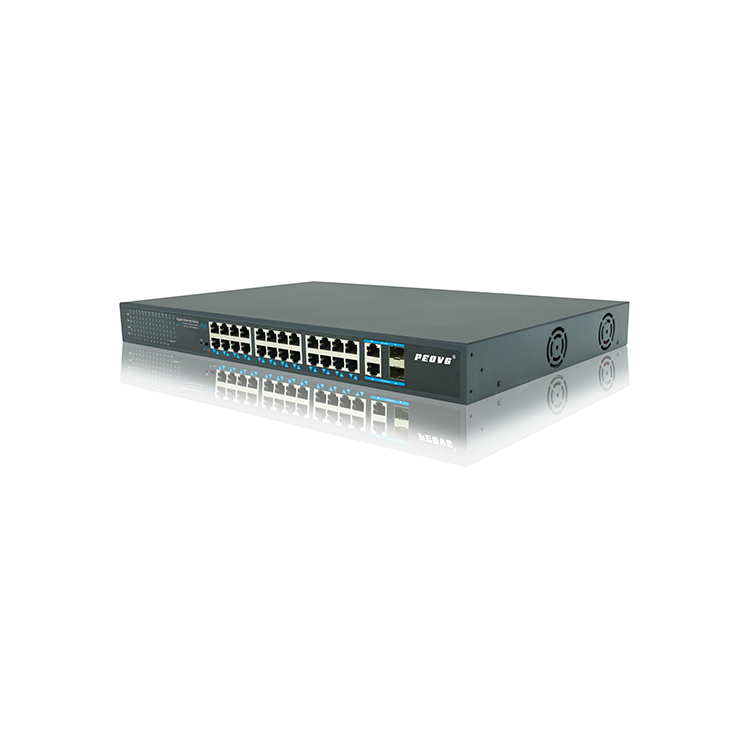

250W 24 ports POE switch 1G 2 Uplink 2 SFP

● 28 ports switch with 24 ports 1000Mbit PoE, 2 Gigabit Uplink Ports,2 Gigabit SFP Ports

● PoE data & power transmission distance 100meters

● Uplink port:2 Gigabit Ethernet port,Transmission Distance up to 100m,2 Gigabit Fiber Ports,Data transmission:depends on the optical module

● PoE Standard: IEEE 802.3af

● PoE Pin: 1/2+,3/6-

●Total Power:52V4.8A 250W

Description of this 28 Ports Gigabit Switch with 24 PoE Port 2 SFP Port 2 Uplink

* 28 Ports Ethernet Switch With 24 Poe Port 1000Mbit, 2 Gigabit Uplink Ports,2 Gigabit SFP Ports
* PoE data & power transmission distance 100meters
* Uplink port:2 Gigabit Ethernet port,Transmission Distance up to 100m, 2 Gigabit Fiber Ports,Data transmission:depends on the optical module
* PoE Standard: IEEE 802.3af
* PoE Pin: 1/2+,3/6-
* Total Power:52V 4.8A 250W

Our ethernet switch design products is sold to all continents and dozens of countries around the world.We provide our customers with one-stop services including design, manufacturing and transportation.Write an email to us and ask about 28 Ports Gigabit Ethernet Switch Design With 24 Poe Port 2 Sfp Port 2 Uplink. From then on, you will have one more excellent partner.

Specification of this High Power 250W 450W 800W Gigabit 24 Ports PoE Ethernet Switch

Item			Description
Power	Power Adapter Voltage		110-240V AC
	Consumption2		250W
Network Connector	Network Port	POE Ethernet Port	1～24 Port : 10/100/1000Mbps
		Ethernet port	Uplink Port : 10/100/1000Mbps
		SFP Port	SFP Port : 1000Mbps
	Transmission DistanceAA		1～24 Port : 0 ~ 100m;
			Uplink Port : 100m
			SFP: depends on the optical module（Combo）
	Transmission Medium		Cat5/5e/6 standard network cable
Network Switch	Network Standard		IEEE802.3/802.3u,IEEE802.3x,IEEE802.1D
	Switching Capacity		22Gbps
	Packet Forwarding Rate		14Mpps
	MAC Table		4K
Power Over Ethernet	POE Standard		IEEE 802.3af/at
	POE Power Supply Type		End-Span(1/2+;3/6-)
	PoE Power Consumption		af≤15.4Wl;at≤30W(every port)
LED Status Indicator VLAN/Extend	POE Ethernet LED Indicator		Power: 1 red light indicates that the power normal work
			POE:24 yellow lights indicate that the POE is power on
			Ethernet:28 green lights indicate that the Ethernet link and act;
Environmental	Working temperature		0℃~55℃
	Relative Humidity		20~95%
	Storage temperature		-20℃~70℃
Mechanical	Dimension (L×W×H)		440 mm 290 mm 45mm
	Color		Black
	Weight		3957g
Stability	MTBF		>30000h
