250W 8 ports POE switch 1G 2 Uplink

● 10 ports switch with 8 ports PoE,1000Mbit each port ,2 Uplink

● PoE data & power transmission distance 100meters

● Maximum 30 watts power for each PoE port

● PoE Standard: IEEE 802.3at

● PoE Pin: 1/2+,3/6-

●Total Power:52V 4.8A 250W

Description of this IEEE802.3af at Standard 8 Gigabit PoE Ports 2 Uplink Switch

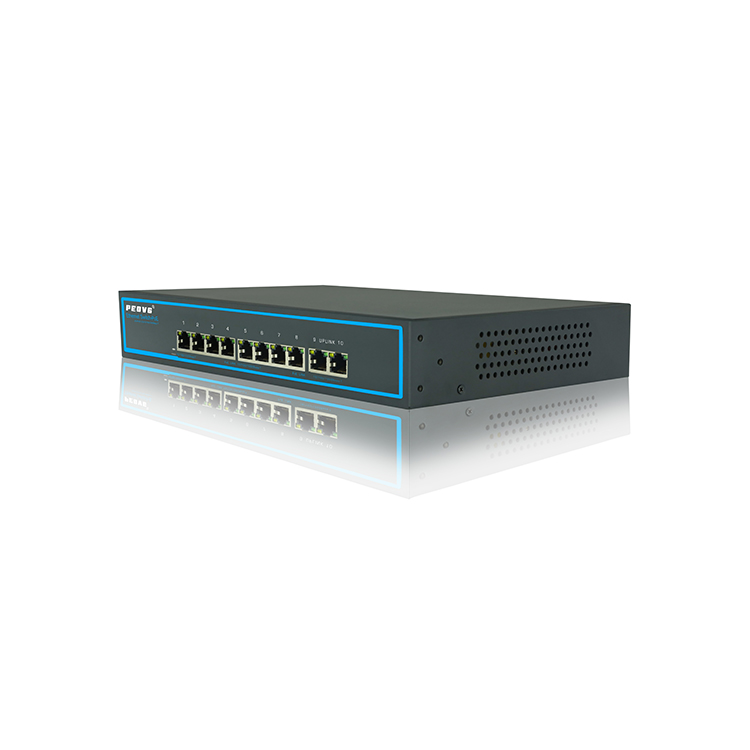

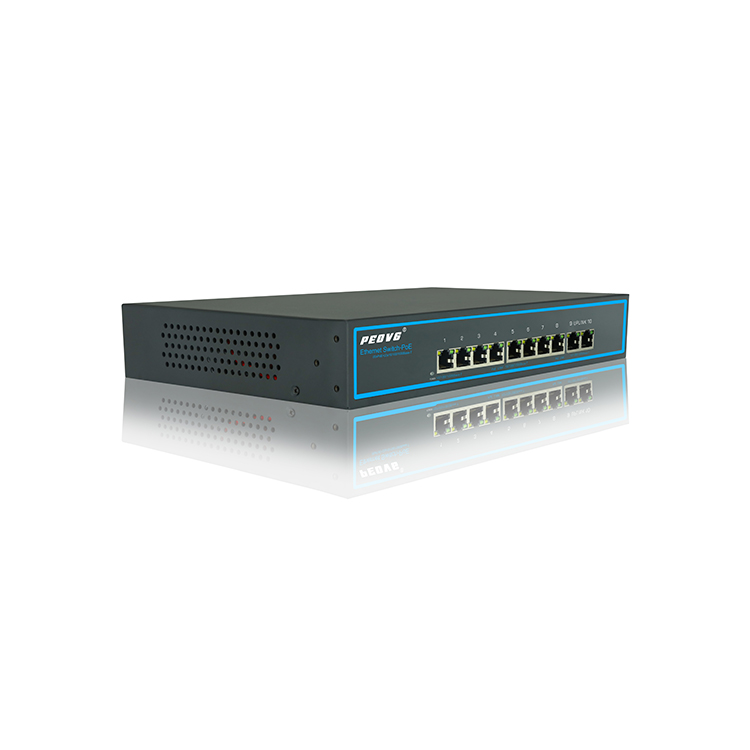

G10802POE-BP250 is a compact The 8 Ports Gigabit PoE Ethernet Switch is an unmanaged Ethernet switch designed for Gigabit Ethernet access and PoE applications. It provides 8 Gigabit downlink ports, and two Gigabit uplink Ethernet port.

The 8 downlink ports support 802.3af/at standard and feature Max 15.4/30W PoE power output of single port,Max 150/250W of whole machine. It can be widely used in security surveillance, hotels, schools, engineering and other occasions.

Specification of this IEEE802.3af at Standard 8 Gigabit PoE Ports 2 Uplink Switch

Item			Description
Power	Power Adapter Voltage		110-240V AC
	Consumption		250W
Network Connector	Network Port	POE Ethernet Port	1～8 Port : 10/100/1000Mbps
		Ethernet port	Uplink Port : 10/100/1000Mbps
	Transmission Distance		1～8 Port :100Mbps:0 ~ 100m;
			Uplink port:0~100m
	Transmission Medium		Cat5/5e/6 standard network cable
Network Switch	Network Standard		IEEE 802.3, IEEE 802.3u,IEEE 802.1ab, IEEE 802.3x
	Switching Capacity		20Gbps
	Packet Forwarding Rate		14Mpps
	MAC Table		4K
Power Over Ethernet	POE Standard		IEEE 802.3af/at
	POE Power Supply Type		End-Span(1/2+;3/6-)
	PoE Power Consumption		af≤15.4W/at≤30W (every port)
LED Status Indicator VLAN/Extend	POE Ethernet LED Indicator		Power: 1 red light indicates that the power normal work
			POE: 8 yellow lights indicate that the POE is power on
			Ethernet: 10 green lights indicate that the Ethernet link and act;
Environmental	Working temperature		0℃~55℃
	Relative Humidity		20~95%
	Storage temperature		-20℃~70℃
Mechanical	Dimension (L×W×H)		284mm180mm44mm
	Color		Black
	Weight		750g
Stability	MTBF		>30000h
