250W 8 ports POE switch 1G 1 Uplink 1SFP

Home / Products / IP Transmission / 1000Mbps POE Ethernet Switch / Detail

..
..
  • ..
  • ..
  • ..
  • ..

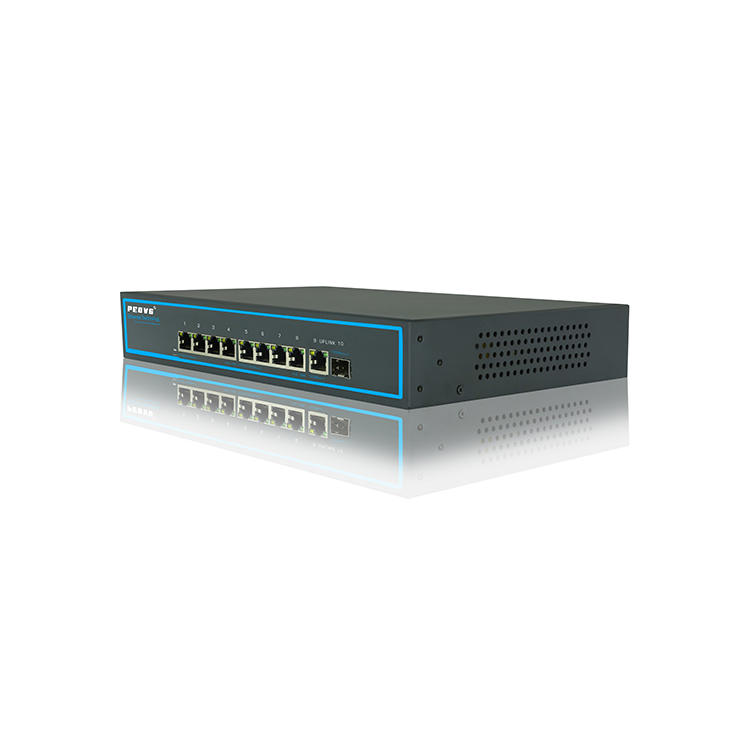

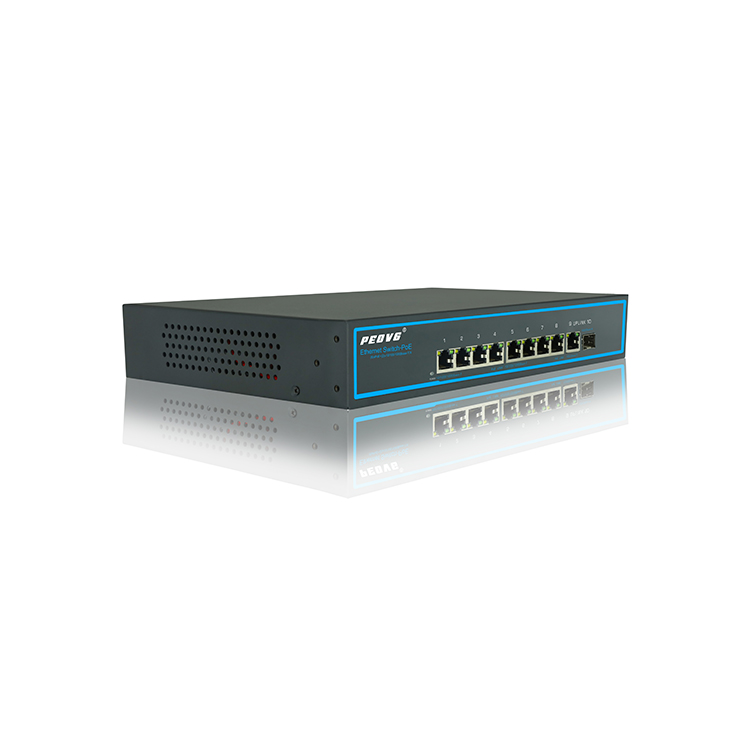

250W 8 ports POE switch 1G 1 Uplink 1SFP


● 10 ports switch with 8 ports 1000Mbit PoE, 1 Gigabit Uplink Port,1 SFP Port
● PoE data & power transmission distance 100meters
● Uplink port:1 Gigabit Ethernet port,Transmission Distance up to 100m                                                                                                                             1 Gigabit Fiber Ports,Data transmission:depends on the optical module
● Maximum 30 watts power for each PoE port
 PoE Standard: IEEE 802.3af;IEEE 802.3at
 PoE Pin: 1/2+,3/6-
Total Power:52V  4.8A 250W
Description of this 8 Ports 1000Mbit PoE 1 Gigabit Uplink 1 SPF 10 Ports Switch
10x 10/100/1000Mbps auto-sensing RJ45 ports,8x10/100/1000Mbps PoE ports, 1 x uplink port, 1 x SFP Port;
Supports port auto-flip (Auto MDI/ MDIX);
Maximum power of single PoE port: 15.4W/30W;
Adopts store-and-forward architecture;
IEEE 802.3af/at power on up to 8 ports;
With anti-theft lock;
protection : Excellent anti-thunder , anti static and External power supply, fanless, natural colins;
small, compact and quiet design, suitable for desktop or wall;

Specification of this 8 Ports 1000Mbit PoE 1 Gigabit Uplink 1 SPF 10 Ports Switch

Item

Description

Power

Power Adapter

110-240V AC

Consumption

250W

Network

Connector

Network Port

1~8 Port : 10/100/1000Mbps  1~8:POE Ethernet port

Uplink Port : one Ethernet 1000Mbps   one SFP 1000Mbps

Transmission DistanceAA

1~8 Port : 0 ~ 100m;

SFP: depends on the optical module

Transmission Medium

Cat5/5e/6 standard network cable

Network

Switch

Network Standard

IEEE 802.3, IEEE 802.3u,IEEE 802.1ab, IEEE 802.3x

Switching Capacity

20Gbps

Packet Forwarding

14Mpps

MAC Table

4K

Power Over

Ethernet

POE Standard

IEEE 802.3af/at

POE Power Supply

End-Span(1/2+;3/6-)

PoE Power

af≤15.4W/at≤30W(every port)

LED Status

Indicator

VLAN/Extend

POE Ethernet LED

 Indicator

Power: 1 red light indicates that the power normal work

POE: 8 yellow lights indicate that the POE is power on

Ethernet: 10 green lights indicate that the Ethernet link and act;

Environmental

Working temperature

0℃~55℃

Relative Humidity

20~95%

Storage temperature

-20℃~70℃

Mechanical

Dimension (L×W×H)

284 mm *180 mm *44mm

Color

Black

Weight

750g

Stability

MTBF

>30000h



Application of this 8 Ports 1000Mbit PoE 1 Gigabit Uplink 1 SPF 10 Ports Switch
