2 SFP 120W 8 ports POE switch 1G

Home / Products / IP Transmission / 1000Mbps POE Ethernet Switch / Detail

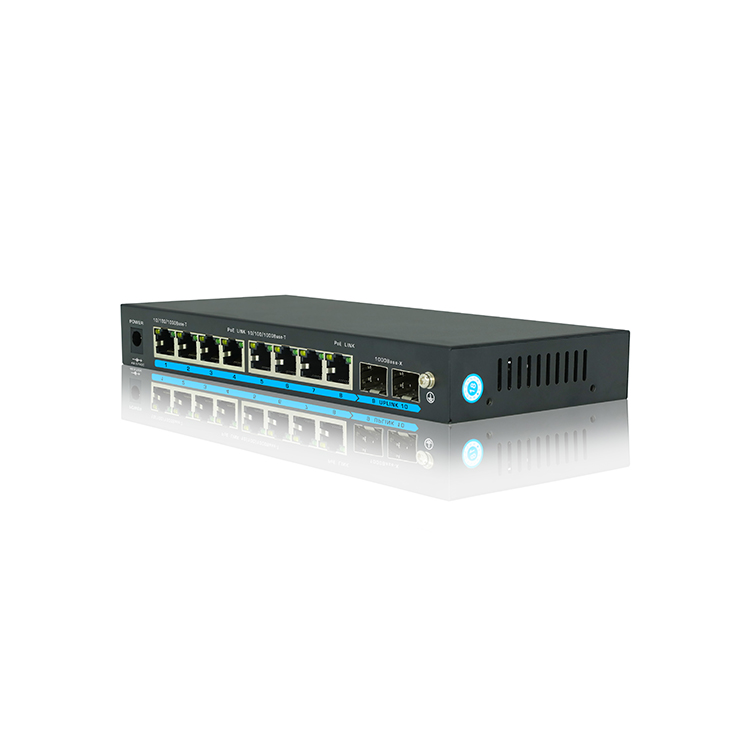

2 SFP 120W 8 ports POE switch 1G

● 10 ports switch with 8 port PoE,1000Mbit each port ,2 SFP Port

● PoE data & power transmission distance 100meters

● Maximum 15.4 watts power for each PoE port

● PoE Standard: IEEE 802.3af

● PoE Pin: 1/2+,3/6-

●Total Power:52V2.3A 120W

Description of this 8 PoE Port with 2 SFP Port Gigabit Unmanaged PoE Switch 120W

G10802XXPOE is 8 Ports Gigabit PoE Ethernet Switch which is an unmanaged Ethernet switch designed for Gigabit Ethernet access and PoE applications. It provides 8 Gigabit downlink ports, 2 SFP Port.

The 8 downlink ports support 802.3at standard and feature Max 30W PoE power output of single port, Max 120W of whole machine. It can be widely used in security surveillance, hotels, schools, engineering and other occasions.

How to Choose POE Switch?
1. Power consumption of IP camera: PoE network switch adopts different standards, the output power is also different. For example, IEEE802.3af can support powered devices that don't exceed 15.4W. As cable transmission will consume power, IEEE802.3af can provide power supply to powered devices that don't exceed 12.95W. According to IEEE802.3at standard, IEEE802.3at PoE switch can work with powered devices that don't exceed 25W.

2. Max support powered devices: PoE switch has an important parameter - total power. Under IEEE802.3af standard, If 24CH PoE switch's total power reaches 370W, then each ports can get sufficient power (370/15.4=24), but if based on IEE802.3at standard, each port supports 30W, the PoE switch only can provide power supply to 12 ports (370/30=12).

3. Required quantity of ports, whether having Optical Fiber port, or network management, bandwidth (10/100/1000M)

Specification of this 8 PoE Port with 2 SFP Port Gigabit Unmanaged PoE Switch 120W

Item		Description
Power	Power Adapter	48-57V DC
Power	Consumption	120W
Network Connector	Network Port	1～8 Port : 10/100/1000Mbps 1～8:POE Ethernet port
	Network Port	Two SFP 1000Mbps
	Transmission DistanceAA	1～8 Port : 0 ~ 100m;
	Transmission DistanceAA	SFP: depends on the optical module
	Transmission Medium	Cat5/5e/6 standard network cable
Network Switch	Network Standard	IEEE 802.3q, IEEE 802.3u,IEEE 802.1ab, IEEE 802.3x
	Switching Capacity	20Gbps
	Packet Forwarding	14Mpps
	MAC Table	4K
Power Over Ethernet	POE Standard	IEEE 802.3af
	POE Power Supply	End-Span(1/2+;3/6-)
	PoE Power	af=15.4W(every port)
LED Status Indicator VLAN/Extend	POE Ethernet LED Indicator	Power: 1 red light indicates that the power normal work
		POE: 8 yellow lights indicate that the POE is power on
		Ethernet: 8 green lights indicate that the Ethernet link and act;
Environmental	Working temperature	0℃~55℃
	Relative Humidity	20~95%
	Storage temperature	-20℃~70℃
Mechanical	Dimension (L×W×H)	208 mm 96 mm 27mm
	Color	Black
	Weight	420g
Stability	MTBF	>30000h
