120W 8 ports POE switch 1G 2 Uplink 1SFP

Home / Products / IP Transmission / 1000Mbps POE Ethernet Switch / Detail

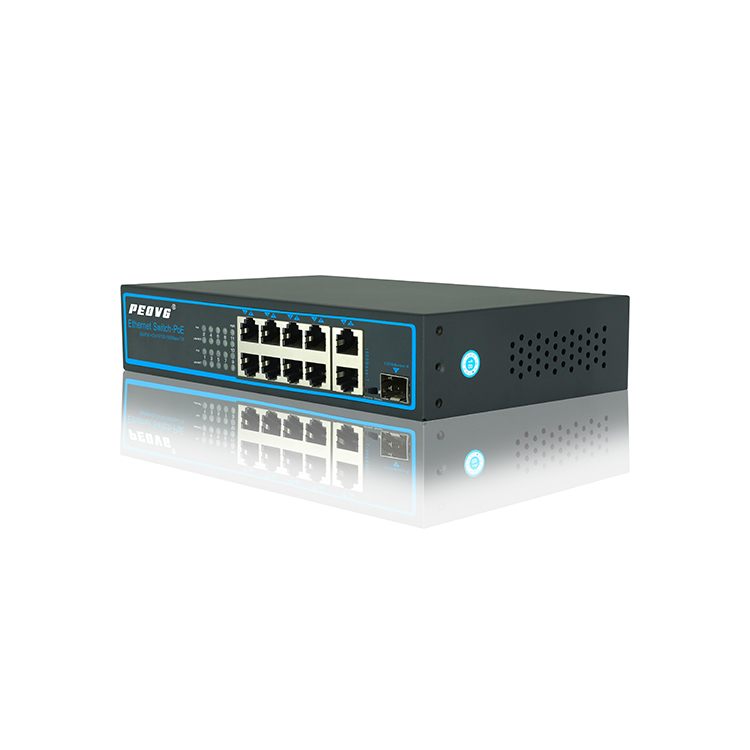

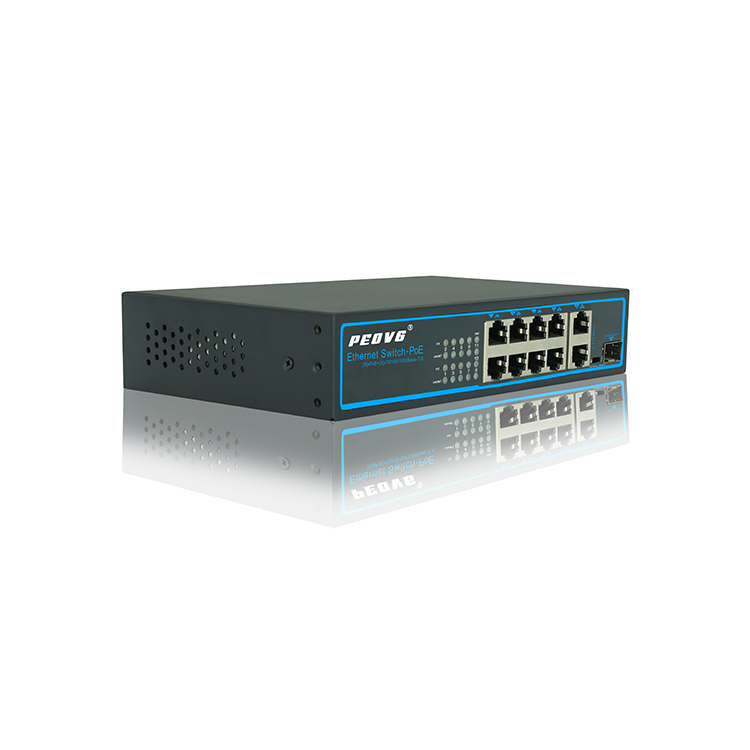

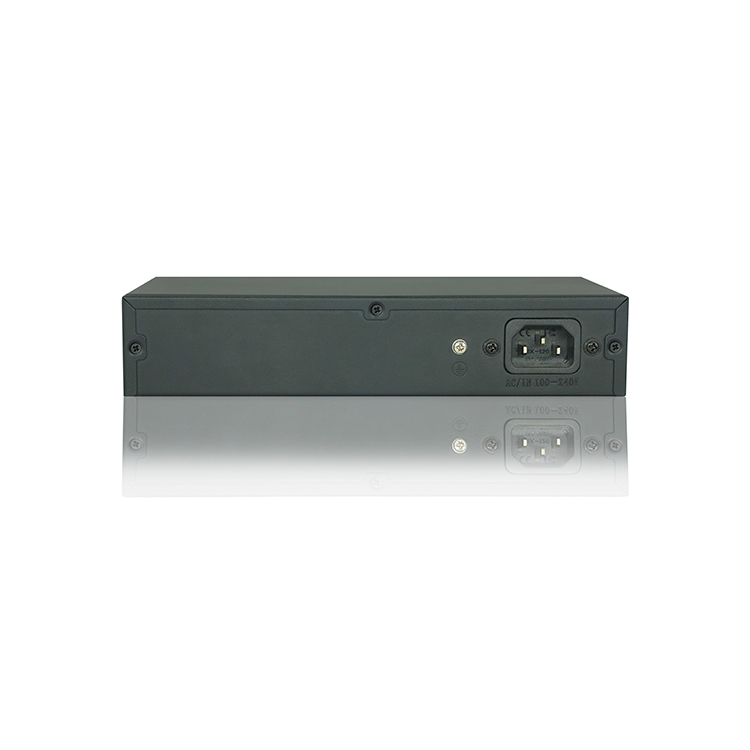

120W 8 ports POE switch 1G 2 Uplink 1SFP

● 11 ports switch with 8 ports 1000Mbit PoE, 2 Gigabit Uplink Ports,1 SFP Port

● PoE data & power transmission distance 100meters

● Maximum 15.4 watts power for each PoE port

● Uplink port:2 Gigabit Ethernet port,Transmission Distance up to 100m 1 Gigabit Fiber Ports,Data transmission:depends on the optical module

● PoE Standard: IEEE 802.3af

● PoE Pin: 1/2+,3/6-

●Total Power:52V 2.3A 120W

Description of this 120W Gigabit Unmanaged 11 Ports POE Ethernet Switch 8 POE

> 11x 10/100/1000Mbps auto-sensing RJ45 ports,8x10/100/1000Mbps PoE ports, 2x Ethernet uplink port,1x10/100/1000Mbps SFP uplink port;
> Supports port auto-flip (Auto MDI/ MDIX);
> Maximum power of single PoE port: 15.4W;
> Adopts store-and-forward architecture;
> IEEE 802.3af power on up to 8 ports;
> protection: Excellent anti-thunder, anti static and;
> small, compact and quiet design, suitable for desktop or wall;

Specification of this 120W Gigabit Unmanaged 11 Ports POE Ethernet Switch 8 POE

Item		Description
Power	Power Adapter Voltage	110-240V AC
Power	Consumption	120W
Network Connector	Network Port	1～10 Port : 10/100/1000Mbps 1～8:POE Ethernet port
	Network Port	Uplink Port : two Ethernet 1000Mbps one SFP 1000Mbps
	Transmission DistanceAA	1～10 Port : 0 ~ 100m;
	Transmission DistanceAA	SFP: depends on the optical module
	Transmission Medium	Cat5/5e/6 standard network cable
Network Switch	Network Standard	IEEE 802.1Q, IEEE 802.1u,IEEE 802.1x, IEEE 802.3ab
	Switching Capacity	22Gbps
	Packet Forwarding Rate	16.364Mpps
	MAC Table	4K
Power Over Ethernet	POE Standard	IEEE 802.3af
	POE Power Supply Type	End-Span(1/2+;3/6-)
	PoE Power Consumption	Af≤15.4W(every port)
LED Status Indicator VLAN/Extend	POE Ethernet LED Indicator	Power: 1 red light indicates that the power normal work
		POE:8 yellow lights indicate that the POE is power on
		Ethernet:11 green lights indicate that the Ethernet link and act;
Environmental	Working temperature	0℃~55℃
	Relative Humidity	20~95%
	Storage temperature	-20℃~70℃
Mechanical	Dimension (L×W×H)	201 mm 120 mm 41mm
	Color	Black
	Weight	699g
Stability	MTBF	>30000h
