120W 4 ports POE switch 1G 2 Uplink


 6 ports switch with 4 ports PoE,1000Mbit each port ,2 Uplink
 PoE data & power transmission distance 100meters
 Maximum 30 watts power for each PoE port
 PoE Standard: IEEE 802.3af, IEEE 802.3at
 PoE Pin: 1/2+,3/6-
Total Power:52V2.3A 120W
Description of this 6 Ports Switch With 4 Ports PoE 1000Mbit POE Ethernet Switch

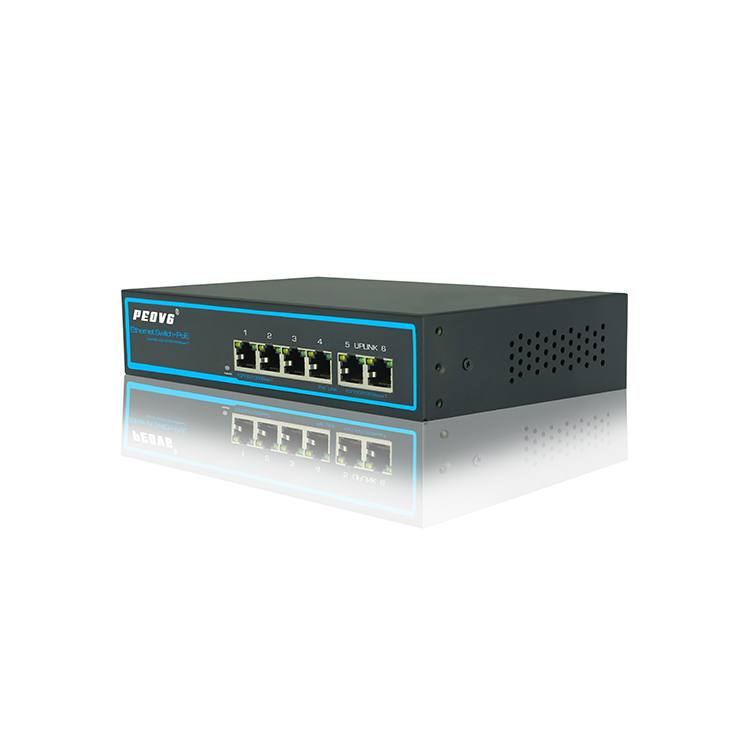

G10402POE-BP120 is a compact 6 Ports Full Gigabit PoE Switch, it is specially designed for the application of high definition network security surveillance system.

The PoE switch provides 4 Gigabit downlink PoE ports support 802.3af/at and 2 Gigabit uplink ports. The total PoE power output is up to 75/120 watts. It’s widely used in surveillance monitor and Ethernet network solution.

Specification of this 6 Ports Switch With 4 Ports PoE 1000Mbit POE Ethernet Switch


Item

Description

Power

Power Adapter Voltage

110-240V AC

Consumption

120W

Network

Connector

Network

Port

POE Ethernet Port

1~4 Port : 10/100/1000Mbps

Ethernet port

Uplink Port : 10/100/1000Mbps

Transmission Distance

1~4 Port : 10/100/1000Mbps:0 ~ 100m;

Uplink port:0~100m

Transmission Medium

Cat5/5e/6 standard network cable

Network

Switch

Network Standard

IEEE 802.3, IEEE 802.3u,IEEE 802.1ab, IEEE 802.3x

Switching Capacity

12Gbps

Packet Forwarding Rate

8.93Mpps

MAC Table

2K

Power Over

Ethernet

POE Standard

IEEE 802.3af/at(PSE/PD)

POE Power Supply Type

End-Span(1/2+;3/6-)

PoE Power Consumption

af≤15.4W; at≤30W(every port)

LED Status

Indicator

VLAN/Extend

POE Ethernet LED

 Indicator

Power: 1 red light indicates that the power normal work

POE: 4 yellow lights indicate that the POE is power on

Ethernet: 6 green lights indicate that the Ethernet link and act;

Environmental

Working temperature

0℃~55℃

Relative Humidity

20~95%

Storage temperature

-20℃~70℃

Mechanical

Dimension (L×W×H)

201 mm *120 mm *41mm

Color

Black

Weight

609.2g

Stability

MTBF

>30000h


Application of this 6 Ports Switch With 4 Ports PoE 1000Mbit POE Ethernet Switch
