120W 4 ports POE switch 1G 1 Uplink

Home / Products / IP Transmission / 1000Mbps POE Ethernet Switch / Detail

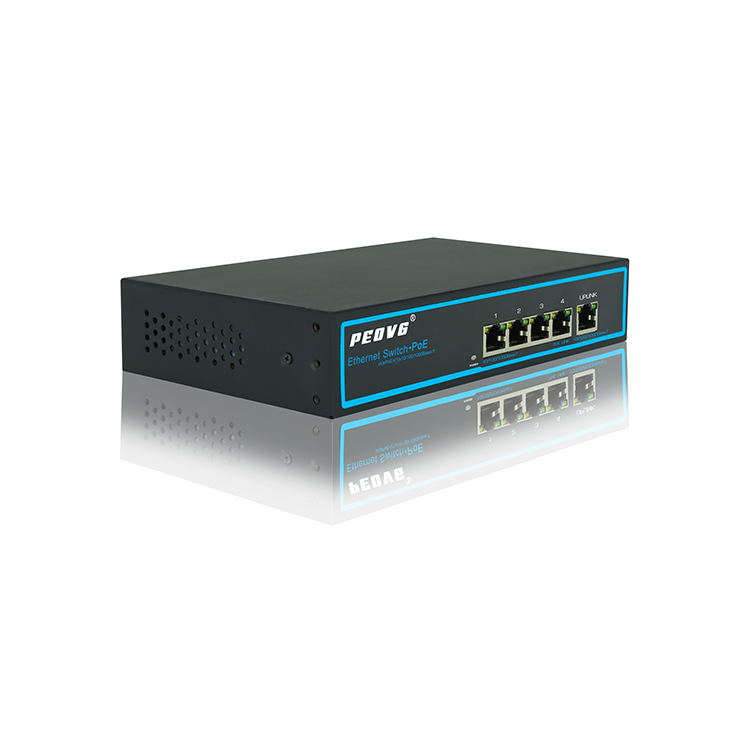

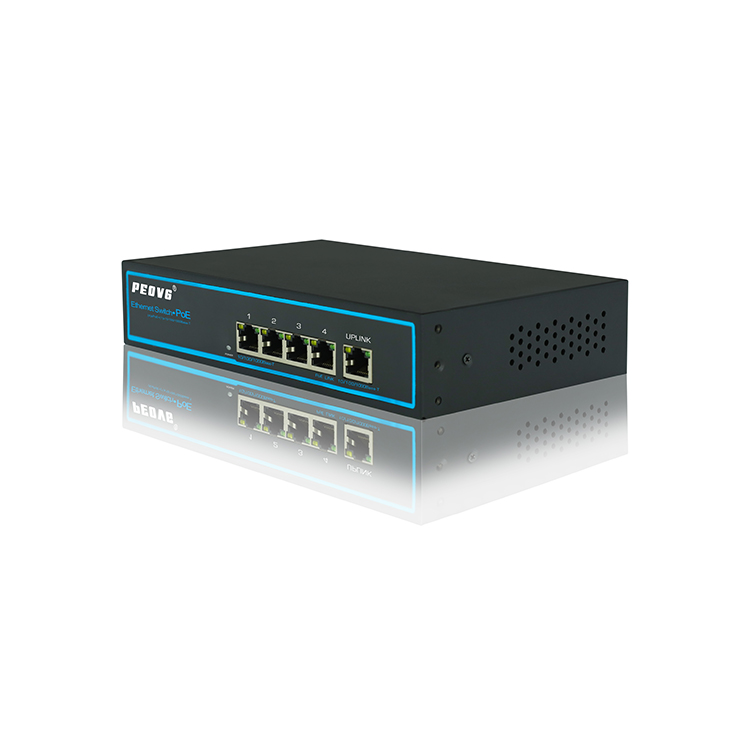

120W 4 ports POE switch 1G 1 Uplink

● 5 ports switch with 4 ports PoE,1000Mbit each port ,1 Uplink

● PoE data & power transmission distance 100meters

● Maximum 30 watts power for each PoE port

● PoE Standard: IEEE 802.3af;IEEE 802.3at

● PoE Pin: 1/2+,3/6-

●Total Power:52V 2.3A 120W

Description of this Built in 120W 1000Mbps POE Power over Ethernet Switch

PEOVG engaged in cctv transmission equipment for more than 12 years, our slogan is PEOVG, simpler than simpler!

G10401POE-BP120 are 4+1 Gigabit Unmanaged PoE Ethernet Switch, which is highly suitable for CCTV IP, Networking, Communication Industries.

Adopting Realtek Chipset, what's more, with full range of technical support from Taiwan Realtek which is available for ODM service.

The power supply of our POE Switch is all Communication Standard. All SMT are from our own production line, which is based on the standard of Huawei, Fiberhome, Raisecom for designing and promoting.

Specification of this Built in 120W 1000Mbps POE Power over Ethernet Switch

Item			Description
Power	Power Adapter Voltage		110-240V AC
	Consumption		120W
Network Connector	Network Port	POE Ethernet Port	1～4 Port : 10/100/1000Mbps
		Ethernet port	Uplink Port : 10/100/1000Mbps
	Transmission Distance		1～4 Port : 10/100/1000Mbps:0 ~ 100m;
			Uplink port:0~100m
	Transmission Medium		Cat5/5e/6 standard network cable
Network Switch	Network Standard		IEEE 802.3, IEEE 802.3u,IEEE 802.1ab, IEEE 802.3x
	Switching Capacity		12Gbps
	Packet Forwarding Rate		8.93Mpps
	MAC Table		2K
Power Over Ethernet	POE Standard		IEEE 802.3af; IEEE 802.3at (PSE/PD)
	POE Power Supply Type		End-Span(1/2+;3/6-)
	PoE Power Consumption		af≤15.4W; at≤30W (every port)
LED Status Indicator VLAN/Extend	POE Ethernet LED Indicator		Power: 1 red light indicates that the power normal work
			POE: 4 yellow lights indicate that the POE is power on
			Ethernet: 6 green lights indicate that the Ethernet link and act;
Environmental	Working temperature		0℃~55℃
	Relative Humidity		20~95%
	Storage temperature		-20℃~70℃
Mechanical	Dimension (L×W×H)		201 mm 120 mm 41mm
	Color		Black
	Weight		609.2g
Stability	MTBF		>30000h
