120W 4 ports POE switch 1G 1 Uplink 1 SFP

Home / Products / IP Transmission / 1000Mbps POE Ethernet Switch / Detail

120W 4 ports POE switch 1G 1 Uplink 1 SFP

● 6 ports switch with 4 ports 1000Mbit PoE, 1 Gigabit Uplink Port,1 SFP Port

● PoE data & power transmission distance 100meters

● Uplink port:1 Gigabit Ethernet port,Transmission Distance up to 100m 1 Gigabit Fiber Ports,Data transmission:depends on the optical module

● Maximum 30 watts power for each PoE port

● PoE Standard: IEEE 802.3af, IEEE 802.3at

● PoE Pin: 1/2+,3/6-

●Total Power:52V2.3A 120W

Description of this 15.4W 30W 4 PoE Port 1 Gigabit Uplink Port 1 SFP Port Switch

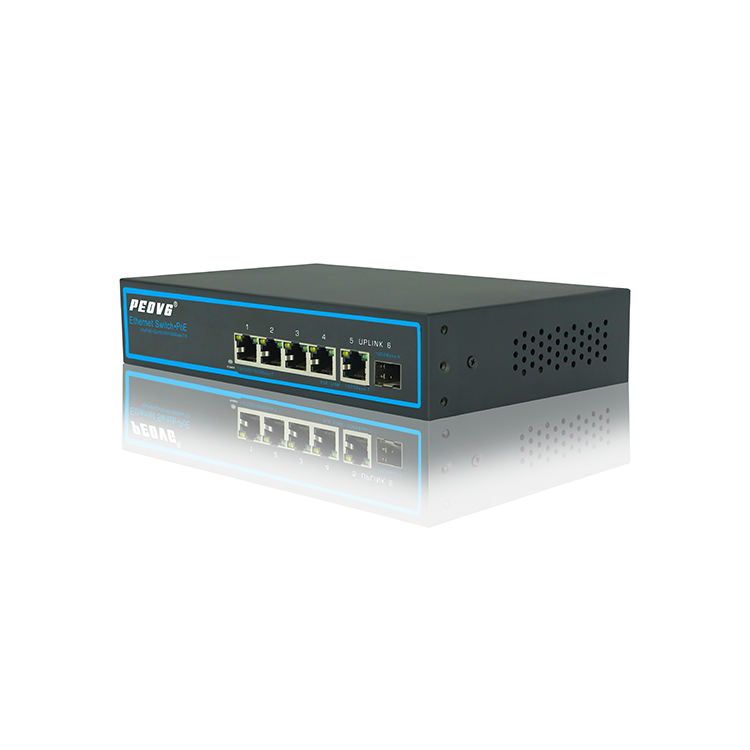

G10402EXPOE-BP120 is a compact 6 Ports Full Gigabit PoE Switch, it is specially designed for the application of high definition network security surveillance system.

The PoE switch provides 4 Gigabit downlink PoE ports support 802.3af/at and 1 Gigabit uplink port, and 1 SPF Port.The total PoE power output is up to 120 watts. It’s widely used in surveillance monitor and Ethernet network solution.

Specification of this 15.4W 30W 4 PoE Port 1 Gigabit Uplink Port 1 SFP Port Switch

Item		Description
Power	Power Adapter	110-240V AC
Power	Consumption	120W
Network Connector	Network Port	1～4 Port : 10/100/1000Mbps 1～4:POE Ethernet port
	Network Port	Uplink Port : one Ethernet 1000Mbps one SFP 1000Mbps
	Transmission DistanceAA	1～4 Port : 0 ~ 100m;
	Transmission DistanceAA	SFP: depends on the optical module
	Transmission Medium	Cat5/5e/6 standard network cable
Network Switch	Network Standard	IEEE 802.1Q, IEEE 802.1u,IEEE 802.1x, IEEE 802.3ab
	Switching Capacity	12Gbps
	Packet Forwarding	8.93Mpps
	MAC Table	2K
Power Over Ethernet	POE Standard	IEEE 802.3af/at(PSE/PD)
	POE Power Supply	End-Span(1/2+;3/6-)
	PoE Power	af≤15.4w; at≤30w(every port)
LED Status Indicator VLAN/Extend	POE Ethernet LED Indicator	Power: 1 red light indicates that the power normal work
		POE: 4 yellow lights indicate that the POE is power on
		Ethernet: 6 green lights indicate that the Ethernet link and act;
Environmental	Working temperature	0℃~55℃
	Relative Humidity	20~95%
	Storage temperature	-20℃~70℃
Mechanical	Dimension (L×W×H)	201 mm 120 mm 41mm
	Color	Black
	Weight	609.2g
Stability	MTBF	>30000h
