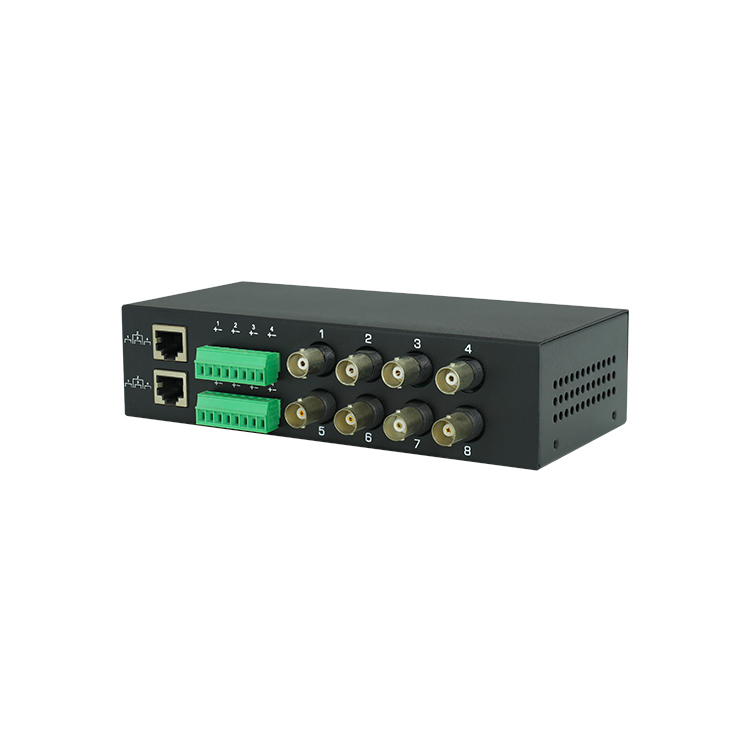

passive 8 ch HD AHD CVI TVI Video balun

 ●Model number: TT208P-HD
●Color HD video up to 600m with active receiver
●Color HD video transmission distance with passive transceiver:
●HDCVI 720P: 400M / 1080P: 250M; 4Mp:200M ;5Mp:200M; 8MP: 180M
●HDTVI 720P/1080P: 250M; 5Mp:200M ;8MP: 180M
●AHD 720P: 350M / 1080P: 200M;5Mp:200M; 8MP: 180M
●Built in TVS surge protection,metal shell
Description of this passive 8 ch HD AHD CVI TVI Video balun

The TT-208P-HD video balun hub is a passive (non-amplified) device that allows the transmission of real-time CCTV HD video signal via cost-effective Unshielded Twisted Paired (UTP) cable. Baseband (composite) signals of any type are supported.

TT-208P-HD supports pluggable screw terminal or RJ45 connections. Used with single channel HD passive video transmitter, it is capable to receive 8 channel live CCTV HD video signal from camera end via one UTP cable.

The superior interference rejection and low emissions of the TT-208P-HD allow video signals to coexist in the same wire bundle as telephone, datacom, or low-voltage power circuit. This allows the use of a shared or existing ccable plant. The TT-208P-HD is built-in surge suppressor to protect video equipment against damaging voltage spikes and provide noise immunity to ensure quality signals without disturbing "hum-bars".

Specification of this passive 8 ch HD AHD CVI TVI Video balun

Model TT-208P-HD
Properties
Transmission Signal8 8 channel
Transmission Distance (Max) HDCVI 720P: 400M / 1080P: 250M; 4MP:200M ; 4K/8MP: 180M(Max)
HDTVI 720P/1080P: 250M; 5MP:200M ; 4K/8MP: 180M(Max)
AHD 720P: 350M / 1080P: 200M; 5MP:200M; 4K/8MP: 180M(Max)
Video Transmission Properties And Port
 Video Connector BNC-F
UTP Cable Connector 8 pin green terminal block, RJ-45
Compatible Format HDCVI, HDTVI, AHD, CVBS
Resolution 720P/1080P/4MP/5MP/8MP 4K
Anti-interference >60db
Protection
ESD Contact discharge:6000V  Air discharge:8000V
Per: IEC61000-4-2
Video Connector Protection 2KV(common mode) Per: IEC61000-4-5
UTP Cable Connector 2KV(different-code),4KV(common-code),Per:IEC61000-4-5
Physical Properties
Shell ABS
Color Black
N.W. 558G
Stability
MTBF >10000H
Environmental
Operating Temperature -10~55℃
Storage Temperature -20~70℃
Humidity 0~95%(non-condensing)

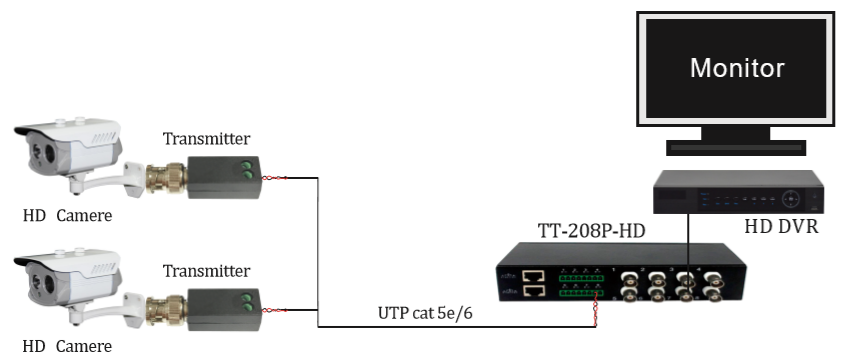

Application of this 8 channels Passive HD UTP Video Transceiver
