●Model number: TT204P-HD
●Color HD video up to 600m with active receiver
●Color HD video transmission distance with passive transceiver:
●HDCVI 720P: 400M / 1080P: 250M; 4Mp:200M ;5Mp:200M; 8MP: 180M
●HDTVI 720P/1080P: 250M; 5Mp:200M ;8MP: 180M
●AHD 720P: 350M / 1080P: 200M;5Mp:200M; 8MP: 180M
●Built in TVS surge protection,metal shell

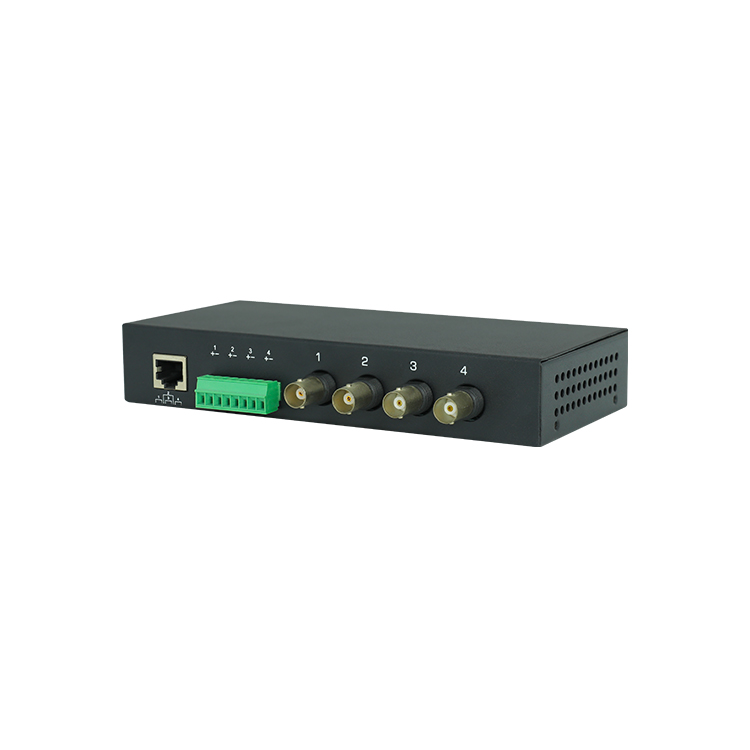

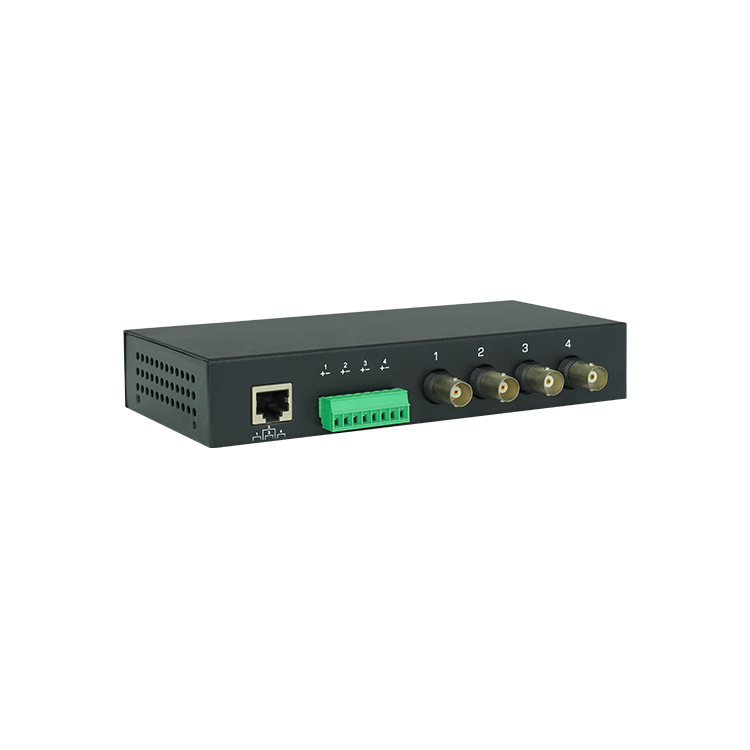

TT-204P-HD supports pluggable screw terminal or RJ45 connections. Used with single channel HD passive video transmitter, it is capable to receive 4 channel live CCTV HD video signal from camera end via one UTP cable.
The superior interference rejection and low emissions of the TT-204P-HD allow video signals to coexist in the same wire bundle as telephone, datacom, or low-voltage power circuit. This allows the use of a shared or existing ccable plant. The TT-204P-HD is built-in surge suppressor to protect video equipment against damaging voltage spikes and provide noise immunity to ensure quality signals without disturbing "hum-bars".
Model | TT-204P-HD |
Properties | |
Transmission Signal | 4 channel |
Transmission Distance (Max) | HDCVI 720P: 400M / 1080P: 250M; 4MP:200M ; 4K/8MP: 180M(Max) |
HDTVI 720P/1080P: 250M; 5MP:200M ; 4K/8MP: 180M(Max) | |
AHD 720P: 350M / 1080P: 200M; 5MP:200M; 4K/8MP: 180M(Max) | |
Video Transmission Properties And Port | |
Video Connector | BNC-F |
UTP Cable Connector | 8 pin green terminal block, RJ-45 |
Compatible Format | HDCVI, HDTVI, AHD, CVBS |
Resolution | 720P/1080P/4MP/5MP/8MP 4K |
Anti-interference | >60db |
Protection | |
ESD | Contact discharge:6000V Air discharge:8000V Per: IEC61000-4-2 |
Video Connector Protection | 2KV(common mode) Per: IEC61000-4-5 |
UTP Cable Connector | 2KV(different-code),4KV(common-code),Per:IEC61000-4-5 |
Physical Properties | |
Shell | ABS |
Color | Black |
N.W. | 558G |
Stability | |
MTBF | >10000H |
Environmental | |
Operating Temperature | -10~55℃ |
Storage Temperature | -20~70℃ |
Humidity | 0~95%(non-condensing) |
