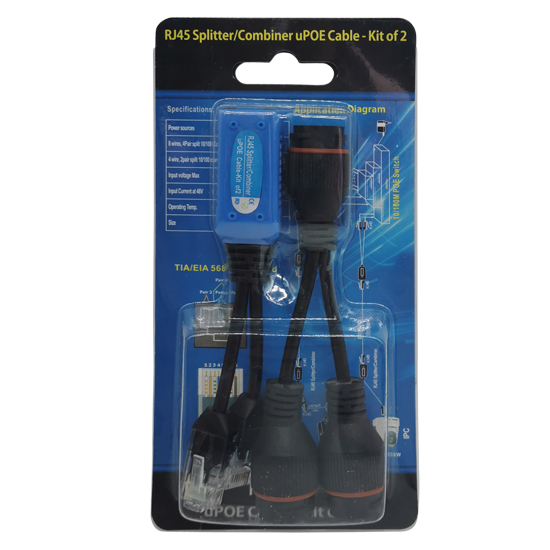

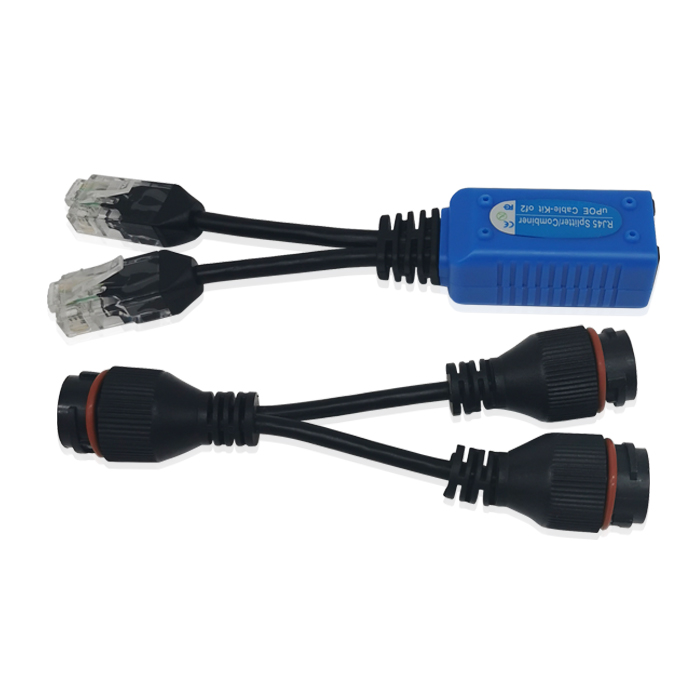

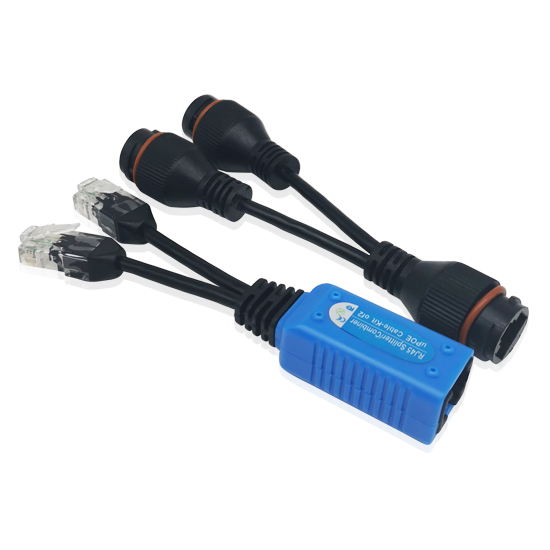

Description of this UTP saving waterproof RJ45 POE combiner splitter

The RJ45 Splitter/Combiner devices (ISP01,ISP02,ISP03,ISP04,ISP05) has two usages in different applications.

Advantages of Rj45 Splitter/Combiner:

> With RJ45 Splitter/Combiner devices,two Cameras needs only one UTP Cable to transmit Power and Data,meanwhile it greatly improves the ease of installation as well.
> Total Transmission Distance from Switches to Camera is 100M or according to the transmission distance of the Switches,so the distance of each device can be made by installers' own plan.
> When Terminal is Standard PoE Switch (PoE Pin: 1/2+, 3/6-), the Front-end should be Standard PoE IP Camera. When Terminal is Network Switch, the Front-end should be Non-PoE IP Camera.
> Transmission cable can be CAT5, CAT5E, CAT6, the transmission distance is not limited by Cable
>  Waterproof for wet place

Specification:
Power sources: PoE Switch or Injector
8 wires,4 pairs split 10/100 connector: Female RJ45
4 wires,2 pairs split 10/100 connector: Male RJ45 with 1&2 and 3&d
Input Voltage max: up to 57V
Input current at 48V: 65Ma per pair-60 Watts total
Operating Temp.: 0~50 degree centigrade
Size: 125mm cable lengths
Weight:57-67g
