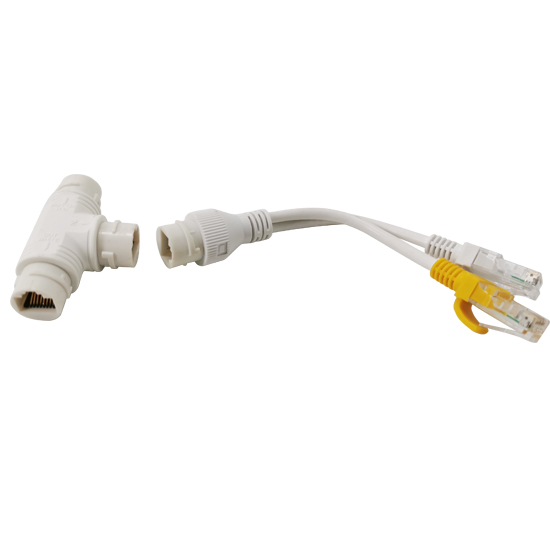

New arriving RJ45 POE combiner splitter
Model:ISP05
It can combine two 30W PoE into one uPOE 60W
It can save the cost of UTP Cable, which is transmitting two Ports over one UTP Cable
Description of this New arriving RJ45 POE combiner splitter
The RJ45 Splitter/Combiner devices (ISP01,ISP02,ISP03,ISP04,ISP05) has two usages in different applications.
> Total Transmission Distance from Switches to Camera is 100M or according to the transmission distance of the Switches,so the distance of each device can be made by installers' own plan.
> When Terminal is Standard PoE Switch (PoE Pin: 1/2+, 3/6-), the Front-end should be Standard PoE IP Camera. When Terminal is Network Switch, the Front-end should be Non-PoE IP Camera.
> Transmission cable can be CAT5, CAT5E, CAT6, the transmission distance is not limited by Cable
Specification:
Power sources: PoE Switch or Injector
8 wires,4 pairs split 10/100 connector: Female RJ45
4 wires,2 pairs split 10/100 connector: Male RJ45 with 1&2 and 3&d
Input Voltage max: up to 57V
Input current at 48V: 65Ma per pair-60 Watts total
Operating Temp.: 0~50 degree centigrade
Size: 125mm cable lengths
Weight:57-67g
The RJ45 Splitter/Combiner devices (ISP01,ISP02,ISP03,ISP04,ISP05) has two usages in different applications.
Advantages of Rj45 Splitter/Combiner:
> With RJ45 Splitter/Combiner devices,two Cameras needs only one UTP Cable to transmit Power and Data,meanwhile it greatly improves the ease of installation as well.> Total Transmission Distance from Switches to Camera is 100M or according to the transmission distance of the Switches,so the distance of each device can be made by installers' own plan.
> When Terminal is Standard PoE Switch (PoE Pin: 1/2+, 3/6-), the Front-end should be Standard PoE IP Camera. When Terminal is Network Switch, the Front-end should be Non-PoE IP Camera.
> Transmission cable can be CAT5, CAT5E, CAT6, the transmission distance is not limited by Cable
Specification:
Power sources: PoE Switch or Injector
8 wires,4 pairs split 10/100 connector: Female RJ45
4 wires,2 pairs split 10/100 connector: Male RJ45 with 1&2 and 3&d
Input Voltage max: up to 57V
Input current at 48V: 65Ma per pair-60 Watts total
Operating Temp.: 0~50 degree centigrade
Size: 125mm cable lengths
Weight:57-67g
