TT-DG102 HD 4K Video Transceiver
Home / Products / Cost-Effective Video Balun / Existing Solution / Detail

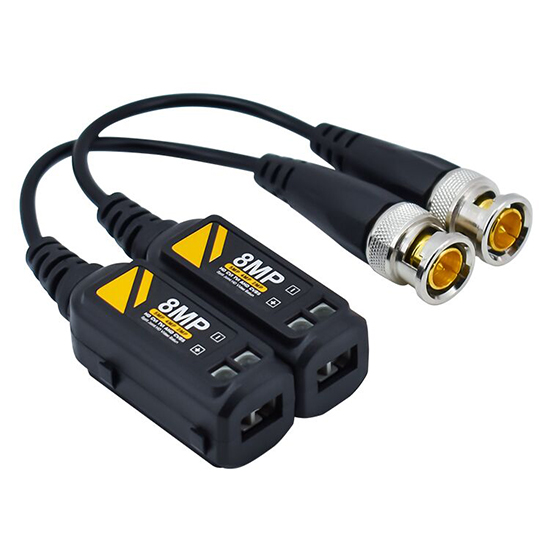

TT-DG102 HD 4K Video Transceiver
* Screw terminal,1 channel passive HD Balun for TVI/CVI/AHD/CVBS
* Color HD video up to 500m with active receiver
* Color HD video transmission distance with passive transceiver(Max):
HDCVI 720P: 400M; 1080P: 250M; 4MP:200M; 6MP: 200M; 4K/8MP: 150M
HDTVI 720P/1080P: 250M; 4MP/5MP:200M; 4K/8MP: 150M
AHD 720P: 350M; 1080P: 200M; 4MP/5MP:200M; 4K/8MP: 150M
* Without TVS surge protection
Description of this TT-DG102 HD 4K Video Transceiver:
The TT-DG102 video balun is a passive (non-amplified) device that allows the transmission of real-time CCTV HD signal via cost-effective Unshielded Twisted Paired (UTP) cable. It is compatible with all HD-TVI/HD-CVI/AHD and CVBS analog cameras.
It has a mini-coax pigtail lead which allows quick mounting onto fixed cameras, allows in-camera mounting in most dome cameras and allows flexible connection with DVR. Reliable Screw terminals block connection, it eliminates costly and bulky coaxial cable.
The TT-DG102 video balun is a passive (non-amplified) device that allows the transmission of real-time CCTV HD signal via cost-effective Unshielded Twisted Paired (UTP) cable. It is compatible with all HD-TVI/HD-CVI/AHD and CVBS analog cameras.
It has a mini-coax pigtail lead which allows quick mounting onto fixed cameras, allows in-camera mounting in most dome cameras and allows flexible connection with DVR. Reliable Screw terminals block connection, it eliminates costly and bulky coaxial cable.
