Description:

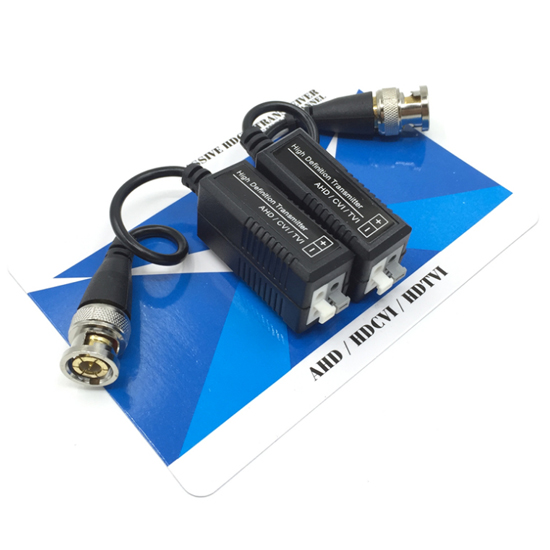

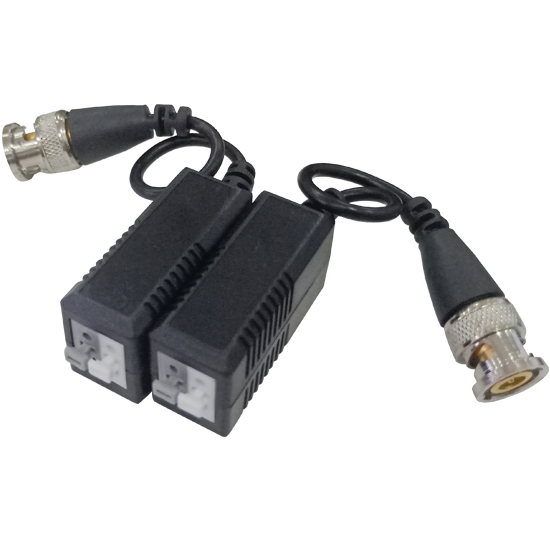

CA03 video balun is a passive (non-amplified) device that allows the transmission of real-time CCTV HD video signal via cost-effective Unshielded Twisted Paired (UTP) cable. The CA03 is compatible with all HD-TVI/HD-CVI/AHD and CVBS analog cameras.

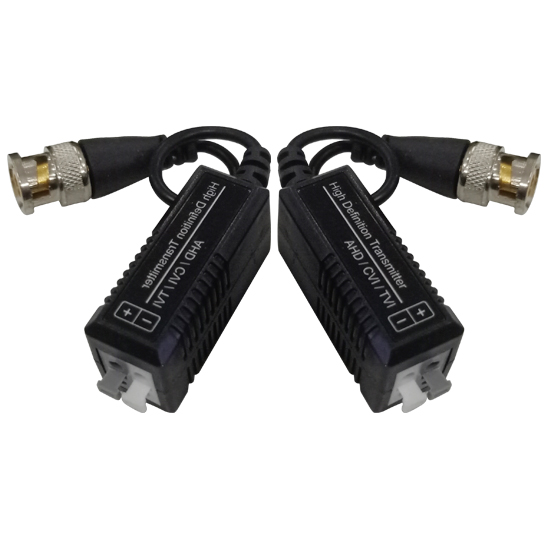

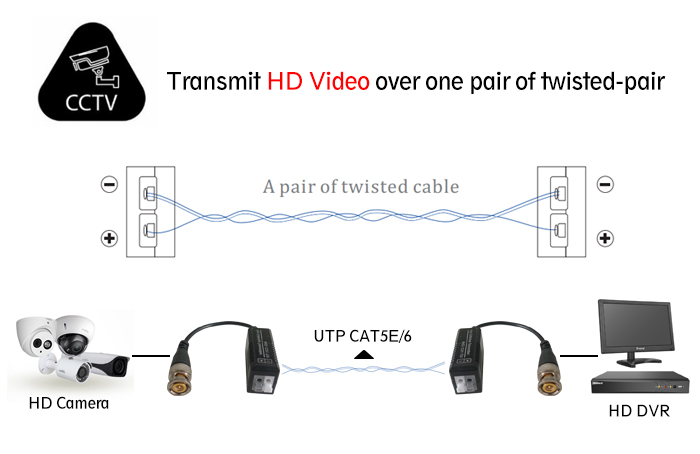

It has a mini-coax pigtail lead which allows quick mounting onto fixed cameras, allows in-camera mounting in most dome cameras and allows flexible connection with DVR. Push-pin terminal block allows tool-less connection of UTP cable output. Used in pairs, CA03 eliminates costly and bulky coaxial cable.

Specification:

Transmission Signal: 1 channel
Transmission Distance:
AHD:720P 300M/960P 300M/1080P:150M
HDCVI:720P 300M/1080P 150M
HDTVI:720P 200M/1080P 100M
Category Type: UTP CAT5/5E/6
Coaxial video connector: BNC-M

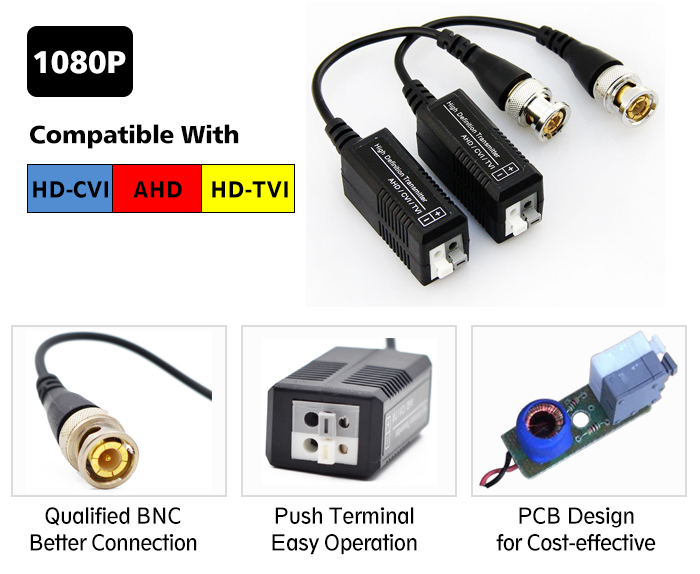

Twisted-pair video connector: Push-terminal
Compatible Format: AHD/HDCVI/HDTVI
Resolution: 720P/1080P
Anti-interference: >60dB
ESD:
1a contact discharge electricity level 3
1b air discharge electricity level 3
Per: IEC61000-4-2
Coaxial cable connector: 2KV(common-code) Per: IEC1000-4-5
UTP cable connector: 2KV(different-code), 4KV(common-code), Per: IEC1000-4-5
BNC male: 75 Ohms
UTP cable: 100 Ohms
MTBF: >10000H
Operating Temperature: -10-55℃
Storage Temperature: -20-70℃
