Single Channel HD PTZ Video Transform Filter
Home / Products / HD Transmission / Ground Loop Isolator / Detail

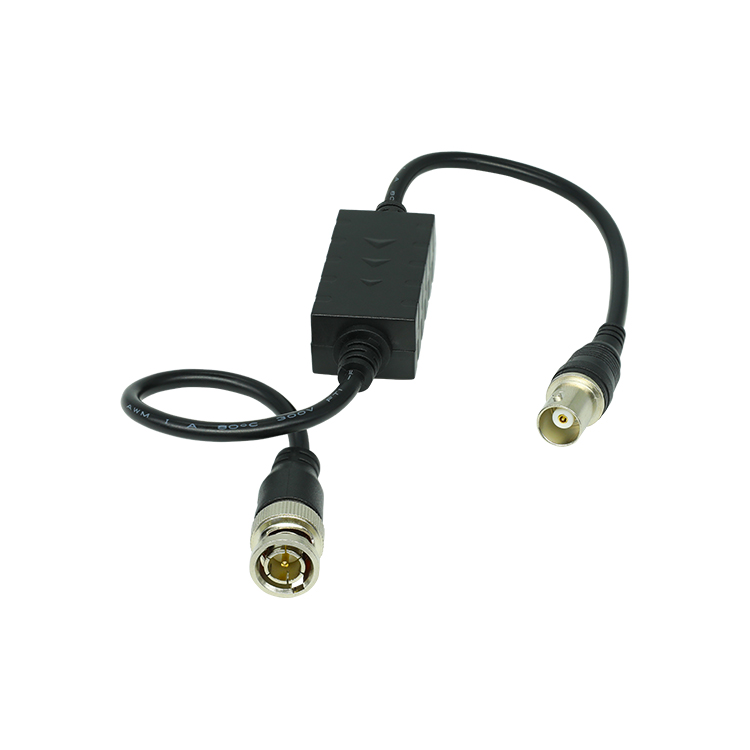

Single Channel HD PTZ Video Transform Filter
Support PTZ data control, 4K resolution
Protect HD video system from interference of electrical cable.
Eliminate problems as image tearing, cross-talk, rolling and so on.
Protect HD video system from interference of electrical cable.
Perfect work with DVR to immunity DVR interference.
Compact, simple for connection via BNC
Passive,no need power supply
Description of this Single Channel HD PTZ Video Transform Filter
The device is an HD video transform filter for HDCVI/TVI/AHD. It Built in a highly balanced mode of video transmission, which is immune to interference from these, and other sources of noise: Data signals,other video signals,nearby power,ringing telephones,fluorescent lights,and transformers.etc

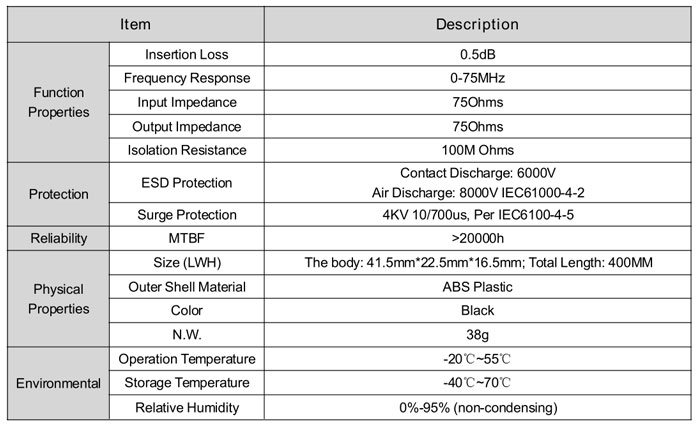

Specification:

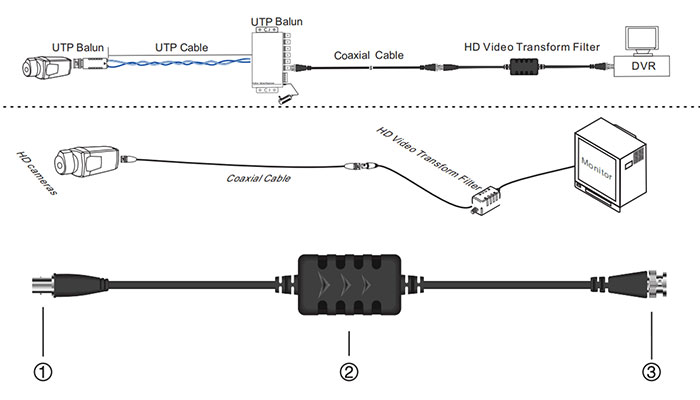

Diagram:
Please follow the next application steps:
1.Cut off power of HD Camera, HD DVR, monitor and other devices.
2.Connect an end of coaxial cable with BNC-F of the isolator.
3.Connect the other end of coaxial cable with HD camera or UTP Balun (Receiver).
4.Connect BNC-M of the isolator with the monitor or HD DVR
Troubleshooting:
If any trouble during application, please follow the next steps:
- Please check if it’s following the vendor’s manual
- Make sure if every BNC works well
- If the real transmission distance is not longer than the max distance
- Check if the cable is quality
- Replace the non working isolator with a new one
- If the trouble still exists, please contact your vendor
The device is an HD video transform filter for HDCVI/TVI/AHD. It Built in a highly balanced mode of video transmission, which is immune to interference from these, and other sources of noise: Data signals,other video signals,nearby power,ringing telephones,fluorescent lights,and transformers.etc
Specification:
Diagram:
Please follow the next application steps:
1.Cut off power of HD Camera, HD DVR, monitor and other devices.
2.Connect an end of coaxial cable with BNC-F of the isolator.
3.Connect the other end of coaxial cable with HD camera or UTP Balun (Receiver).
4.Connect BNC-M of the isolator with the monitor or HD DVR
Troubleshooting:
If any trouble during application, please follow the next steps:
- Please check if it’s following the vendor’s manual
- Make sure if every BNC works well
- If the real transmission distance is not longer than the max distance
- Check if the cable is quality
- Replace the non working isolator with a new one
- If the trouble still exists, please contact your vendor
