BNC Ground Loop Isolator HD system
Home / Products / HD Transmission / Ground Loop Isolator / Detail

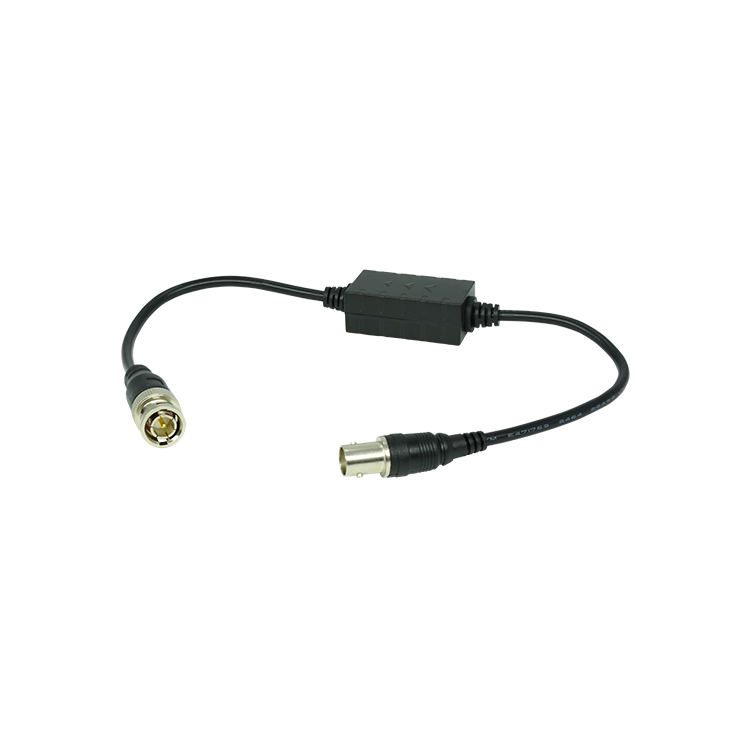

BNC Ground Loop Isolator HD system
Single Channel HD ground loop Isolator for HDCVI/TVI/AHD
Description of this BNC Ground Loop Isolator HD system
The product is a ground loop isolator for HD video. It can effectively eliminate interference like distortion,tearing, cross striation, striation, reticulate pattern and snowflake caused by earth potential difference.The isolatn voltage reaches 800V,it features super surge protection and can be widely usd in HD cctv video system.
Passive, no need for power supply.

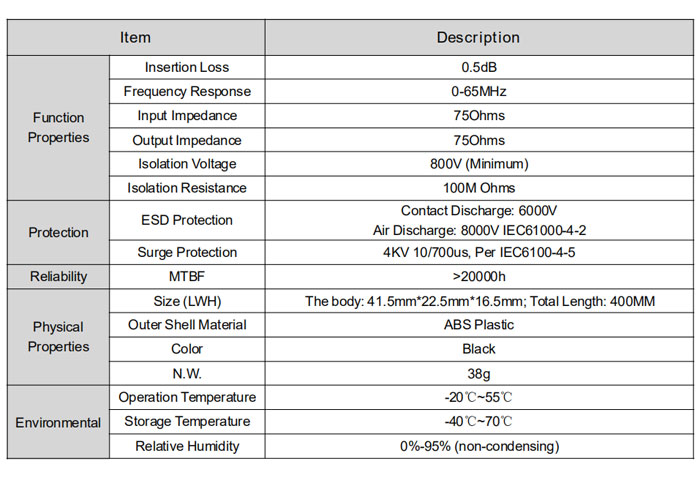

Specification:

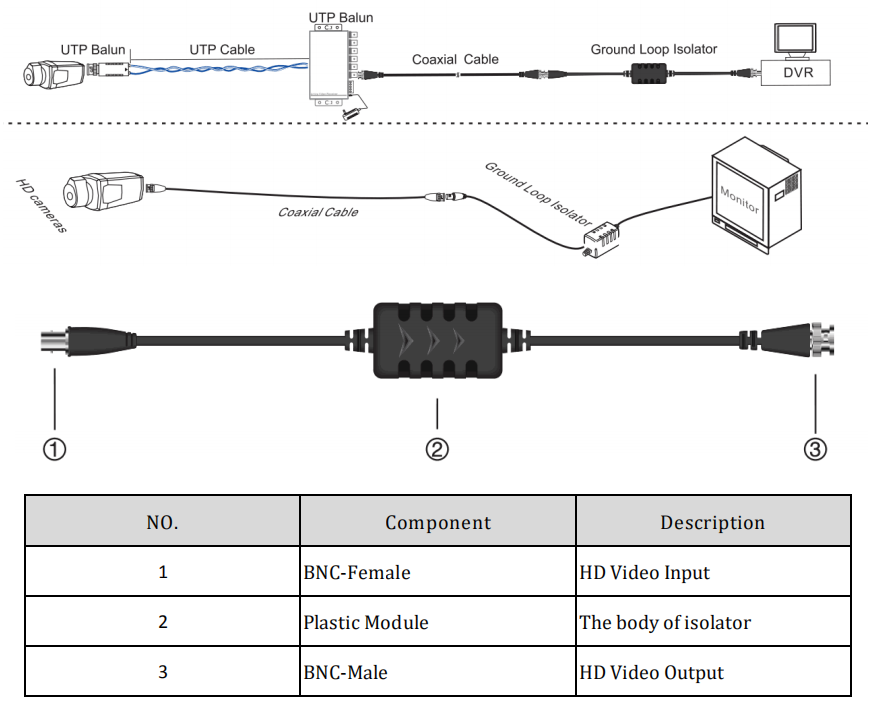

Please follow the next application steps:
1.Cut off power of HD Camera, HD DVR, monitor and other devices.
2.Connect an end of coaxial cable with BNC-F of the isolator.
3.Connect the other end of coaxial cable with HD camera or UTP Balun (Receiver).
4.Connect BNC-M of the isolator with the monitor or HD DVR.Built in TVS for surge protection
Troubleshooting:
If any trouble during application, please follow the next steps:
- Please check if it’s following the vendor’s manual
- Make sure if every BNC works well
- If the real transmission distance is not longer than the max distance
- Check if the cable is quality
- Replace the non working isolator with a new one
- If the trouble still exists, please contact your vendor
The product is a ground loop isolator for HD video. It can effectively eliminate interference like distortion,tearing, cross striation, striation, reticulate pattern and snowflake caused by earth potential difference.The isolatn voltage reaches 800V,it features super surge protection and can be widely usd in HD cctv video system.
Passive, no need for power supply.
The isolation voltage reaches 800V.
Eliminate image distortion,tearing,cross striation and snowflakecaused by ground loops.
Specification:
Please follow the next application steps:
1.Cut off power of HD Camera, HD DVR, monitor and other devices.
2.Connect an end of coaxial cable with BNC-F of the isolator.
3.Connect the other end of coaxial cable with HD camera or UTP Balun (Receiver).
4.Connect BNC-M of the isolator with the monitor or HD DVR.Built in TVS for surge protection
Troubleshooting:
If any trouble during application, please follow the next steps:
- Please check if it’s following the vendor’s manual
- Make sure if every BNC works well
- If the real transmission distance is not longer than the max distance
- Check if the cable is quality
- Replace the non working isolator with a new one
- If the trouble still exists, please contact your vendor
