Power HD Video Over Coaxial Cable POC

●Compatible with HDCVI/ HDTVI/ AHD/ CVBS
Input voltage: DC24-36V,output power to12VDC,Max 10W
Transmit instant video, no delay
Long transmission: 450m (720P)
1 cable for power & video transmission, no need to lay AC line and install power adapter to camera, reducing material cost
Built-in surge and transient protection, super interference rejection
Outer shell: with extend coaxial cable, easy to install with DVR.RG59,BNC

Description of this 1 Channel Power Video Over Coaxial Cable Support HD Cameras

301PV-HD is used to power security cameras with 12 VDC voltage over single coaxial cable and transmit/receiver the composite HD video signals from the cameras over the same 75 ohm coaxial cable (RG-59 or higher quality at a distance up to 450 m.

Monitoring side input 24-36VDC wide voltage power supply,plug and play,easy to install,lt is ideal for monitoring areas where no power is available to operate a camera.

For many years, we have focused on manufacturing and supplying1 Channel Power video receiver.Our team regards quality and service as the life and death line of the company.Our Coaxial Power video receiver is sold to all continents and dozens of countries around the world.We hope that our products and services will satisfy you, and we hope that we can establish a long-term cooperative relationship.I hope to get your inquiry about High Quality 1 Channel Coaxial Power hd video transmission receiver for sale.


Specification of this 1 Channel Power Video Over Coaxial Cable Support HD Cameras

Item:301PV-HD

Description







Function

Channels

1 Channel

HD Video Transmission

Distance

720P/1080P: 450m(Max)



Power Transmission Distance

Input Voltage

DC 24V

DC 36V

Distance(75-5)

0-100M

100-300M

300-450M

0-450M

Output(Max)

DC12V 6W

DC12V 3.5W

DC12V 3W

DC12V 7W





Video Transmission Properties and port

Category Type

Coax 75-5/75-3

Coaxial Video

Connector

BNC-M

Connecting Way

BNC

Compatible Format

HDCVI/HDTVI/AHD/CVBS

Resolution

720P/1080P/2K

Anti-interference

>60db









Protection



ESD

1a contact discharge Level 3

1b air discharge Level 3

Per: IEC61000-4-2

Coaxial cable

connector

2KV(common-code) Per:IEC1000-4-5

UTP Cable connector

2KV(Different Mode) 4KV(Common Mode)

Per: IEC61000-4-5

Impedance

Coax

75 ohms

Stability

MTBF

>10000H

Physical Properties

Outer Shell Material

ABS

Color

Black



Environmental

Operation Temperature

-10℃~55℃

Storage Temperature

-20℃~70℃

Relative Humidity

0%-95% (non-condensing)


Application of this 1 Channel Power Video Over Coaxial Cable Support HD Cameras

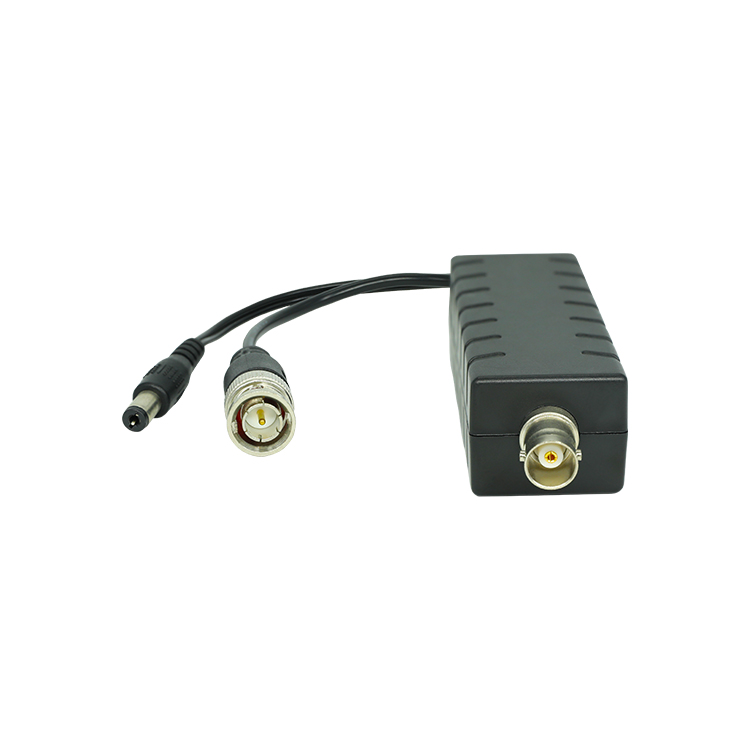

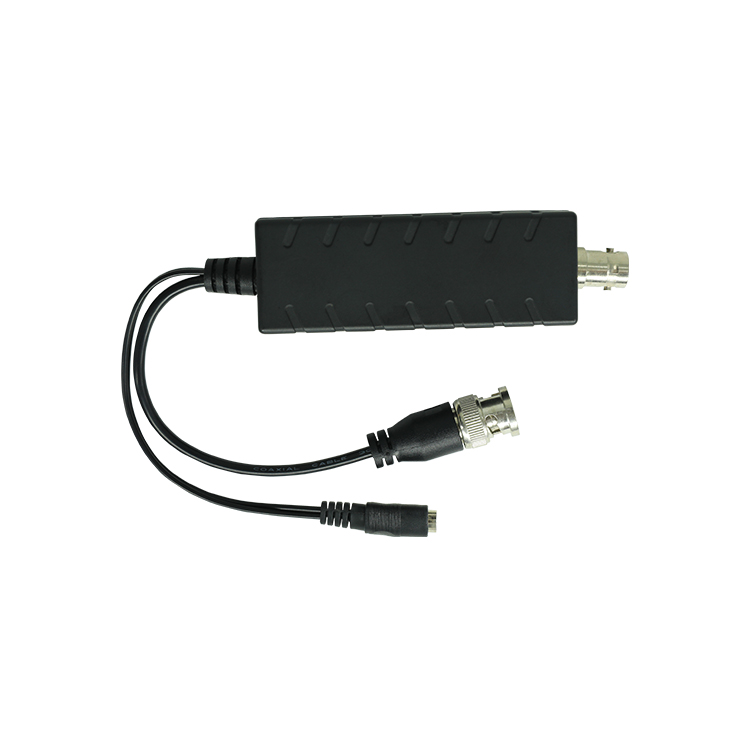

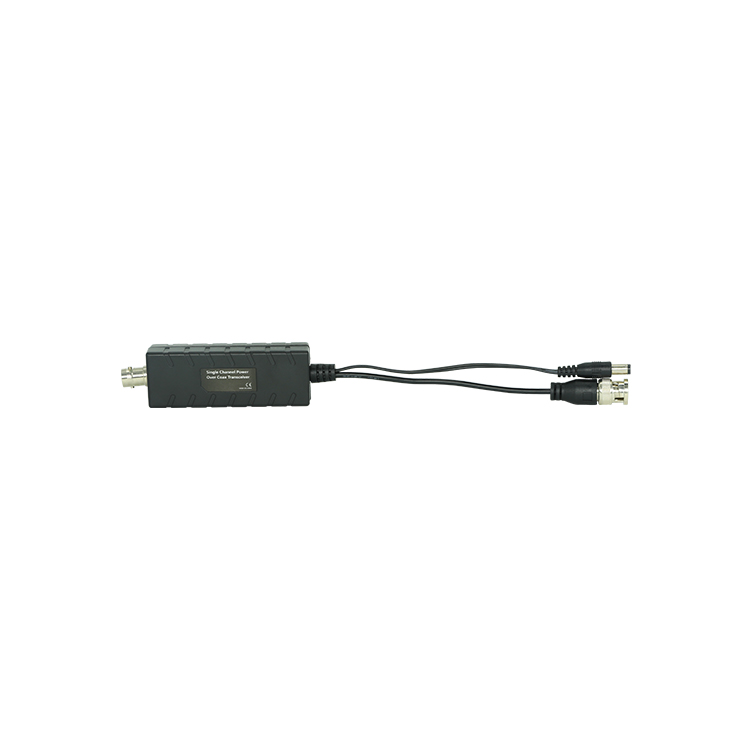

Pictures of this 1 Channel Power Video Over Coaxial Cable Support HD Cameras
