4 ch Power HD Video Over Coaxial Cable POC

●Model: 304PV-HD
●4 Channel HD POC receiver
●Compatible with HDCVI/ HDTVI/ AHD/ CVBS
●Transmit instant video, no delay
●Long transmission: 450m
●1 cable for power & video transmission, no need to lay AC line and install power adapter to camera, reducing material cost
●Built-in surge and transient protection, super interference rejection
●Input voltage: AC 100-240V , output power max to 12V DC,12W
Description of this 4ch HD Video Power over coax Transceiver for HD CVI TVI AHD

The device is used to power security cameras with 12VDC voltage over single coaxial cable and transmit / receive the composite HD video signals from the cameras over the same 75 ohm coaxial cable (RG-59 or higher quality) at a distance up to 450m. Monitoring side input AC 100-240V, plug and play, easy to install, it is ideal for monitoring areas where no power is available to operate a camera .

The CCTV Accessories Video Transmission Transceiver we manufacture has a good reputation both domestically and internationally.We have strong design capabilities and quality control capabilities to ensure the quality of our products.We are determined to be the best manufacturer and supplier of 4CH Hd Video Transceiver in China.Business is only the first step. I hope we can build a relationship of mutual trust and long-term cooperation with our customers.I believe that you will be satisfied with ourCCTV Accessories 4CH Hd Video Transmission Power Over Coax Transceiver For HD CVI TVI AHD.


Specification of this 4ch HD Video Power over coax Transceiver for HD CVI TVI AHD

Items

 Specification

Properties

Transmission signal

4 Channel

HD Video transmission

distance

720P/ 1080P:450m(Max)

Input voltage

AC 100-240V

Power transmission

distance

Distance(75-5)

0-450M

Output(max)

DC 12V 8W

Distance(75-4)

0-350M

Output(max)

DC 12V 7W

Distance(75-3)

0-250M

Output(max)

DC 12V 6W

Video

Properties

Category Type

Coax75-5 / 75-4 / 75-3

Coaxial Video Connector

BNC-M

Connecting Way

BNC

Compatible Format

HDCVI/ HDTVI/ AHD/ CVBS

Resolution

720P/1080P

Anti-interference

>60db

Protection

ESD

1a contact discharge electricity level 3

1b air discharge electricity level 3

Per:IEC61000-4-2

Coaxial Cable Connector

2KV(common-code) Per:IEC1000-4-5

Physical

Properties

Dimension(L*W*H)

25*15*4.5cm

Net Weight



Color

Black

Shell

 Mental

Stability

MTBF

>10000Hours

Environmental

Storage Temperature

-20~70℃

Operating Temperature

-10~55℃

Humidity

0-95%(Non-condensing)



Application of this 4ch HD Video Power over coax Transceiver for HD CVI TVI AHD

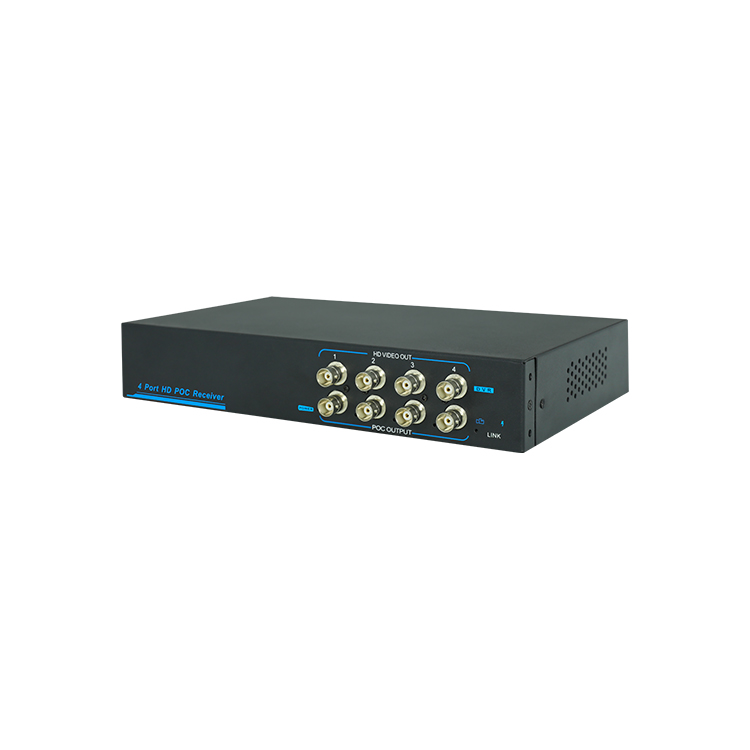

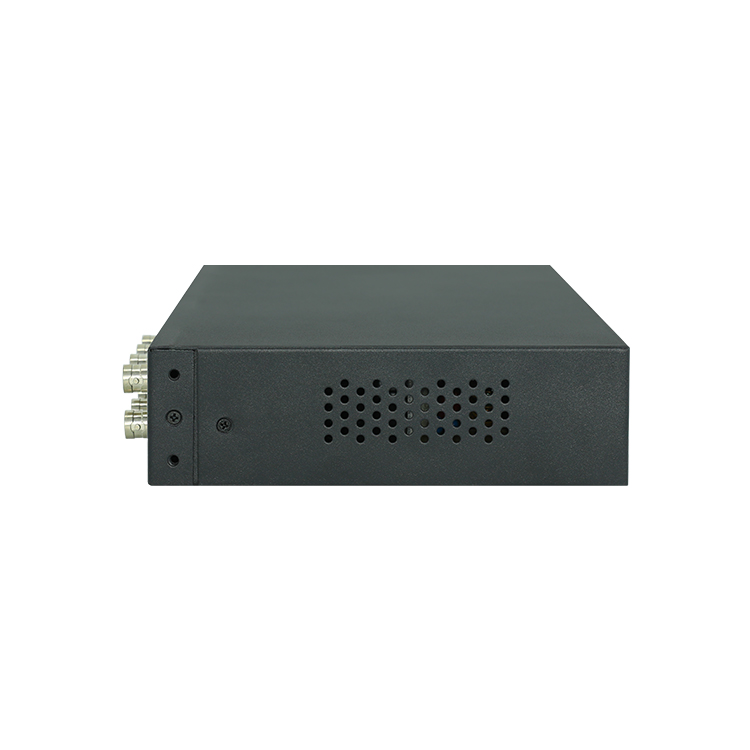

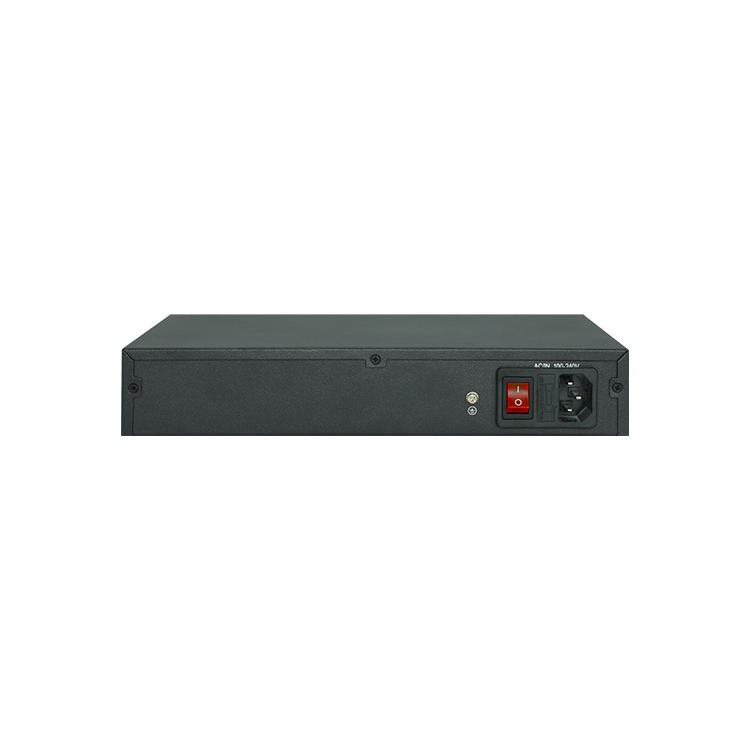

Picture of this 4ch HD Video Power over coax Transceiver for HD CVI TVI AHD
