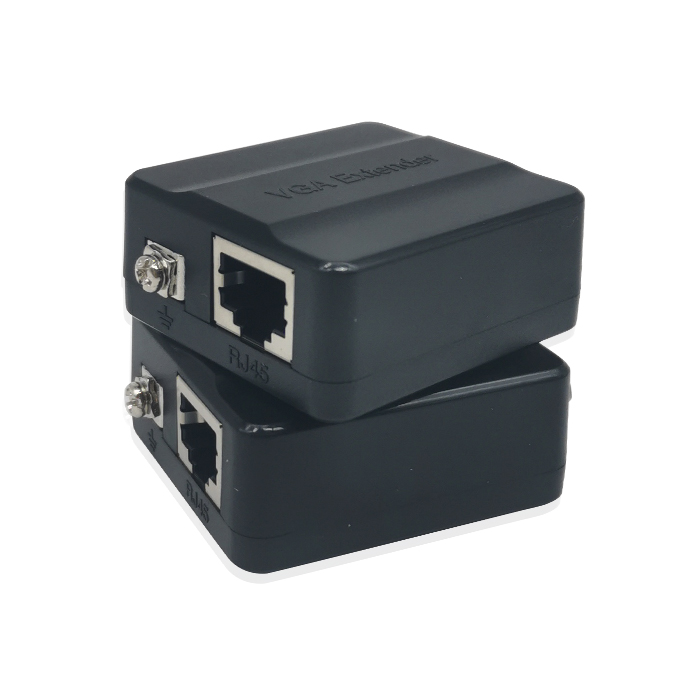

Passive 60M VGA extender

>Supports	resolutions	to	1920x1440
>Support IEEE standard 568B
>Support all kinds of computer system
>Support hard disk video recorder,monitor host and other equipment
>Pure physical hardware design
>Small, lightweight, no power required, easy operating and flexible in wiring
>Transmit up to 60M over single UTP CAT5e/6 Cable
 Description of this Passive 60M VGA extender

The VGA extender transmitter which is linked with main engine will convert the VGA signal to standard TCP/IP and transmit by internet.
The receiver which is connected with the display will convert the standard TCP/IP signal into VGA signal. In brief, extend the VGA signal 60 meters by a CAT-5e/6 cable.

>Supports resolutions to 1920x1440
>Support IEEE standard 568B
>Support all kinds of computer system
>Support hard disk video recorder, monitor host and other equipment
>Pure physical hardware design >Small, lightweight, no power required, easy operating and flexible in wiring
>Transmit up to 60M over single UTP CAT5e/6 Cable

Technical Specifications:

Signal: VGA, VESA VP&D 1.0, VIP ver 2.0
Bandwidth: DC to 60 MHZ Maximum Distance:
VGA: (640 x 480) 600ft.
SVGA : (800 x 600) 400ft.
XGA : (1024x768) 350ft.
WXGA : (1280x768) 250ft.
SXGA : (1280x1024) 250ft.
UXGA : (1600x1200) 200ft.
WUXGA: (1920x1200) 200ft. (Longer distances are possible but best quality is attained at shorter distances)
Maximum Video Input Level: 1.1Vp-pInsertion Loss per Pair of Baluns: Less than 3dB over frequency range.
Video Impedance:
Input: RGB 75Ω (HD15) Unbalanced.
Output: RGB 100Ω (RJ45 shielded) Balanced
Cable (UTP): CAT5e/6 24 Gauge or lower solid copper twisted pair.
Connectors: One (1) VGA (HD15) Female for Video, One (1) RJ45 jack General Specifications: Dimensions:
Size: 51*45*23mm
Out Shell: TTEX14 (Plastic Shell), TTEX15 (Iron Shell) Accessories: VGA cable
Operating Temperature: 0 °C to 55 °C

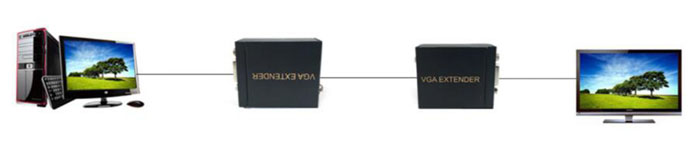

Diagram:
