100M VGA Audio CAT5 Extender
Home / Products / HDMI VGA Extender&Splitter / VGA Extender / Detail

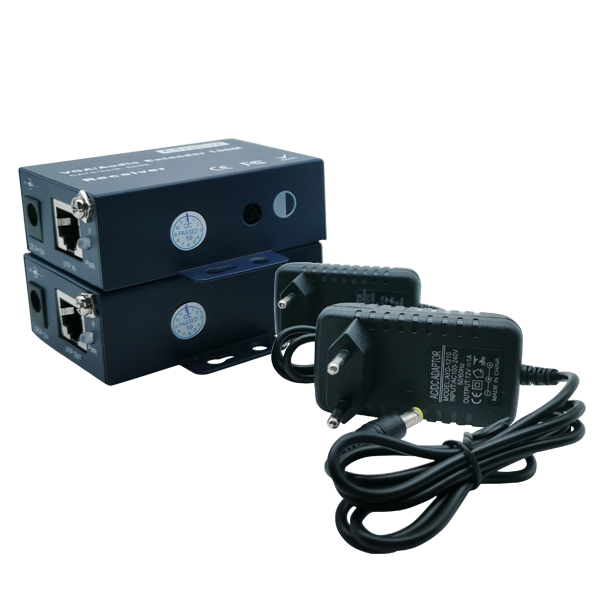

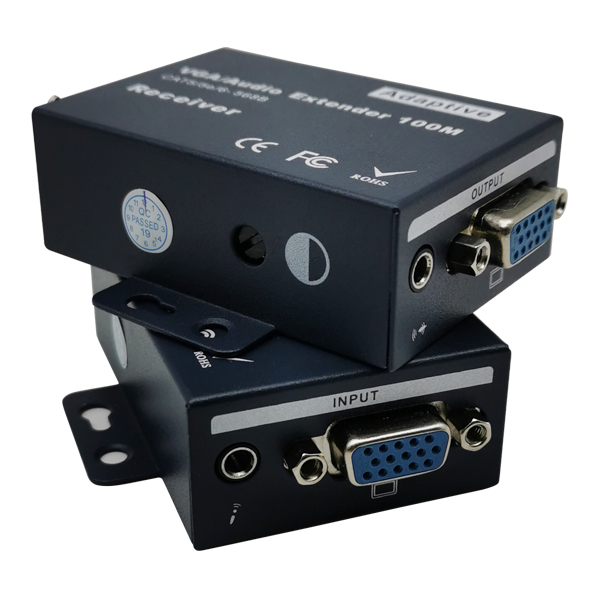

100M VGA Audio CAT5 Extender
> Ideal solution for digital signage applications
> Supports local and remote VGA monitors
> Supports resolutions to 1920x1440
> Sharpest and clearest VGA quality over CAT5/UTP-STP cable
> Built-in lightning and ESD surge protection
> Use in-house CAT5/5e/6 phone wiring to locate a monitor remotely
> Optional VESA mounting bracket is available for mounting the remote unit to the back of a flat panel monitor;
Description of this 100M VGA Audio CAT5 Extender
VGA Audio CAT5/UTP/STP Extender The 100M VGA Audio Extender transmits VGA video up to 1200 feet (100m) away from a computer using CAT5/5e/6 cable. Each video audio extender consists of a local unit that connects to a computer and also supplies video and audio to a local monitor, and a remote unit that connects to a monitor.
Specification:
>Host Connection
>Multiplatform support: Windows 2000/XP/Vista/Windows7/Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10. >Male/Female 15-pin HD connector for computer connection
>Optional stereo audio support - 3.5mm stereo plug
>Local Access
>Crisp and clear 1920x1440 video resolution
>Female 15-pin HD connector for local VGA monitor
>Optional stereo audio support - 3.5mm stereo jack. Remote Unit
>Supports resolutions up to 1920x1440; refer to the resolution chart below for resolutions at different lengths
>Female 15-pin HD connector
>Optional 3.5mm stereo audio connection
Video Quality Adjustment
>Video quality adjustment for different lengths of CAT5/5e/6 cable is done manually for the video-only extender, and automatically for audio/video extender
>Test Pattern for Cable Length Environmental
>Operating temperature: 32°F to 100°F (0°C to 38°C)
>Storage temperature: -20°F to 140°F (-30°C to 60°C)
>Operating and Storage Relative Humidity: 17 - 90% non-condensing RH
Dimensions:
>WxDxH (mm): 64*45*23mm(Sender)
64*45*23mm(Receiver)
>Weight(g):0.7KG
Power:
>220 or 110 VAC at 50 or 60 Hz via AC adapter (Included)
>Power Consumption: 6W (each - local and remote unit)
>Use the PWR-48V-9V0,6A or PWR-12V-9V0,6A DC-DC power converter to install the local unit in a Telecom environment

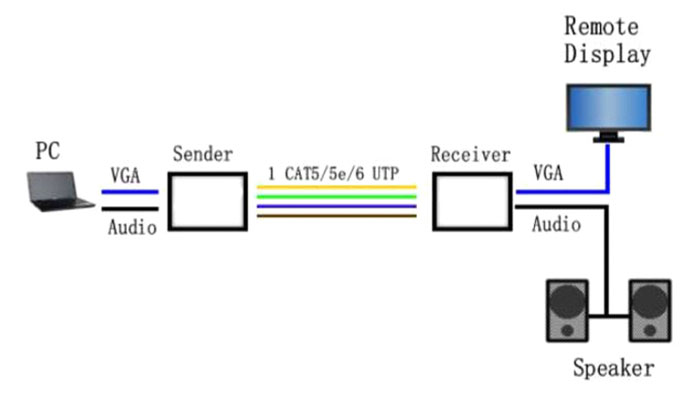

Diagram:
VGA Audio CAT5/UTP/STP Extender The 100M VGA Audio Extender transmits VGA video up to 1200 feet (100m) away from a computer using CAT5/5e/6 cable. Each video audio extender consists of a local unit that connects to a computer and also supplies video and audio to a local monitor, and a remote unit that connects to a monitor.
Specification:
>Host Connection
>Multiplatform support: Windows 2000/XP/Vista/Windows7/Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10. >Male/Female 15-pin HD connector for computer connection
>Optional stereo audio support - 3.5mm stereo plug
>Local Access
>Crisp and clear 1920x1440 video resolution
>Female 15-pin HD connector for local VGA monitor
>Optional stereo audio support - 3.5mm stereo jack. Remote Unit
>Supports resolutions up to 1920x1440; refer to the resolution chart below for resolutions at different lengths
>Female 15-pin HD connector
>Optional 3.5mm stereo audio connection
Video Quality Adjustment
>Video quality adjustment for different lengths of CAT5/5e/6 cable is done manually for the video-only extender, and automatically for audio/video extender
>Test Pattern for Cable Length Environmental
>Operating temperature: 32°F to 100°F (0°C to 38°C)
>Storage temperature: -20°F to 140°F (-30°C to 60°C)
>Operating and Storage Relative Humidity: 17 - 90% non-condensing RH
Dimensions:
>WxDxH (mm): 64*45*23mm(Sender)
64*45*23mm(Receiver)
>Weight(g):0.7KG
Power:
>220 or 110 VAC at 50 or 60 Hz via AC adapter (Included)
>Power Consumption: 6W (each - local and remote unit)
>Use the PWR-48V-9V0,6A or PWR-12V-9V0,6A DC-DC power converter to install the local unit in a Telecom environment
Diagram:
