723E-PSET PoE Injector is also called as Power over Ethernet mid-span devices. Single port PoE injector, that is PoE power supply module,is the most flexible and the hottest products among the power supply devices.

There are 2x RJ45 ports for these single-port PoE injectors, one of which is the Ethernet in Port for the uplink upper switches or other upper network devices, and another is PoE Out port used as the port for network data and power output.These single-port PoE injectors supply power with the spare line 1/2(+), 3/6(-) method or the data line 1/2(+), 3/6(-) pair method.

These single-port PoE injectors provide a simple,economical,high-performance and intelligent way for Ethernet PoE power supply and data communication.It’s ideal choice for those who need the superior quality project because of its simple use,easy to install,superior performance and cost-effective. They can supply power to HD webcam through Cat5 Ethernet cable, in order that make it more flexible for the places difficult to connect to power supply, and provide with more efficient solutions.



Item: 723E-PSET		Description
Interface	POE power supply	end-span : 1/2,3/6 data line pair(default); mid-span:4/5,7/8 spare line pair (can be customized)
	Input Voltage	AC100V~AC240V
	Data Input	1×RJ45
	PoE output	1×RJ45
PoE	PoE Power Supply Type	End-span
	PoE Power Output	<=60W
	Output Ripple	＜5%
	Power Pin Assignment	Pair： 1/2(+),3/6(-)
Ethernet Port	Communication Port	1×RJ45 Input
	TransmissionRate	10/100/1000Mbps
	Transmission Medium	Cat5/5e/6 Cable
	Protocols and Standards	IEEE 802.3i 10BASET IEEE 802.3u 100BASETX IEEE 802.3x Flow Control IEEE 802.1at DTE Power via MDI IEEE 802.3af/at
	Distance	100m (Max.)
Status	Power LED	1 (Blue)
	PoE LED	1 (Red)
Protection	Surge Protection	PoE Power：1KV(Differential Mode),2KV(Common Mode)1.2/50us，8/20us Ethernet：2KV(Differential Mode),6KV(Common Mode)10/7000us
	ESD	1a Contact discharge Level 3 Protection ESD 1b Air discharge Level Per: IEC61000-4-2
Environment	Working Temperature	-10℃~55℃
	Storage Temperature	-40℃~85℃
	Humidity(Non-condensing)	0~90%
Mechanics	Dimension(LxWxH)	160mm×64mm×60mm
	Material	ABS Plastics
	Color	Black
	Weight	350g

Application of this High Power 60W POE++ Gigabit POE Injector Single Port

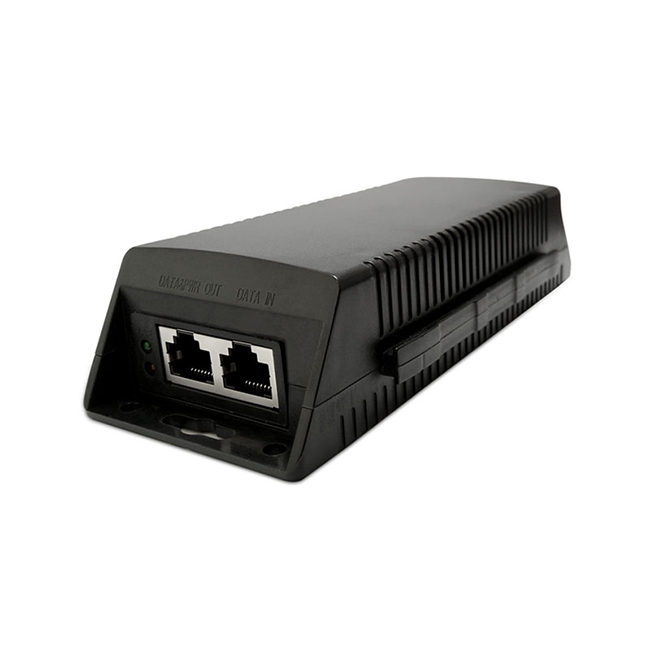

Pictures of this High Power 60W POE++ Gigabit POE Injector Single Port
